Chunking Ablation
The size of the pieces decides what the model gets to read.
ELI5 (Explain Like I'm 5)
- The Big Idea: Before documents go into the retrieval index they get cut into pieces. Cut small, and each piece is precise but may slice a fact in half. Cut big, and each piece keeps its context but retrieval drags in a haystack per needle — and the embedding model may not even read to the end of it.
- Analogy: Index cards vs. whole chapters. Ask a question and you can afford to pull a fixed stack of paper: eight index cards cover eight different leads; one chapter covers one lead, mostly padding — and the librarian who filed it only skimmed its first pages.
- Example: With the same ~1,600 tokens of retrieved context, 200-token chunks answer at F1 0.66 and 1,600-token chunks at F1 0.36 — and two-thirds of the answers in big chunks sit past the point where our embedding model stopped reading.
Key Insight
Before documents can be retrieved, they must be split into smaller passages — a step called chunking. This project is an ablation that varies the chunk size (200 vs. 800 vs. 1,600 tokens) and overlap, then measures how each choice changes a RAG system's answer quality.
Why This Matters
Chunk too small and a passage loses the context that makes it meaningful; chunk too large and retrieval drags in irrelevant text. Chunking is one of the quietest but highest-leverage knobs in a RAG pipeline.
What's in this directory
| File | Role |
|---|---|
chunking_ablation.py | Rebuilds full articles, re-chunks at five configs, evaluates each at an equal context budget |
python chunking_ablation.py # ~9 min on CPU
Reuses the retrieval stack from project 43. The 48 SQuAD articles are glued back into full documents (5k-9k tokens) and re-chunked by token windows. The crucial control: every config hands the reader the same ~1,600-token budget — eight 200-token chunks, two 800-token chunks, or one 1,600-token chunk — so this measures how to slice a fixed context spend, not who spends more. Ground truth is exact: a chunk counts as relevant only if it contains the gold answer span (char offsets mapped through the chunker).

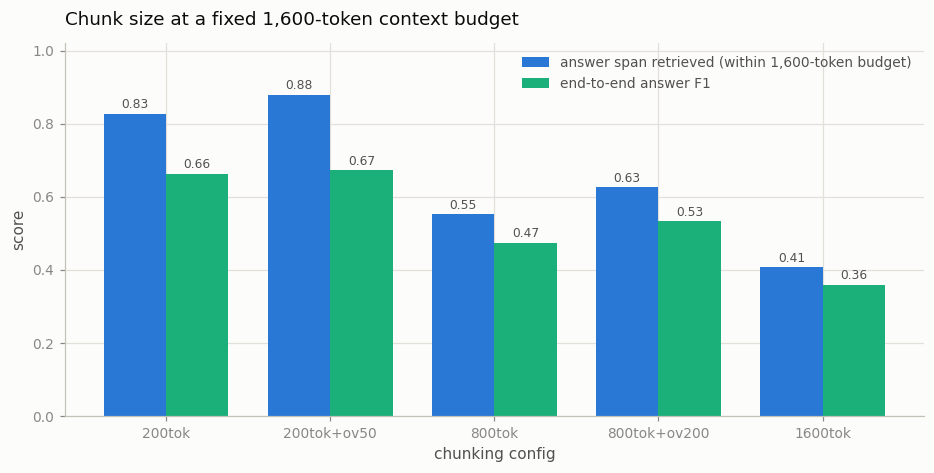

Results
Small chunks win at every stage, overlap helps at every size, and the 1,600-token config quietly loses two-thirds of its answers to embedder truncation.
config chunks ctx answer-retrieved nDCG@10 end-to-end F1
200tok 1672 8x200 0.827 0.676 0.663
200tok+ov50 2209 8x200 0.880 0.749 0.673
800tok 435 2x800 0.553 0.621 0.475
800tok+ov200 555 2x800 0.627 0.680 0.533
1600tok 232 1x1600 0.407 0.618 0.360
Three separate effects stack against big chunks:
- Fewer lottery tickets per budget. Eight small chunks are eight independent chances to cover the answer; one big chunk is a single bet.
- Diluted embeddings. A 1,600-token chunk about five subtopics has one 384-d vector that matches none of them sharply.
- The silent killer — encoder truncation. MiniLM reads at most 512 wordpieces. Measured directly: 64.7% of gold answers inside 1,600-token chunks sit past token 512 — the index has literally never seen the text that would answer the question, and no retrieval tuning can find what was never embedded.
Overlap is the cheap win: +5 points of answer-retrieval at 200 tokens (25% more index vectors), because a window boundary that slices a sentence in half now has a twin window where that sentence is whole.
Things to try
- Print the questions the 200-token config gets wrong but 800 gets right: they're mostly cases where the question's wording matches the paragraph's surrounding context rather than the answer sentence itself — the real argument for bigger (or structure-aware) chunks.
- Chunk on paragraph boundaries (split on
\n\n) instead of fixed token windows and compare — structure-aware chunking is what production systems actually do. - Raise
BUDGETto 3,200 tokens: the big-chunk configs recover some recall but F1 barely moves — the reader starts losing spans in the haystack.
