Single Attention Head

Attention is a weighted average where each token decides how much to listen to every earlier token.

ELI5 (Explain Like I'm 5)​

  • The Big Idea: Every token asks a question ("what am I looking for?" — its query) and every token wears a label ("here's what I am" — its key). A token looks at all the earlier tokens, sees whose label best matches its question, and pulls in a blend of their content (values), weighted by how good the match is. That blend is attention. A causal mask just forbids peeking at tokens that come later.
  • Analogy: It's a room where everyone holds up a name tag (key) and you hold a "who do I need?" note (query). You listen loudest to the people whose tag best matches your note, and you ignore anyone standing behind you in line (the mask).
  • Example: We implement the whole thing in a few lines, then check it matches PyTorch's optimized F.scaled_dot_product_attention to 5×10⁻⁷ — proof the hand-written formula is exactly what production kernels compute.

Key Insight​

A single attention head computes softmax(QKᵀ/√d)·V: it scores how well each token's query matches every token's key, turns those scores into weights with softmax, and mixes the values accordingly. A causal mask hides future positions so a token can only attend to itself and what came before.

Why This Matters​

This one operation is the heart of every transformer. Building it by hand and checking it against PyTorch's F.scaled_dot_product_attention turns the formula every modern LLM relies on from a mystery into something you can write from memory.

What's in this directory​

FileRole
attention.pyFrom-scratch scaled dot-product attention, a PyTorch equivalence check, and both figures
python attention.py      # ~20s on CPU

The whole operation, in a few lines​

scores  = q @ k.transpose(-2, -1) / d**0.5      # match every query to every key
scores  = scores.masked_fill(future_mask, -inf) # forbid attending to the future
weights = softmax(scores, dim=-1)               # normalize into a distribution
out     = weights @ v                           # weighted average of the values

Run against random inputs, this reproduces PyTorch's fused kernel exactly:

causal=False  max|mine - F.sdpa| = 5.07e-07  OK
causal=True   max|mine - F.sdpa| = 4.47e-07  OK

Results​

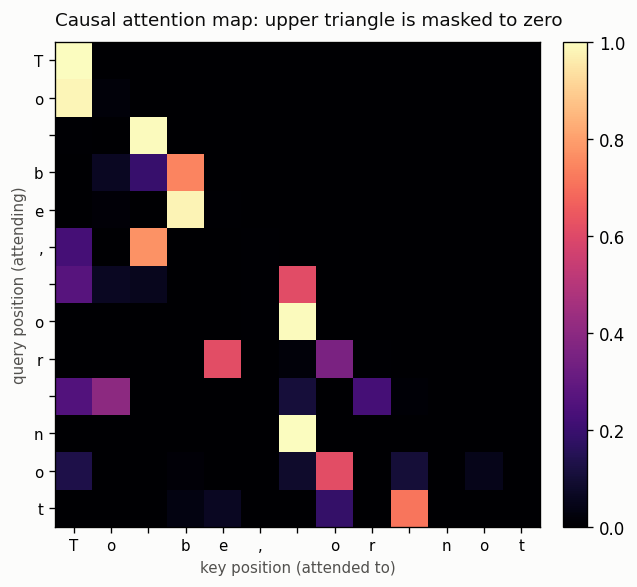

The causal attention map. Each row is a token deciding how much to attend to each column. The upper triangle is masked to zero — a token can only look at itself and earlier tokens, never the future:

Attention map

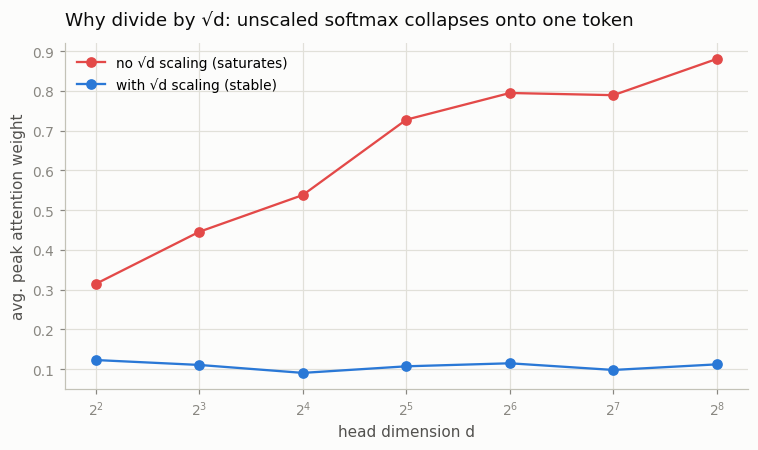

Why the /√d. Dot products of two random d-dimensional vectors have variance ≈ d, so without the scale the logits blow up as the head gets wider, softmax saturates onto a single token, and gradients vanish. Dividing by √d keeps the softmax spread out at every width:

Scale demo

at d=256:  peak attention weight  0.88 (unscaled)  vs  0.11 (scaled)

Without scaling, a width-256 head dumps ~88% of its attention on one token before training even starts — the softmax is saturated and can barely learn. The √d keeps it at a healthy ~11%.

Why this is the whole ballgame​

Everything else in the architecture — multiple heads, RoPE, GQA, the MLP — is scaffolding around this operation. Attention is the only place in a transformer where information moves between positions; the MLP just processes each position in isolation. Once you can write softmax(QKᵀ/√d)V from memory and know why every symbol is there, the transformer stops being a black box.

Things to try​

  • Remove the causal mask and watch the map fill its upper triangle — that's an encoder (BERT-style) attention pattern.
  • Feed the same token at two positions and confirm that, without any positional info, they produce identical queries — the motivation for RoPE.
  • Scale by 1/d instead of 1/√d and watch the softmax under-sharpen — the exponent really is 1/2.
