RoPE from Scratch

---

Encode position by spinning each token's vectors — and the angle between two tokens becomes their distance.

---

ELI5 (Explain Like I'm 5)

• The Big Idea: A transformer has no built-in sense of order — shuffle the words and attention gives the same answer. RoPE fixes that by spinning each token's query and key vectors by an angle set by its position. Token 5 is rotated more than token 2. Then, when two tokens compare, only the difference in their spins survives the dot product — so the model automatically feels how far apart they are, not where they sit absolutely.
• Analogy: Give everyone in line a clock, and advance the hands one tick per step down the line. When two people compare clocks, all that matters is the gap between their times — the same 3-tick gap looks identical whether they're near the front or the back. That gap is relative position.
• Example: We rotate a fixed pair of vectors at many positions and compute their attention score. Same distance apart → identical score every time (agreement to ~10⁻⁶), whether the tokens are at positions 5 and 3 or 100 and 98.

Key Insight

RoPE encodes a token's position by rotating its query and key vectors by an angle proportional to that position. Because rotations compose, the attention score between two tokens ends up depending only on their relative distance, not their absolute positions.

Why This Matters

RoPE is the default positional scheme in Llama, Mistral, Qwen, and DeepSeek. Implementing it — including the half-rotation trick — and confirming that ⟨q, k⟩ depends only on relative position makes the most widely used position embedding concrete rather than magical.

What's in this directory

File	Role
rope.py	RoPE with the half-rotation trick, the relative-position proof, and both figures

python rope.py      # ~15s on CPU

The half-rotation trick

A true 2D rotation mixes dimensions in pairs. RoPE implements this cheaply by pairing dimension i with dimension i + d/2 and using rotate_half:

def rotate_half(x):                       # [x1, x2] -> [-x2, x1]
    x1, x2 = x[..., :d//2], x[..., d//2:]
    return cat([-x2, x1], dim=-1)

x_rotated = x * cos + rotate_half(x) * sin   # rotate every pair by its angle

Each pair spins at its own frequency (fast for early dims, slow for late dims), exactly like the hands of a set of clocks running at different speeds.

Results

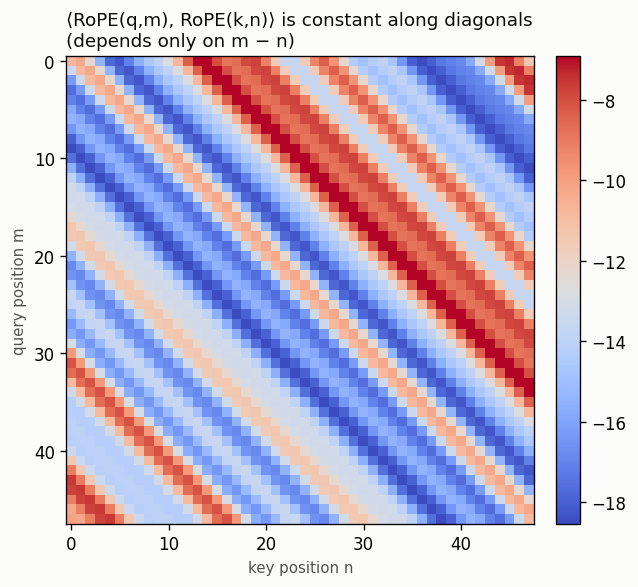

The dot product is Toeplitz — constant along every diagonal. That banding is the relative-position property: ⟨RoPE(q,m), RoPE(k,n)⟩ depends only on m − n, so equal offsets (same diagonal) give equal scores:

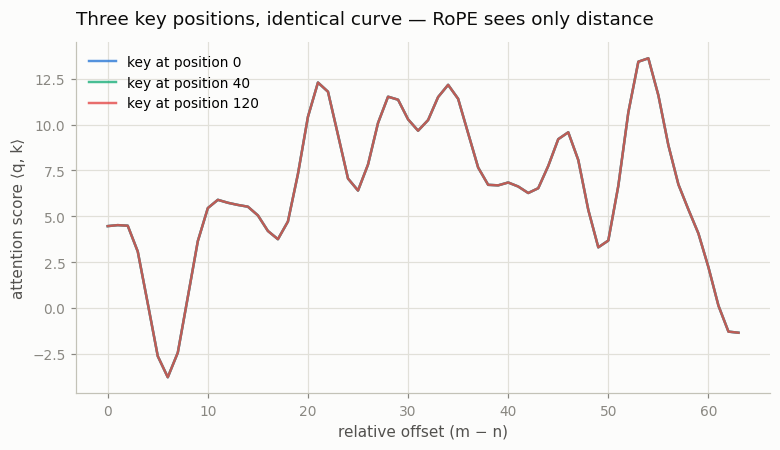

Three positions, one curve. We fix the content and place the key at positions 0, 40, and 120, sweeping the offset. The three curves land exactly on top of each other — RoPE genuinely cannot tell absolute position, only distance:

offset  2:  scores [-11.2493, -11.2493, -11.2493]   spread 1.9e-06
offset 20:  scores [ -8.9628,  -8.9628,  -8.9628]   spread 7.6e-06
max spread across absolute positions (same offset): 7.6e-06  → relative only

Why "relative, and it extrapolates" is the whole point

Because RoPE bakes position into the rotation rather than adding a learned per-position vector, it (a) needs no extra parameters, (b) gives every layer the relative-distance signal for free, and (c) is stretchable — you can rescale the angles after training to handle longer sequences than you trained on. That last property is exactly what project 13 exploits to turn a short-context model into a long-context one without retraining.

Things to try

• Change base from 10000 to 500000 (the Llama-3 long-context value) and watch the diagonals widen — lower frequencies reach further before wrapping.
• Shrink all the angles by a constant factor (position interpolation) and confirm the relative property still holds — the trick behind context extension.
• Rotate q and k by the same absolute angle and confirm their score is unchanged — a rotation applied to both cancels in the dot product.
