KV Cache from Scratch

---

The cheapest speedup is the work you don't repeat.

---

ELI5 (Explain Like I'm 5)

• The Big Idea: To write the 100th word of a sentence, a naive transformer re-reads the 99 words before it — from scratch, through every layer. The KV cache is a notepad: it writes down what the model worked out about each word the first time, so the 100th word costs the work of one word plus a glance at the notepad.
• Check correctness before speed: a cache that is fast and wrong is worthless, and the classic bug — forgetting that a cached token still needs to know where it sits in the sentence — produces fluent gibberish. So we first prove the cached model emits exactly the same tokens as the slow one.
• The twist: the cache removes 512x the arithmetic at a 512-token context but runs only ~4x faster on this CPU. The work it deleted was big, perfectly parallel matrix multiplication — the kind hardware is fastest at. Wasted parallel FLOPs are cheap; serial ones are expensive. That gap is why the rest of this phase exists.

Key Insight

This project adds a KV cache to a transformer decoder so each newly generated token reuses the keys and values already computed for earlier tokens instead of recomputing attention over the entire prefix, and measures the speedup against a naive recompute-every-step baseline.

Why This Matters

Without the cache, generating each new token re-reads the whole prompt — so cost grows with sequence length squared and inference crawls at long contexts. With it, decoding scales roughly linearly with sequence length, which is why the KV cache is the foundation every production serving engine is built on.

---

What's in this directory

File	Role
kv_lib.py	The cache (KVCache), a cached forward pass (forward_cached), and the two decoders (generate_naive, generate_cached). Also trains the shared 1.8M-param Shakespeare model that projects 61, 62 and 64 reuse.
kvcache.py	Proves the cache is exact, then measures latency, generation time and memory.

python3 kvcache.py          # ~6 min (the first run also trains the shared model, ~3 min)
python3 kvcache.py --plot   # redraw the figures from outputs/*.csv

The model is project 08's GPT, unchanged. The cache adds no parameters and alters no weights — forward_cached calls the very same nn.Linear modules and merely remembers what they returned. Every number below is a pure inference-engineering win, bought with bookkeeping.

Results

1. First, it has to be exact

greedy tokens identical : True
max |logit| difference  : 0.00e+00

Not "close" — identical, to the bit. Worth checking first, because the interesting failure mode of a KV cache is silent. Keys and values are cached after RoPE is applied, so every cached token carries its position baked in; the new token must then be told it sits at position t, not position 0. Get that wrong and the cache is still fast, the output is still fluent Shakespeare, and it is quietly wrong. forward_cached takes a pos_offset for precisely this reason.

2. What the cache is worth

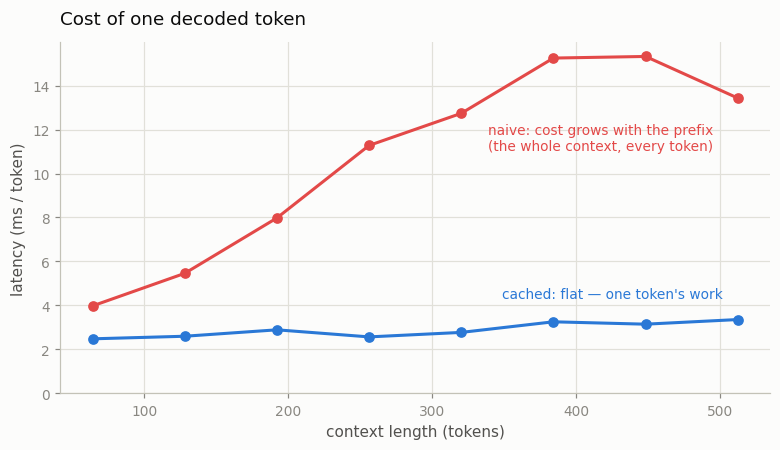

The naive decoder's cost per token climbs with the prefix it must re-read. The cached decoder's is flat: one token's work, however long the context.

context	naive	KV cache	wall-clock	arithmetic saved
64	3.97 ms/tok	2.47 ms/tok	1.6x	64x
128	5.46 ms/tok	2.59 ms/tok	2.1x	128x
256	11.28 ms/tok	2.56 ms/tok	4.4x	256x
448	15.33 ms/tok	3.14 ms/tok	4.9x	448x
512	13.43 ms/tok	3.35 ms/tok	4.0x	512x

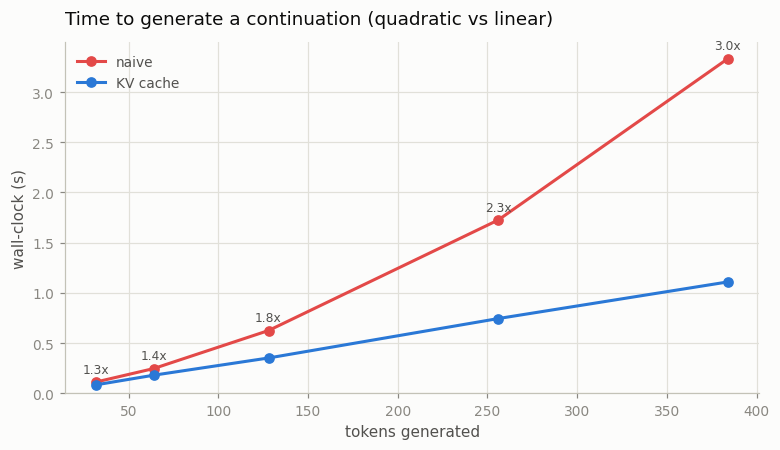

End to end, a 384-token continuation drops from 3.33 s to 1.11 s (3.0x), and the curve straightens from quadratic to linear — the whole point.

3. The gap between FLOPs and seconds

Look at the last two columns. At a 512-token context the cache eliminates 99.8% of the arithmetic (512x) and returns 4x of wall-clock. Where did the other 100x go?

The work the naive decoder wastes is embarrassingly parallel: it re-runs 512 tokens through the MLPs as one big matrix multiply, and a 512-row matmul uses this CPU far more efficiently — per FLOP — than the 1-row matmul the cached decoder is left with. The cache trades a mountain of cheap parallel work for a molehill of expensive serial work.

That is not a disappointment. It is the central fact of LLM serving, and it points directly at everything else in this phase:

• Decode is memory-bandwidth-bound, not compute-bound. Each cached token reads every weight in the model to do one token of arithmetic. The hardware sits starved, waiting on memory.
• So the throughput fix is batching (project 61): amortize that weight read across many sequences at once.
• The latency fix is speculative decoding (project 60): get more than one token out of a single weight read.
• The memory fix is quantization (project 59): make the weight read smaller.

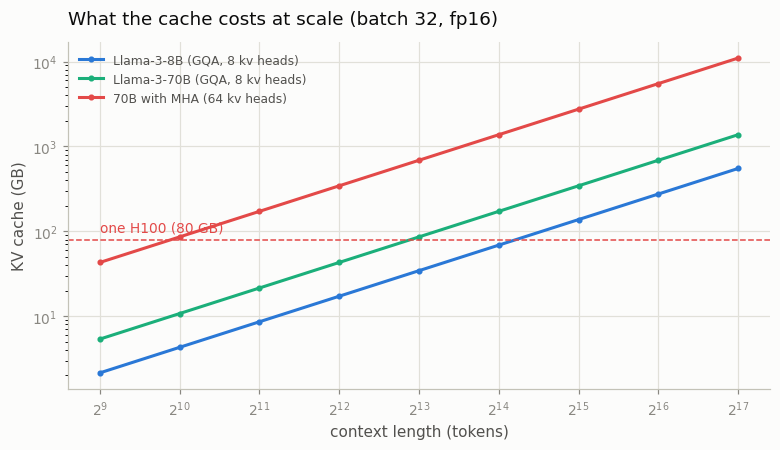

4. The cache is not free

KV bytes = 2 (K and V) x n_layers x n_kv_heads x d_head x seq_len x batch x bytes_per_number

	KV cache
this project (1.8M params, 512 ctx)	1.6 MB
Llama-3-8B @ 8k, one request	1.1 GB
Llama-3-8B @ 8k, batch 32	34 GB
Llama-3-70B @ 8k, batch 32	86 GB
Llama-3-70B @ 128k, batch 32	1,374 GB

A 70B model's weights already need two 80 GB H100s in bf16 — and then serving 32 users at 8k context asks for another 86 GB just for the cache. This single table explains three things you will meet later: why modern models use GQA (that 86 GB would be 687 GB with 64 KV heads instead of 8), why PagedAttention exists (project 61), and why people quantize the cache itself (project 65).

Things to try

• Break it on purpose. Force pos_offset=0 in forward_cached so every decoded token believes it sits at position 0. The speedup survives untouched; the correctness check fails and the samples turn to mush. This is the most common KV-cache bug in the wild, and it is worth seeing once.
• Set n_kv_heads=1 in make_config (that is MQA) and re-run the memory table: the cache shrinks by n_head / n_kv_heads. That factor is the entire reason nobody ships plain MHA any more.
• Time a batched cached decode (16 sequences at once) against a single sequence. Per-token latency barely moves — the weight read is shared — which is the observation project 61 turns into a serving engine.
