Serve with vLLM

---

Go from a notebook script to an HTTP server in one engine.

---

ELI5 (Explain Like I'm 5)

• The Big Idea: A serving engine is a scheduler. Requests arrive at random times and want wildly different numbers of tokens, and its job is to keep the hardware busy anyway. vLLM is famous for two ideas that do exactly that — and this project builds both from scratch.
• Continuous batching: the old way (static batching) fills a batch, runs it until every member finishes, and only then admits anyone new — so a dozen short requests sit trapped behind one long one, and newcomers queue behind all of them. Continuous batching re-decides the batch at every decode step: finished sequences leave immediately, waiting ones take their seats.
• PagedAttention: instead of reserving each request a KV cache slab big enough for the longest reply it might produce, hand out small fixed-size blocks on demand — memory managed like an operating system, not like a 1970s mainframe.
• What we measure: continuous batching drops median time-to-first-token from 1026 ms to 201 ms, and paging cuts the KV reservation 3.6x.

Key Insight

This project stands up a vLLM server in front of an open model and load-tests it with many simultaneous requests, so you can directly observe continuous batching and PagedAttention at work on a real model.

Why This Matters

A serving engine like vLLM turns the slow per-user, one-token-at-a-time decode into hundreds of tokens per second across many concurrent users by dynamically merging their requests — the engineering gap between a demo script and a real production system.

---

What's in this directory

File	Role
engine.py	The engine: a BlockPool (PagedAttention), a scheduler with static and continuous policies, and prefix caching (which project 62 studies). ~250 lines.
serve.py	The load test: Poisson arrivals, heavy-tailed output lengths, TTFT / tail latency / throughput / KV memory.

python3 serve.py          # ~6 min
python3 serve.py --plot   # redraw from outputs/results.csv

Why we build the engine instead of running vLLM

vLLM needs a CUDA GPU. This box has none and the package is not installed. So instead of driving someone else's server and reading its dashboard, we implement its two core ideas on top of the KV cache from project 58. For learning that is the better trade: an engine you can read beats a server you can only curl. The mechanisms below — block tables, on-demand allocation, iteration-level scheduling — are the real ones; only the scale is small.

The workload is what makes the comparison honest: 48 requests arriving at 25/s, and 80% want ~24 output tokens while 20% want ~150. That variance is the whole problem. Without a heavy tail, static batching looks perfectly fine.

Results

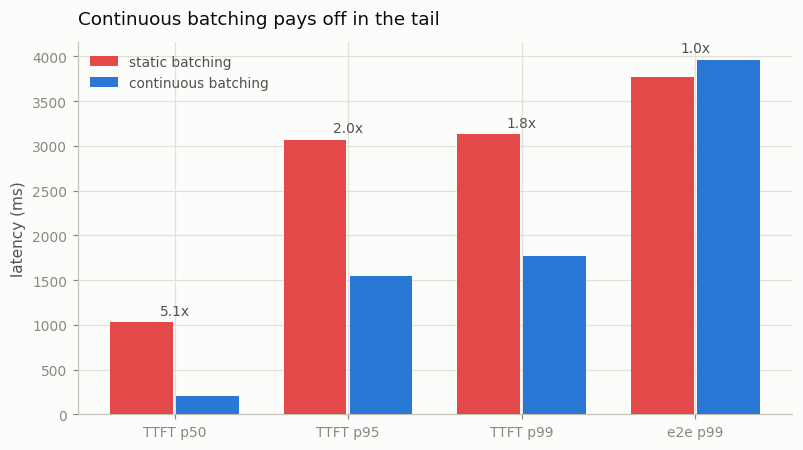

1. Continuous batching: same work, a fifth of the wait

max_batch = 16	static	continuous
throughput	488 tok/s	518 tok/s	1.1x
TTFT p50	1026 ms	201 ms	5.1x
TTFT p95	3067 ms	1545 ms	2.0x
TTFT p99	3127 ms	1765 ms	1.8x
e2e p99	3769 ms	3959 ms	0.95x

The throughput gap is modest; the latency gap is not. That is the true shape of the win: static batching does not waste much compute, it wastes time. A request arriving one step after a batch forms waits for that entire batch — including its 150-token straggler — before anyone even looks at it. Continuous batching seats it at the next decode step.

The effect grows with the batch width:

max_batch = 32	static	continuous
throughput	534 tok/s	607 tok/s	1.1x
TTFT p50	527 ms	25 ms	21x
TTFT p99	1161 ms	74 ms	16x

With room for 32 concurrent sequences the continuous scheduler admits almost everyone on arrival, and median TTFT collapses to roughly one decode step.

And one number that does not improve: end-to-end p99 (3.8 s static vs 4.0 s continuous). The slowest request wants 150 tokens, and no scheduler makes serial decoding shorter — continuous batching gets you seen sooner, it does not make your long reply finish sooner. Worth stating plainly, because "2x faster serving" claims almost always mean throughput or TTFT, never tail e2e.

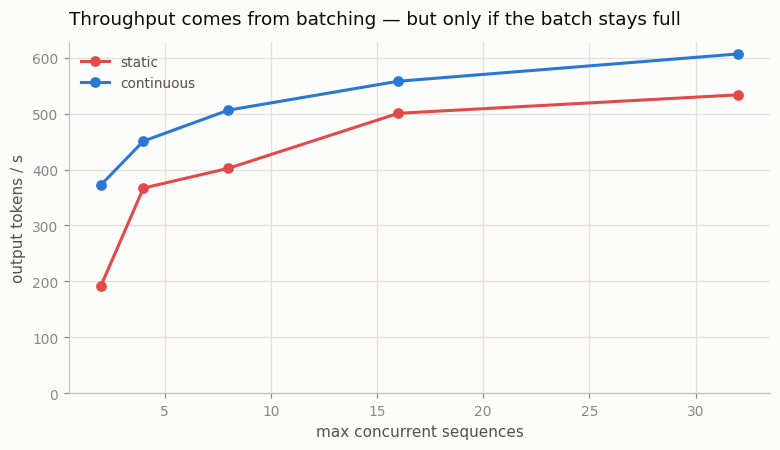

2. Throughput comes from batching — if you can keep the batch full

max_batch	static	continuous
2	192 tok/s	373 tok/s	1.9x
4	367 tok/s	451 tok/s	1.2x
8	402 tok/s	506 tok/s	1.3x
16	501 tok/s	558 tok/s	1.1x
32	534 tok/s	607 tok/s	1.1x

Both curves climb with batch size, which is the direct answer to project 58's finding that decode is memory-bandwidth-bound: a decode step reads every weight in the model whether it serves 1 sequence or 32, so widening the batch amortizes that read and tokens/sec rises almost for free.

Continuous batching leads everywhere and leads by the most at small batch sizes (1.9x at max_batch=2) — a narrow batch is exactly where one straggler hurts most. That is the throughput half of the vLLM story: not that batching is fast (everyone knew that), but that a static batch is never as full as it looks.

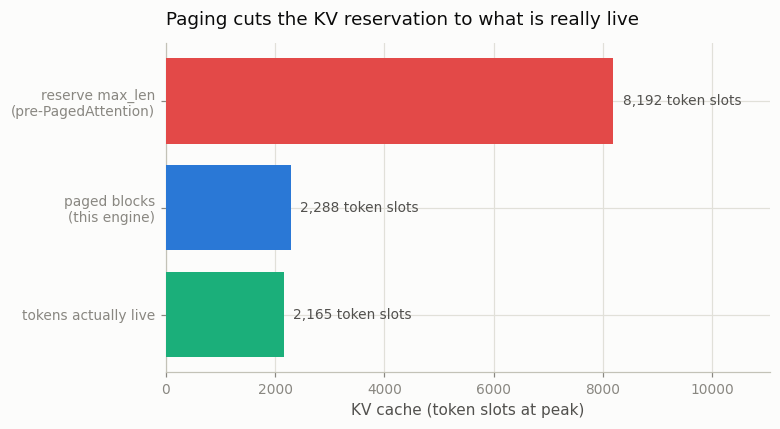

3. PagedAttention: stop reserving what you will not use

tokens actually live at peak :  2,165 slots
paged blocks (this engine)   :  2,288 slots   (143 blocks x 16 tokens)
reserve max_len per request  :  8,192 slots   (16 running x 512 max context)

The pre-vLLM way is to hand every running request a contiguous slab sized to the model's maximum context, because you cannot know in advance how long its reply will run. That reserves 8,192 token slots to hold 2,165 live ones — 74% of the KV cache is air — and it hard-caps concurrency at KV_memory / max_len no matter how short the actual requests turn out to be.

Paging hands out 16-token blocks on demand as each sequence grows. It reserves 2,288 slots — 3.6x less — and the only waste left is the unfilled tail of each sequence's final block (at most 15 tokens per request; 5% here).

That 3.6x is not a memory curiosity. KV memory is what caps the batch size, and section 2 just showed batch size is what buys throughput. PagedAttention is a throughput optimization wearing a memory optimization's clothes.

Things to try

• Raise RATE to 100 req/s and watch static TTFT p99 blow past 10 s while the continuous scheduler degrades gracefully. Overload is where schedulers show their true character.
• Make the output lengths uniform (delete the heavy tail in workload). Static batching nearly catches up — proving it was the straggler, not the batching.
• Shrink n_blocks until _grow raises "KV pool exhausted". A real engine preempts here — evicting a running sequence's blocks and recomputing or swapping them back later — rather than crashing. Implementing that preemption is the natural next step and is what makes vLLM survive real overload.
• Set block_size=1 and re-measure. Fragmentation vanishes, but the block table grows 16x — the classic page-size trade-off, straight out of an operating-systems course.
