Prefix-Cache Study
Stop redoing the same long system prompt for every request.
ELI5 (Explain Like I'm 5)
- The Big Idea: Your users' prompts are not fresh text. They are the same long preamble — a persona, tool definitions, retrieved documents, few-shot examples — with a short question stapled to the end. Without a prefix cache the server pushes that identical preamble through every layer of the model again for every single request.
- The fix is bookkeeping, not maths: the KV cache blocks for a run of tokens depend only on those tokens and everything before them. So hash the prefix, and if a later request starts with the same tokens, point it at the blocks that already exist. Nothing is recomputed.
- What we find: with a 256-token shared system prompt, the server prefills 8,690 tokens without the cache and 1,266 with it (85% skipped), and the median TTFT drops from 85 ms to 19 ms (4.5x). The p99 — the number your angriest user feels — drops 4.9x.
Key Insight
This project runs the same workload twice on a vLLM server — once with the prefix cache turned on and once with it turned off — then compares the tail latency and the TTFT for requests that share a long system message.
Why This Matters
Real traffic is mostly a long shared system prompt followed by a short user turn, so caching the keys and values for that prefix means the boilerplate is processed only once across many users — a quiet but huge throughput win whenever the prompts your users send have a fixed beginning.
What's in this directory
| File | Role |
|---|---|
prefix.py | Runs project 61's engine over an identical workload with prefix_cache on and off, sweeping the length of the shared system prompt. |
python3 prefix.py # ~5 min
python3 prefix.py --plot # redraw from outputs/results.csv
The engine is project 61's, unchanged — this study flips exactly one boolean.
The cache itself lives in engine.py::_admit and is about fifteen lines:
for i in range(len(prompt) // block_size): # each full block of the prompt
key = sha1(prompt[: (i+1) * block_size]) # hash the prefix UP TO here
if key in self.prefix_index:
table.append(self.pool.share(self.prefix_index[key])) # reuse, do not recompute
else:
break # first miss ends the shared run
seq.cached_len = len(table) * block_size # these tokens skip prefill entirely
Two details carry all the correctness:
- Hash the prefix, not the block. A block of tokens means something different depending on what came before it (attention is causal but cumulative), so the key must cover position 0 through the end of this block. This is what vLLM's automatic prefix caching does, and it is why blocks can be shared across requests without ever producing a wrong answer.
- Only share full blocks, and pin them. A partially filled block still has tokens to be written into it; sharing it would let one request scribble on another's cache. And a shared block must not be freed when its first owner finishes — so the cache holds a reference. That pin is the honest price: a prefix cache trades KV memory for prefill time.
The workload is the realistic chat shape: 32 requests at 20/s, three different system prompts (a small multi-tenant server), a short unique user turn, 24 output tokens each.
Results

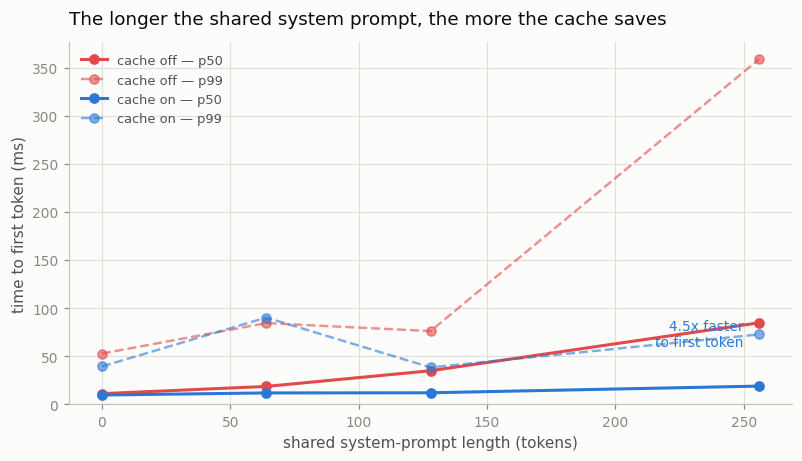

1. Time to first token
| shared prefix | TTFT p50 off → on | TTFT p99 off → on | throughput off → on |
|---|---|---|---|
| 0 tokens | 11 → 10 ms | 53 → 39 ms | 396 → 385 tok/s |
| 64 tokens | 18 → 12 ms | 84 → 90 ms | 382 → 375 tok/s |
| 128 tokens | 35 → 12 ms | 76 → 38 ms | 347 → 387 tok/s |
| 256 tokens | 85 → 19 ms | 359 → 73 ms | 297 → 350 tok/s |
Read the table top to bottom. With no shared prefix the cache does nothing (11 → 10 ms is noise) — it cannot, there is nothing to share, and it costs nothing either. As the shared preamble grows, the uncached server's TTFT climbs steadily — it is re-running the same 256 tokens through the model 32 times — while the cached server's TTFT stays flat at ~10-19 ms, because it only ever prefills the short user turn.
That flatness is the whole point. A prefix cache makes your system prompt free. You can grow it — more tools, more few-shot examples, more retrieved context — without paying for it on every request.

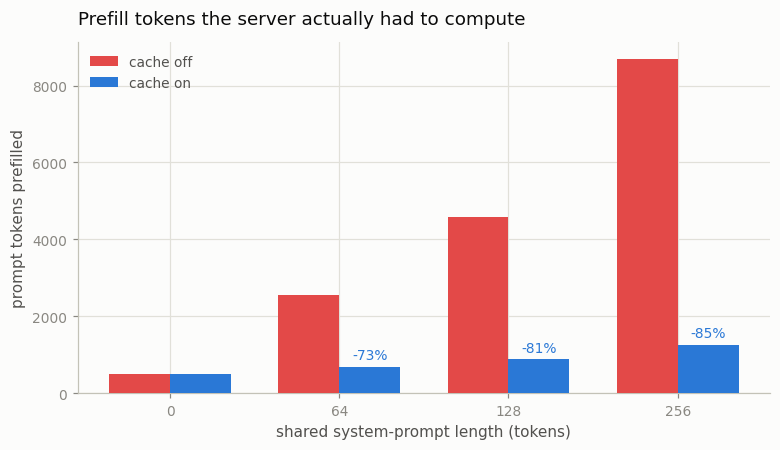

2. The work that was skipped
| shared prefix | prompt tokens prefilled (cache off) | (cache on) | skipped |
|---|---|---|---|
| 64 | 2,546 | 690 | 73% |
| 128 | 4,594 | 882 | 81% |
| 256 | 8,690 | 1,266 | 85% |
At a 256-token prefix, 85% of all prompt tokens the server would have pushed through the transformer are simply never computed. Three system prompts get prefilled once each; the other 29 requests read the result.
3. Throughput, and an honest wrinkle
Prefill work skipped is time returned to decoding, so throughput improves where it matters: 297 → 350 tok/s (+18%) at the 256-token prefix.
But look again at the 64-token row: throughput is a hair lower with the cache on (382 → 375 tok/s), and p99 TTFT is slightly worse (84 → 90 ms). That is not a measurement artifact to be embarrassed about — it is the cache's overhead showing through. Hashing every prompt block and pinning blocks in the pool costs something, and when there is little to save (a 64-token prefix against a ~76-token prompt) the bookkeeping is not yet paid for. The prefix cache is a bet that your prefixes are long and shared, and at 64 tokens that bet is roughly break-even.
Real traffic makes it a very safe bet: production system prompts run to thousands of tokens (a tool schema alone is hundreds), which is far to the right of this chart, where the cached curve is flat and the uncached one is still climbing.
Things to try
- Push
PREFIX_LENSto 512 and 1024 (raise the model'sblock_sizeinkv_lib.make_configfirst). The uncached TTFT keeps climbing; the cached one does not move. Watching those two lines diverge is the most convincing version of this result. - Set
N_TENANTS = 32— every request gets its own system prompt. Every lookup misses, and the cache becomes pure overhead. Cache hit rate, not prefix length, is what you are really betting on. - Give the pool too few blocks and let the pinned prefix blocks squeeze out room for running sequences. Real engines evict prefix blocks under memory pressure (LRU); seeing why they must is worth the ten minutes.
- Time the second identical request to arrive, specifically. Its TTFT is the pure cache-hit latency — the number an evaluation harness that replays the same prompt twice will quietly show you, and the reason such harnesses lie about cold-start cost.
