FP8 Serving
Half the bits of bfloat16, much more throughput on modern GPUs.
ELI5 (Explain Like I'm 5)
- The Big Idea: FP8 stores every number in 8 bits instead of 16. Since decoding is bottlenecked on reading numbers out of memory (see project 58), halving the bytes roughly doubles the ceiling on tokens per second — and Hopper/Blackwell GPUs have tensor cores that multiply FP8 natively.
- E4M3 vs E5M2: eight bits have to be split between range (exponent) and precision (mantissa). E4M3 spends them on precision and is what weights and activations use; E5M2 buys range at the cost of precision — and we measure it being the worse choice for weights.
- The catch — and it is the whole project: FP8's smallest representable number is about 0.002. Any value below that is not "approximated," it is erased to zero. A per-tensor scale factor — multiply the tensor up before rounding, divide back after — is what stands between you and a model full of zeros. We show a tensor of realistic small activations going to 100% error, 100% of values flushed to zero without one.
Key Insight
This project converts a model's weights, activations, and KV cache to FP8 using NVIDIA's TransformerEngine, verifies that quality on a small benchmark suite holds up, and measures the latency improvement on a Hopper-class GPU.
Why This Matters
FP8 halves the memory and the bandwidth read for every parameter compared with bfloat16, and Hopper- and Blackwell-class GPUs have dedicated FP8 Tensor Cores, so the format is rapidly becoming the production default for new serving stacks — a near-free speedup when the hardware supports it.
What's in this directory
| File | Role |
|---|---|
fp8.py | The E4M3/E5M2 rounding itself, patches to put weights / activations / the KV cache into FP8, the quality sweep, and the underflow probe. Reuses project 59's evaluation harness. |
python3 fp8.py # ~8 min
python3 fp8.py --plot # redraw from outputs/results.csv
What we can and cannot measure here
TransformerEngine needs a Hopper GPU. This box has neither, so we do in software exactly what the hardware would do: round every number to the nearest value E4M3 (or E5M2) can represent, and run the model on those.
That split matters, and it is worth being blunt about:
- Quality is measured exactly. The arithmetic the model sees is bit-for-bit what FP8 tensor cores would feed it. Every perplexity and MMLU number below is real.
- Speed is not measured. There are no FP8 units here, so there is no honest speedup to report. What we can do — and what section 4 does — is compute the bandwidth saving, which is what the speedup comes from on real hardware.
An FP8 number is sign x 2^exponent x 1.mantissa. Rounding to it means finding the
binade and rounding the mantissa to 3 bits (E4M3) or 2 (E5M2). That is fp8_quantize,
and it is ten lines.
Results

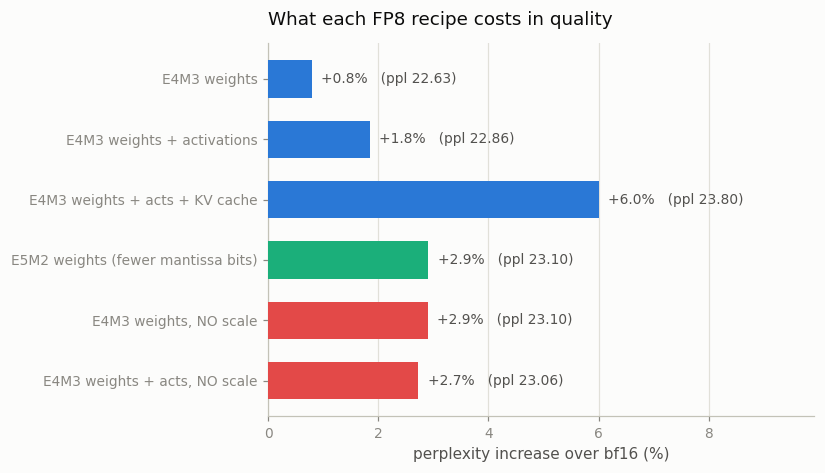

1. FP8 quality, recipe by recipe
| recipe | wikitext ppl | vs baseline | MMLU |
|---|---|---|---|
| bf16 baseline | 22.450 | — | 0.450 |
| E4M3 weights | 22.626 | +0.8% | 0.444 |
| E4M3 weights + activations | 22.865 | +1.8% | 0.439 |
| E4M3 weights + acts + KV cache | 23.799 | +6.0% | 0.421 |
| E5M2 weights | 23.103 | +2.9% | 0.415 |
| E4M3 weights, no scale factor | 23.100 | +2.9% | 0.468 |
| E4M3 weights + acts, no scale | 23.062 | +2.7% | 0.456 |
Weights in FP8 are nearly free (+0.8%), and adding activations costs little more (+1.8%). This is the result that made FP8 the default for new serving stacks: you halve the bytes and the model barely notices.
The KV cache is the expensive one (+6.0%) — and also the one with the biggest payoff, because at long context and large batch the cache is the memory (project 58's table: 34 GB for an 8B model at batch 32). Keys and values carry large outliers that a 3-bit mantissa handles poorly, which is why production stacks expose KV-cache quantization as its own switch: you turn it on when you are memory-bound, not by default.
E5M2 is worse than E4M3 for weights (+2.9% vs +0.8%), exactly as the format's design predicts. Weights are tightly clustered around zero; they need precision, not the extra exponent range E5M2 buys. (E5M2's range is for gradients during training, which span many orders of magnitude — a different problem.)
A caution on the MMLU column: at n=171 questions its 95% interval is roughly ±7 points, so the fact that "no scale factor" scores highest (0.468) is noise, not a finding. Perplexity, measured over 8,192 tokens, is the signal here — the same lesson project 59 ran into.

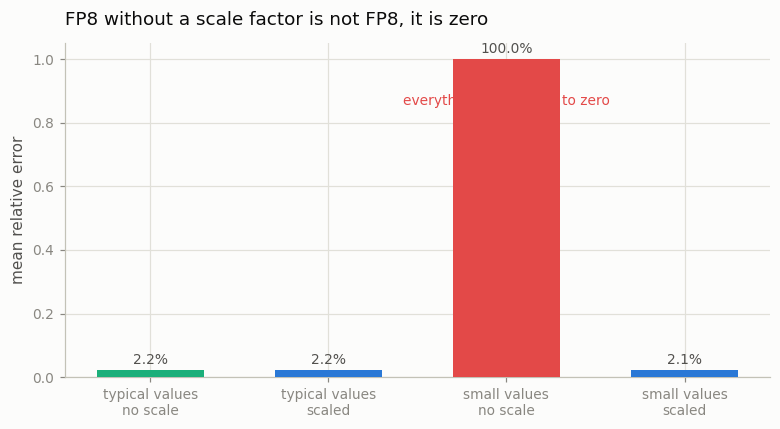

2. Why the scale factor exists
Here is the whole argument in four numbers. Take a tensor and round it to E4M3, with and without a per-tensor scale:
| tensor | scale | mean relative error | values flushed to zero |
|---|---|---|---|
| typical activations (~1.0) | off | 2.18% | 0% |
| typical activations (~1.0) | on | 2.17% | 0% |
| small activations (~3e-4) | off | 100.00% | 100% |
| small activations (~3e-4) | on | 2.12% | 0% |
E4M3's smallest representable magnitude is 2^-9 ≈ 0.00195. A tensor whose values
live at 3e-4 sits entirely below that floor, so every single element rounds to
zero — the tensor does not lose precision, it ceases to exist. Scale it up by its
own maximum first and the identical format represents it to 2% error.
That is what a "scale factor" is, and why every FP8 recipe in production is really an
FP8-plus-scaling recipe. TransformerEngine tracks a running amax per tensor for
exactly this. It is also the same lesson project 25 hit from the training side.
An honest caveat: in the table in section 1, turning the scale off for this model costs only +2.9%, not catastrophe. That is because Qwen2.5's activations sit post-RMSNorm at magnitudes near 1.0 — comfortably inside E4M3's range — so they never hit the floor. The scale factor is insurance, and this particular model does not crash without it. Other tensors in other models (attention scores after masking, expert activations in a sparse MoE, anything post-softmax) live exactly where the probe above lives. The reason you always scale is not that it always helps; it is that when it matters, it is the difference between a working model and zeros.

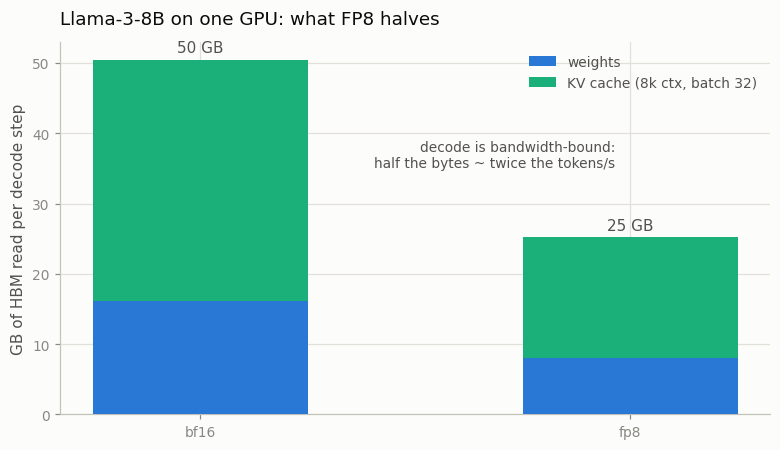

3. What FP8 actually buys — and where it comes from
We cannot time it here, so compute it. Take Llama-3-8B at 8k context, batch 32:
| bf16 | FP8 | |
|---|---|---|
| weights | 16.1 GB | 8.0 GB |
| KV cache (8k, batch 32) | 34.4 GB | 17.2 GB |
| read per decode step | 50.5 GB | 25.2 GB |
And now the formula from the guide:
decode is memory-bandwidth-bound: tok/s ~ HBM_bandwidth / bytes_read_per_token
Halve the bytes, double the ceiling. That is the entire pitch: FP8 is not faster because the arithmetic is faster (though on Hopper's tensor cores it is), it is faster because decode was never arithmetic-bound in the first place. It was waiting on memory, and now it waits half as long.
Which also tells you exactly when FP8 will not help you: prefill (compute-bound), tiny models (overhead-bound — see project 60), and any hardware without FP8 units, where you pay the conversion and get nothing back.
Things to try
- Quantize the KV cache only (leave weights and activations in bf16). It is the cheapest memory win per unit of quality lost, and it is the switch that lets you double your batch size — which, per project 61, is where throughput actually comes from.
- Replace the per-tensor scale with a per-channel one and re-measure the KV-cache row. Outliers in K and V are channel-structured; a per-channel scale should recover most of that 6%.
- Try E5M2 for the KV cache instead of E4M3. The cache has the outliers, so this is the one place the extra exponent range might actually pay.
- Compare FP8-E4M3 weights against INT8 from project 59 — the same 8 bits, spent differently (a floating grid versus a uniform one with a scale per group). Which wins tells you whether your weights are outlier-heavy or well-behaved.
