Mini-MoE

Keep many expert networks on hand, but pay to run only the few each token actually needs.

ELI5 (Explain Like I'm 5)​

  • The Big Idea: Instead of one MLP that every token goes through, a Mixture-of-Experts keeps eight MLP "experts" and a little router that sends each token to just the best two. The model now holds many more parameters (more knowledge), but any single token only ever touches two experts, so the cost per token barely changes. The hard part isn't the experts — it's stopping the router from playing favorites and leaving most experts to rot.
  • Analogy: A hospital with eight specialists and a triage nurse. Each patient sees only the two specialists they need, so care is fast and deep. The danger is a lazy triage nurse who sends everyone to the same two doctors while the rest sit idle — "routing collapse." A good incentive (the load-balancing loss) keeps all eight busy.
  • Example: We bolt an 8-expert top-2 MoE onto nanoGPT. The router stays beautifully balanced — every expert handles 11–15% of tokens (ideal 12.5%), no collapse. The model holds 5.7× more parameters than the dense baseline while each token still touches only two experts.

Key Insight​

A Mixture-of-Experts (MoE) replaces one MLP with several "expert" MLPs plus a router that sends each token to only the top few experts. Total parameters grow large while the compute spent per token stays fixed.

Why This Matters​

MoE is how models like Mixtral and DeepSeek-V3 reach huge parameter counts affordably. Adding an 8-expert top-2 layer to nanoGPT — and watching whether the router spreads tokens evenly across experts — exposes the central challenge of MoE: keeping routing balanced.

What's in this directory​

FileRole
moe_ablation.pyTrains a dense baseline and an 8-expert top-2 MoE, then plots loss and expert utilization
python moe_ablation.py --corpus data/corpus.txt --config dense
python moe_ablation.py --config moe
python moe_ablation.py --plot

The MoE swaps the SwiGLU MLP in the project-08 block for a router + 8 experts, and adds a Switch-Transformer load-balancing loss (0.01 × aux) to the training objective.

Results​

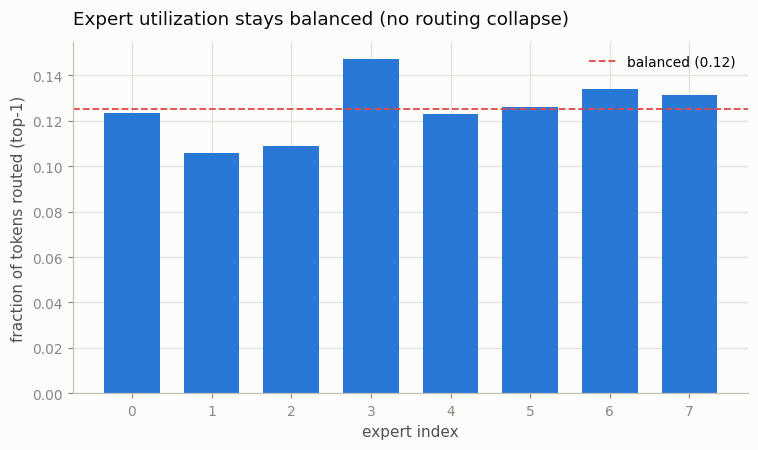

The router stays balanced — no collapse. This is the whole game. With the load-balancing loss, all eight experts receive a near-equal share of tokens (11–15%, ideal 12.5%). Remove that loss and a few experts would hog everything while the rest never train:

Expert utilization

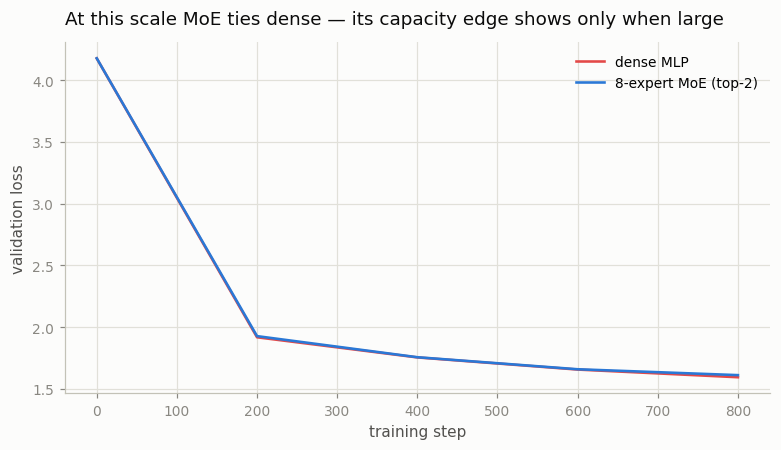

Loss: a tie at this scale. The MoE holds 5.7× the parameters but, trained briefly at char scale, only matches the dense model — its extra capacity has nothing to bite on yet:

Loss curves

config   total params   active/token   val loss
dense       0.59M          0.59M         1.602
moe         3.34M          0.99M         1.604

Reading this honestly​

Two lessons, and the second is the important one:

  1. MoE's capacity is only worth it at scale. Here the sparse model has 5.7× the parameters yet ties the dense baseline — a tiny model on a megabyte of text simply doesn't need the extra experts, and a few hundred steps isn't long enough for the router to specialize. The win (Mixtral, DeepSeek-V3, Qwen3) appears at billions of parameters, where you cannot afford to run all the weights per token and MoE's "big brain, small bill" becomes decisive.
  2. Balanced routing is the make-or-break engineering problem, and it is fully visible even at this toy scale. Without the auxiliary loss, softmax routing collapses onto a handful of experts and the rest are dead weight — the single most common way MoE training fails. The flat utilization bars above are the proof that the fix works.

Things to try​

  • Set the load-balancing weight to 0 and re-run — watch the utilization bars go lopsided as a few experts capture most tokens (routing collapse).
  • Switch to top-1 routing (Switch Transformer style) and compare balance and loss.
  • Scale n_embd and the number of experts up together and look for the loss gap over the dense baseline to finally open.
