Pre-Norm vs Post-Norm
Where you place the normalization decides whether training is smooth or blows up.
ELI5 (Explain Like I'm 5)
- The Big Idea: Every transformer block adds its work back onto a running "residual" total. Where you put the normalization matters enormously. Pre-norm normalizes the input to each block and leaves the running total untouched — a clean highway that gradients flow down easily. Post-norm normalizes after adding, squeezing the highway at every block; stack enough blocks and the learning signal gets choked, so training stalls unless you tiptoe with a tiny learning rate.
- Analogy: Pre-norm is a straight express lane with a checkpoint on each on-ramp — traffic flows. Post-norm puts a checkpoint on the main road at every exit; a few are fine, but stack eight and the highway jams. Pre-norm is why modern skyscraper-deep models train at all.
- Example: We train an 8-layer model both ways across four learning rates. Pre-norm lands at ~2.2 loss at every learning rate. Post-norm matches it at low LR but collapses to 3.36 (barely learning) once the LR gets aggressive — fragile exactly where pre-norm is robust.
Key Insight
Pre-norm puts the normalization step inside each residual branch (x = x + Attn(Norm(x))), while post-norm normalizes after the residual is added. Pre-norm trains stably even without learning-rate warmup; post-norm often needs warmup and can diverge without it.
Why This Matters
Every modern transformer is pre-norm for exactly this reason. Training two otherwise-identical models, with and without warmup, turns an abstract design rule into something you have watched succeed and fail with your own eyes.
What's in this directory
| File | Role |
|---|---|
norm_ablation.py | Trains 8-layer pre- and post-norm models across a learning-rate sweep and plots the robustness gap |
python norm_ablation.py --corpus data/corpus.txt # ~7 min on CPU
Only one line differs between the two models — inside the block from project 08:
if norm == "pre": # modern: clean residual highway
x = x + attn(norm1(x)); x = x + mlp(norm2(x))
else: # original 2017 Transformer
x = norm1(x + attn(x)); x = norm2(x + mlp(x))
Results

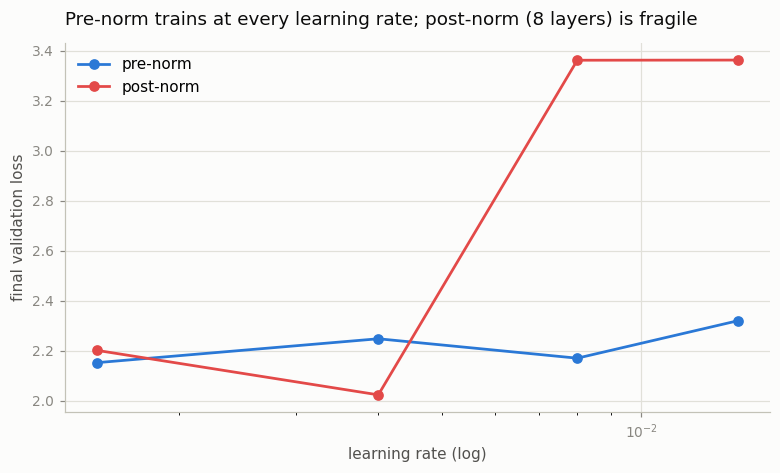

Pre-norm is robust; post-norm is fragile. Sweeping the learning rate at a fixed 8-layer depth, pre-norm sits near 2.2 loss everywhere. Post-norm keeps up at gentle learning rates, then falls off a cliff once the LR gets aggressive:
learning_rate pre-norm post-norm
1.5e-03 2.152 2.201 both fine
4.0e-03 2.248 2.023 both fine
8.0e-03 2.170 3.361 post-norm collapses
1.4e-02 2.320 3.362 post-norm collapses

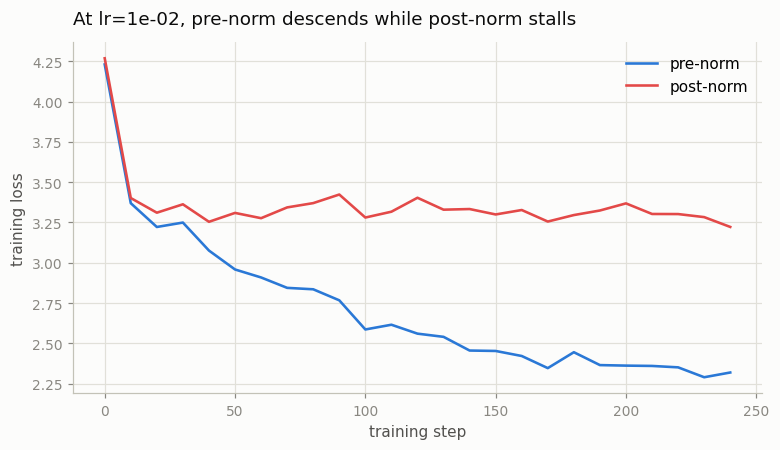

Watching one collapse happen. At the most aggressive learning rate, pre-norm descends steadily while post-norm flat-lines near its starting loss — its deep residual path has strangled the gradient signal:
Why pre-norm won (and a note on warmup)
In a post-norm stack, each block re-normalizes the sum of the residual and the new sublayer output, so signal (and gradient) magnitude compounds through depth; past a modest depth it either explodes or, as here, gets suppressed, and the model can't learn unless the learning rate is small. Pre-norm's normalization sits on the branch, leaving an un-normalized residual path from input to output that gradients traverse cleanly at any depth — which is why every modern transformer (GPT, Llama, Mistral, Qwen) is pre-norm.
The classic remedy for post-norm was a learning-rate warmup (ramp the LR up slowly). Warmup tames the early-training instability of the original LayerNorm Transformer, but it does not fix the depth-driven signal suppression you see above — that's an architectural problem, and the architectural fix (pre-norm) is what the field adopted. The honest lesson: don't nurse a fragile design with scheduling tricks when a one-line placement change removes the fragility.
Things to try
- Drop the depth to 2–4 layers and watch the gap vanish — post-norm is fine when shallow, which is why it worked in 2017's 6-layer translation models.
- Add a warmup schedule to the post-norm runs and confirm it helps early but doesn't rescue the high-LR collapse at this depth.
- Crank the depth to 16 and watch post-norm fail even at moderate learning rates — fragility grows with depth.
