Multi-Head Attention

---

Run attention many times in parallel, each head free to focus on a different kind of relationship.

---

ELI5 (Explain Like I'm 5)

• The Big Idea: One attention head can only track one kind of relationship at a time. So we run several in parallel — each gets its own slice of the vectors, does its own attention, and they specialize (one head tracks the verb, another the subject, another punctuation). Then we glue their outputs together and mix them once more. GQA is a money-saving tweak: let several question-heads share one set of keys/values, so there's much less to remember during generation.
• Analogy: Instead of one reader skimming a page for everything, you hand the page to eight specialists — a grammar checker, a fact checker, a tone checker… — who all read at once and then compare notes. GQA is those eight specialists sharing a few photocopies instead of each making their own.
• Example: We copy the weights out of PyTorch's nn.MultiheadAttention into our from-scratch version and get bit-identical outputs (diff = 0.0). Then we show the payoff of GQA: a Llama-7B-shaped KV cache shrinks from 2.15 GB to 0.07 GB (32×) going from MHA to MQA.

Key Insight

Multi-head attention splits the model dimension into several heads, runs attention in each one independently, then concatenates the results and projects them back. Grouped-Query Attention (GQA) is a small twist: several query heads share one set of keys and values to shrink the KV cache.

Why This Matters

Every production transformer uses multi-head attention, and nearly every model since 2024 uses GQA to serve faster. Verifying your version against nn.MultiheadAttention confirms you have the tensor reshapes exactly right — the part that is easy to get subtly wrong.

What's in this directory

File	Role
mha.py	CausalMHA with a GQA knob, an exact equivalence check vs PyTorch, and both figures

python mha.py      # ~20s on CPU

Getting the reshapes exactly right

Multi-head attention is 90% bookkeeping: reshape (B, T, d) into (B, heads, T, d_head), attend, then reshape back. One transpose in the wrong place produces plausible-looking garbage. The only way to be sure is to check against a known-correct implementation — so we copy nn.MultiheadAttention's in_proj/out_proj weights into our module and compare:

max|mine - nn.MultiheadAttention| = 0.00e+00  OK

Bit-for-bit identical: our .view(...).transpose(...) dance is exactly PyTorch's.

Results

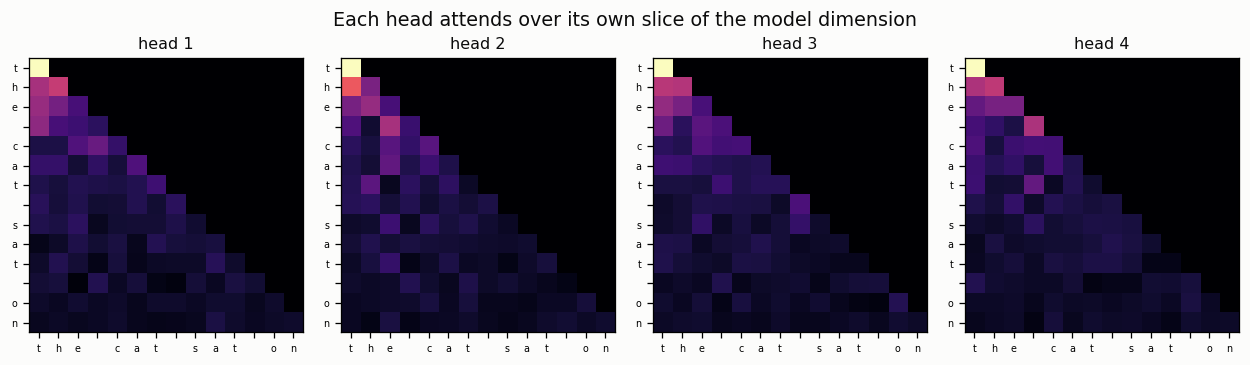

Each head runs in parallel over its own subspace. The four maps below share the causal triangle but weight it differently — during training these specialize into distinct roles (previous-token heads, syntactic heads, and so on):

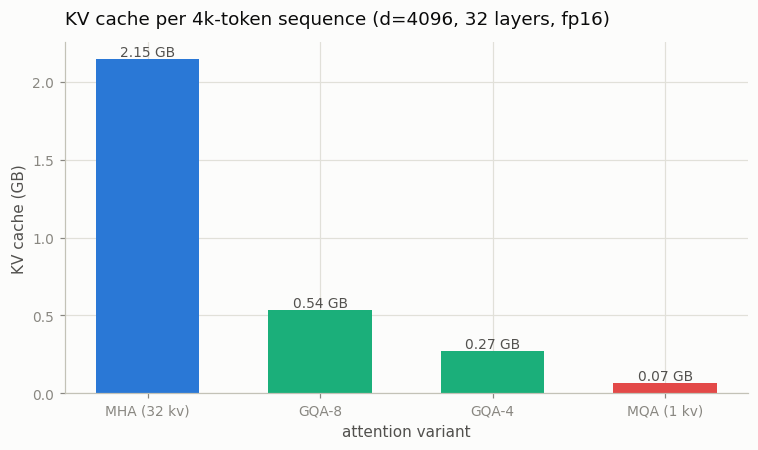

GQA is the cheapest speedup in modern serving. During generation every past token's keys and values must be cached; that cache, not the weights, is what caps how many users a GPU can serve. Sharing KV heads shrinks it directly:

config      n_kv_heads   KV cache (4k ctx)   shrink
MHA             32           2.15 GB           1×
GQA-8            8           0.54 GB           4×
GQA-4            4           0.27 GB           8×
MQA              1           0.07 GB          32×

The trade-off GQA is buying

Fewer KV heads means less cache, faster serving, and longer feasible context — but the query heads now share coarser keys/values, which costs a little quality. MQA (1 KV head) is the extreme and can hurt noticeably; GQA is the sweet spot (Llama 2 70B onward, and nearly every model since 2024 uses GQA-8 or GQA-4), recovering most of MHA's quality at a fraction of the cache. Project 11 trains matched models to measure that quality cost instead of asserting it.

Things to try

• Set n_kv_heads=2 and confirm repeat_interleave broadcasts the 2 KV heads across all query heads without changing output shape.
• Time generation with a growing KV cache under MHA vs MQA — the cache, not the matmuls, is what slows long-context decoding.
• Copy weights the wrong way (swap two heads) and watch the equivalence check fail — the reshape really is that unforgiving.
