FSDP from Scratch (Toy)

Split the model across two GPUs by hand, and the magic of sharded training disappears.

ELI5 (Explain Like I'm 5)​

  • The Big Idea: A big model plus its optimizer state can be too large to fit on one device. FSDP splits the model into slices and gives each worker just one slice to own. Every step the workers briefly all-gather the full weights to do the math, average their gradients, then each worker updates only its slice. We build that by hand and prove it gives the exact same numbers as the ordinary (everyone-holds-everything) way.
  • Analogy: Four friends assembling one giant IKEA wardrobe. Instead of each keeping a full copy of the instructions and all the screws, each keeps one chapter and its screws. They lay everything out together to build (all-gather), then each files away only their own chapter and hardware — a quarter of the clutter each, same wardrobe.
  • Example: Sharding our model across 2 ranks cuts each rank's master weights from 3.18 MB to 1.59 MB (half). And the sharded run's weights match a fully replicated run's to the bit — max divergence 0.00 — because sharding only partitions the identical update.

Key Insight​

FSDP (Fully Sharded Data Parallel) splits a model's weights, gradients, and optimizer state across GPUs so no single GPU has to hold the whole thing. Building a toy version by hand on 2 GPUs — and checking it reaches the same result as plain data parallelism — shows exactly what the library does for you.

Why This Matters​

AdamW's optimizer state alone is several times the size of the model, so large models do not fit on one GPU. Sharding with FSDP (and its cousin ZeRO) is what makes training beyond a few billion parameters possible at all.

What's in this directory​

FileRole
fsdp_toy.pyHand-rolled whole-model sharding over gloo ranks (all-gather → compute → reduce → per-shard update), with a replicated reference that proves bitwise equivalence
torchrun --nproc_per_node=2 fsdp_toy.py     # shard across 2 ranks (CPU processes)
python fsdp_toy.py --plot

Reuses the GPT skeleton (model.py) from project 08. We use CPU processes over the gloo backend as stand-in "GPUs", and shard the whole model at once — a toy simplification; real FSDP shards layer-by-layer so the gathered full copy is only ever one layer.

The four operations, by hand​

each step, on every rank:
  1. all-gather   — reconstruct the full weights from every rank's shard
  2. forward/backward on this rank's slice of the batch  (data parallelism)
  3. all-reduce   — average the gradients across ranks
  4. update       — each rank steps the optimizer on ONLY its shard

Steps 2–3 are ordinary data parallelism; steps 1 and 4 are the FSDP part. The whole thing is ~40 lines using all_gather, all_reduce, and parameters_to_vector / vector_to_parameters.

Results​

Half the memory per rank, identical math. Sharding halves each rank's master weights (and, in a real run, its AdamW state too — the bigger prize, since Adam's state is ~2× the weights). Against a replicated reference fed the identical averaged gradient, the sharded weights never diverge — because AdamW is elementwise, so "who owns which element" cannot change the result:

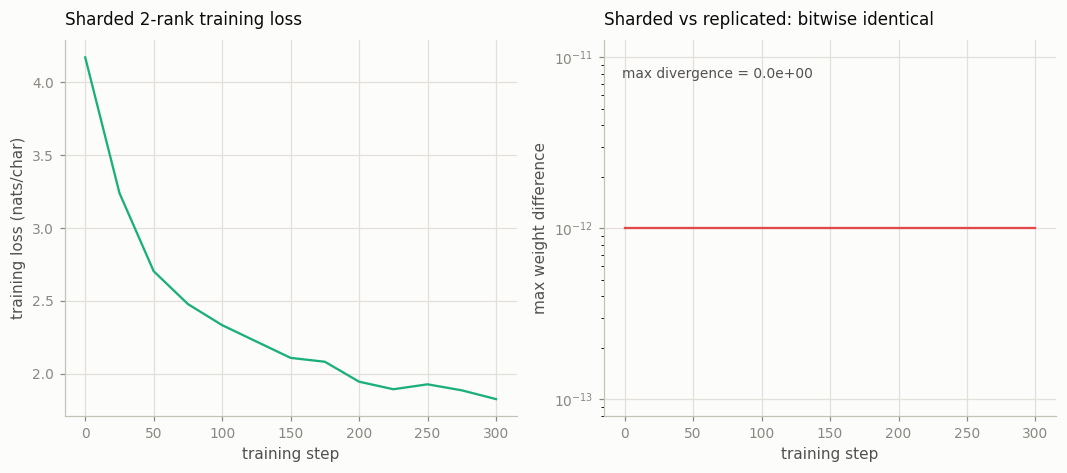

FSDP equivalence

world size                          2
total params                        0.795M
sharded master / rank               1.59 MB   (half)
replicated master / rank            3.18 MB
max sharded-vs-replicated divergence  0.00e+00   ← bitwise identical

The right panel is the proof: the maximum difference between the sharded and the fully-replicated weights stays at exactly zero for the whole run. FSDP is not an approximation of data parallelism — it is data parallelism, with the redundant copies deleted.

Why sharding is what unlocks large models​

Count the memory a dense model needs to train in mixed precision: ~2 bytes/param for the bf16 weights, ~2 for the bf16 gradient, and for AdamW ~12 more (fp32 master weight + fp32 momentum + fp32 variance) — roughly 16 bytes per parameter. A 7B model is ~112 GB of state before a single activation, which does not fit on an 80 GB card. FSDP / ZeRO shard all of it across N ranks, so each holds 1/N, and 7B — or 70B, or 400B — suddenly fits. The cost is the communication (the all-gather/all-reduce traffic that project 27 measures); the payoff is that the model fits at all.

Things to try​

  • Run --nproc_per_node=4 and watch each rank's shard drop to a quarter — the memory saving is exactly 1/world.
  • Shard layer-by-layer instead of the whole model at once, gathering each block's weights just before its forward and freeing them after — that's the real FSDP, and it keeps the peak "unsharded" copy tiny.
  • Add the AdamW optimizer state to the memory tally and confirm sharding it is the bigger win: fp32 momentum + variance are ~8 bytes/param vs the 2-byte bf16 weight.
