Multi-Node Training
Sixteen GPUs across two machines, one training loop — if the network can keep up.
ELI5 (Explain Like I'm 5)
- The Big Idea: When a training job spans many machines, the model stops being the hard part — the coordination does. Every step, all the machines must add up their gradients over the network (communication), and because they march in lockstep, the whole group only goes as fast as its slowest member (a straggler). We can't add real machines to a laptop, but we can spin up several processes that talk over the network stack and measure exactly these two costs.
- Analogy: A rowing eight. Add rowers and you could go faster — but only if they stay perfectly synchronized (communication), and the boat's speed is capped by the one rower who's tired (the straggler). One person catching a crab stalls the whole boat.
- Example: Going from 1 to 2 ranks, the gradient all-reduce jumps from 4% to 30% of each step. And when we make one of four ranks 150 ms slow, the step time balloons from ~350 ms to ~550 ms — everyone waits for the laggard.
Key Insight
This project runs FSDP across 2 nodes of 8 GPUs each, launched with torchrun, aiming for over 70% MFU. Once a job spans machines, the hard part shifts from the model to the network and the orchestration between nodes.
Why This Matters
Real pretraining spans many machines, where slow links and straggler GPUs — not the model — decide throughput. Keeping utilization high across nodes is the difference between a run that finishes in days and one that drags on for weeks.
Honest downscale
The guide targets 2 nodes × 8 GPUs at >70% MFU. A single CPU can't show real
speed-up from "more nodes" — every rank shares the same cores, so throughput stays
flat no matter how many we launch. What it can show honestly are the two costs
that actually cap multi-node throughput, and that never appear on a single GPU:
communication and stragglers. We run real data-parallel DDP over the gloo
backend at 1/2/4 ranks (torchrun --nproc_per_node=N), timing the compute/comm
split, then inject an artificial straggler.
What's in this directory
| File | Role |
|---|---|
multinode.py | Data-parallel DDP over gloo ranks; measures the compute vs all-reduce split per step, and the effect of a straggler |
torchrun --nproc_per_node=1 multinode.py
torchrun --nproc_per_node=2 multinode.py
torchrun --nproc_per_node=4 multinode.py
STRAGGLER_MS=150 torchrun --nproc_per_node=4 multinode.py
python multinode.py --plot
Reuses the GPT skeleton (model.py) from
project 08.
Results

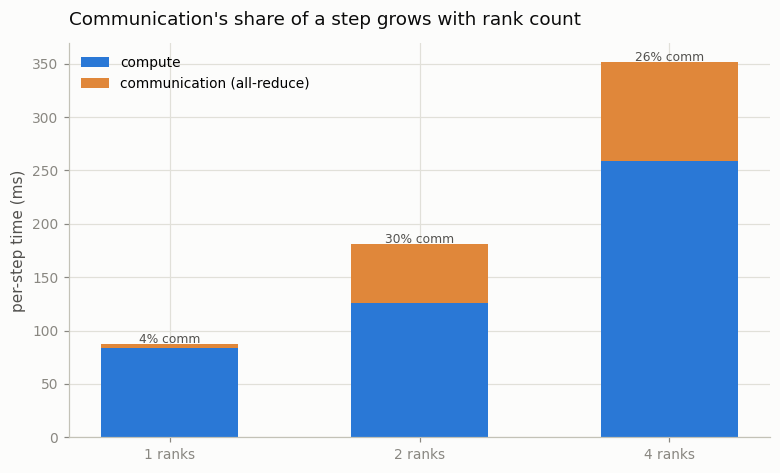

Communication's share of a step grows with the rank count. The all-reduce that averages gradients is a synchronous barrier; the more ranks, the more it costs:
ranks compute comm comm share
1 84 ms 3.6 ms 4%
2 126 ms 54.6 ms 30%
4 259 ms 92.6 ms 26%
(Compute rises with rank count only because all ranks share this one machine's cores — on real separate nodes it would stay flat and the throughput would scale; what transfers from this toy is the comm column, which is real.)

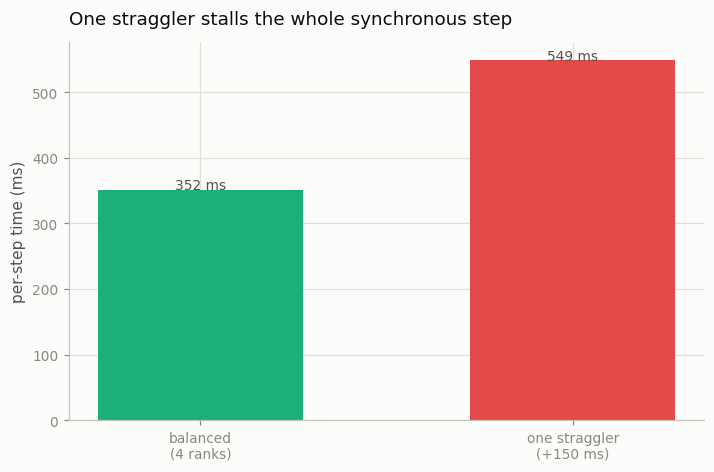

And one straggler stalls everyone. Delaying a single rank by 150 ms per step inflates the whole group's step, because the barrier can't clear until the slowest rank arrives:
balanced 4 ranks ~351 ms/step
one straggler (+150 ms) ~549 ms/step ← everyone waits for the laggard
Why utilization, not the model, decides the timeline
Once a run spans machines, MFU — the fraction of the hardware's peak FLOPs you actually use (see project 22) — is set by how much of each step is not compute. Two things erode it: communication (mitigated by overlapping all-reduce with the backward pass, by faster interconnects like NVLink/InfiniBand, and by sharding strategies that reduce traffic) and stragglers (a single slow or flaky GPU, a thermal-throttled node, an unlucky network hop). A frontier run that holds 50% MFU across thousands of GPUs and one that limps at 20% differ not in their model but in their networking and scheduling — which is why "keep the cluster busy" is a full-time engineering job, and why the last mile of pretraining is a systems problem, not a modeling one.
Things to try
- Overlap communication with compute: launch the all-reduce for each layer's gradients as soon as they're ready (during the backward), instead of after — this is what real DDP's gradient bucketing does, and it hides most of the comm column.
- Vary
STRAGGLER_MSand plot step time vs the straggler's delay — it's linear, and the slope is exactly 1: every millisecond of straggler is a millisecond for all. - Combine with the FSDP project 23: shard the model and replicate across ranks (2D parallelism), the real frontier layout.
