REINFORCE on CartPole
Key Insight
REINFORCE is the most direct way to learn a policy: instead of estimating action values and acting greedily, it nudges the policy's weights so that actions taken in successful episodes become more likely and actions from failed ones become less likely. The mechanism is the policy gradient theorem, made computable by the log-derivative trick, which weights each action by the full Monte Carlo return of its rollout. CartPole is the gentlest place to see this work — but also to feel its flaw: because the weight is a whole noisy trajectory's return rather than a one-step estimate, the gradient is unbiased but high-variance, so training lurches around and learns slowly. Watching that variance firsthand is the whole point, and it motivates the baseline and actor-critic fixes in the projects that follow.
REINFORCE vs. DQN
REINFORCE and DQN (Deep Q-Network) represent the two primary branches of reinforcement learning: policy-gradient methods and value-based methods.
- DQN (Value-Based): Learns to estimate the expected future reward (value) of taking each action in a given state (using a critic or value network), and then acts greedily based on those estimates. It is off-policy and relies on an experience replay buffer to learn from past data.
- REINFORCE (Policy-Gradient): Bypasses estimating action values entirely. It directly outputs a probability distribution over actions (the policy) and updates its weights using Monte Carlo returns from complete rollouts. It is strictly on-policy.
Analogy: Imagine learning to play golf.
- A DQN golfer (value-based) tries to calculate the exact expected score or landing position for every possible club and swing angle, and then picks the one with the highest estimated value.
- A REINFORCE golfer (policy-gradient) doesn't calculate any values. They just swing. If the ball lands in or near the hole, they try to repeat that exact swing next time. If the ball lands in a pond, they avoid that swing in the future.
While DQN is often more sample-efficient because it can reuse past data, REINFORCE is mathematically simpler, directly optimizes the policy, and works naturally in continuous action spaces where calculating values for infinitely many actions is impossible.
What's in this directory
| File | Role |
|---|---|
pg_lib.py | The shared core for all of Phase 4. The policy/critic network, the vectorized environment builder, GAE, the rollout collector, and the evaluator. Projects 20–25 import it and swap exactly one piece each. |
reinforce.py | REINFORCE itself, plus the two measurements that make this project worth doing: how noisy the gradient estimate actually is, and how fast averaging buys the noise back. |
python3 reinforce.py all # ~8 min on 12 CPU cores
The algorithm is one line
Everything REINFORCE does is contained in the choice of a single variable — the
weight w_t that multiplies each action's log-probability:
loss = -(logp * w).sum()
Set w_t to the return and you have REINFORCE. Set it to the return minus a
baseline and you have project 20.
Set it to a bootstrapped advantage and you have
A2C (project 21).
Set it to a clipped importance-weighted advantage and you have
PPO (project 22). The
whole phase is an argument about what belongs in w_t — everything from here on is
the same one-line update with a different value plugged into w. This project takes
the two simplest positions:
| weighting | w_t | the claim it makes |
|---|---|---|
| full-episode return | G₀ — the whole episode's return, on every action | every action in a good episode was a good action |
| reward-to-go | Gₜ — only the reward that arrived after the action | an action cannot be credited with a reward that preceded it |
The second is obviously the more sensible credit assignment, and the interesting question is how much it is worth. That is measurable, so this project measures it.

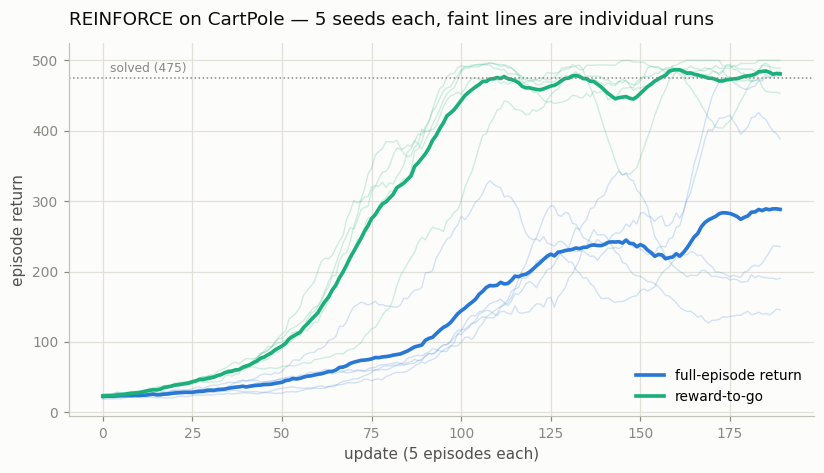

Both learn. One learns much better.
| weighting | final return (mean of last 20 updates) | per seed |
|---|---|---|
| full-episode return | 282 ± 125 | 188, 145, 390, 469, 217 |
| reward-to-go | 478 ± 11 | 498, 473, 484, 473, 465 |
Reward-to-go lands every seed in a tight band near the 500 ceiling. The full-return version gets there on none of them within the same budget, and its five seeds spread over a 324-point range — one run finds its way to 469, another stalls at 145. That spread is the variance the Key Insight promises, seen from the outside.
The change that produced it is deleting, from each action's weight, the rewards that were collected before that action was taken. Nothing else differs: same network, same learning rate, same episodes, same seeds.
Why it works, in numbers rather than adjectives

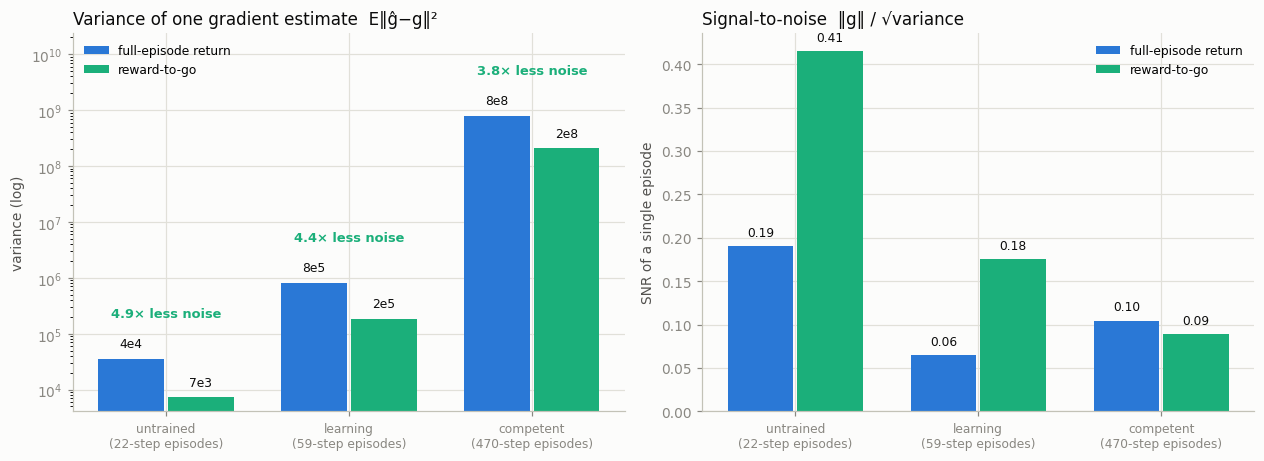

The reward-to-go argument is usually made by waving at "extra noise". It can simply be measured. Freeze a policy, draw 200 independent single-episode gradient estimates, and look at how far they scatter around their own mean:
| checkpoint | episode length | variance, full return | variance, reward-to-go | ratio |
|---|---|---|---|---|
| untrained | 22 steps | 3.6 × 10⁴ | 7.3 × 10³ | 4.9× less |
| learning | 59 steps | 8.2 × 10⁵ | 1.8 × 10⁵ | 4.4× less |
| competent | 470 steps | 7.9 × 10⁸ | 2.1 × 10⁸ | 3.8× less |
Both estimators are aimed at the same gradient — the rewards-before-the-action
term has zero mean, so dropping it changes the noise and not the target. That is
also why this project runs at γ = 1 (no discount)
while the rest of the phase uses γ = 0.99. In plain terms: with a discount, an
action at step t gets its future rewards shrunk by γᵗ before they are summed —
so the full-return weight (which sums over the whole episode) and the reward-to-go
weight (which sums from step t onward) end up multiplying the same reward by two
different discount powers. That turns them into estimates of two subtly different
targets, and comparing their variance would no longer be a fair fight — you'd be
comparing apples to two slightly different apples. CartPole is hard-capped at 500
steps, so the undiscounted return is finite and no discount is needed to keep the
math honest.
The right-hand panel holds the number that actually decides whether learning
happens: the signal-to-noise ratio (SNR) of one episode's gradient, ‖g‖ / √variance
— the same idea as trying to hear a friend's voice (the signal) over a noisy crowd
(the noise): a high SNR means the voice comes through clearly, a low one means you
mostly hear noise and can barely make out what was said. Read it and the picture is
grimmer than the left panel suggests.
The estimator gets worse as the agent gets better. For reward-to-go, SNR falls from 0.42 to 0.18 to 0.09 as the policy improves. At the competent checkpoint a single episode's gradient is around 90% noise — and there the two weightings are equally doomed, because reward-to-go's 3.8× variance advantage is cancelled by the true gradient itself shrinking as the policy runs out of things to fix. This is not a CartPole quirk. It is structural:
- a better policy survives longer, so episodes get longer (22 → 470 steps),
- a longer episode contains more actions, each contributing its own randomness,
- and the returns themselves grow, so the weights multiplying that randomness grow with them.
Success makes the measurement harder, and nothing inside REINFORCE pushes back.
The only fix REINFORCE has, and its price
If one estimate is too noisy, average more of them. That works — at exactly the
rate the central limit theorem promises and not one bit faster. The central limit
theorem is the statistical fact behind
"averaging cancels out noise": if you average n independent noisy measurements,
the variance of the average shrinks proportionally to 1/n — but the error you
actually feel (a standard deviation, √variance) only shrinks as 1/√n. Think of
polling voters: to cut your polling error in half, you don't need twice as many
people surveyed — you need four times as many, because error shrinks with the
square root of sample size, not the sample size itself.

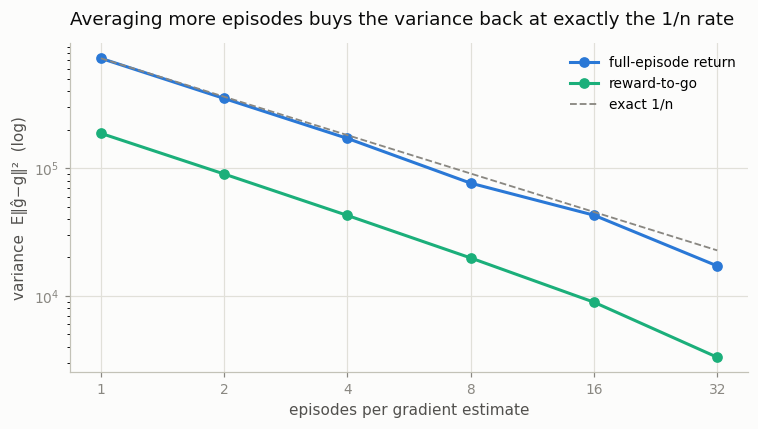

The measured curve sits on the 1/n reference line for both weightings. Which
means: to halve the error (which goes as √variance) you must quadruple the
number of episodes. Cutting the noise 10× costs 100× the interaction with the
environment.
That sentence is the motivation for the rest of the phase. REINFORCE is not wrong — it is unbiased, it converges, and given unlimited episodes it finds the optimum. It is expensive, and the price is set by a variance the algorithm does nothing about. Everything that follows is an attempt to get the variance down without buying more episodes:
- project 20 subtracts a baseline — another 3–5×, free,
- project 21 bootstraps a critic, replacing the noisy tail of the return with an estimate,
- project 22 reuses each batch several times, so the same episodes pay for several steps.

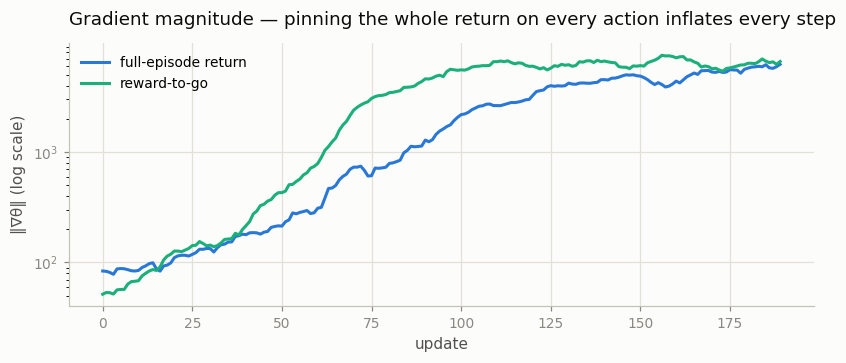

A detail worth stealing: watch the gradient norm
The full-return weighting does not only add noise, it inflates the size of every
gradient — by a factor that grows as episodes lengthen, because every action is
now multiplied by a number as large as the entire episode's return. Under a fixed
learning rate that is a step-size problem wearing an algorithm's clothes, and it
is why an untuned REINFORCE so often diverges outright rather than merely learning
slowly. An earlier version of this project ran at lr = 1e-2 and drove three of
five seeds into a collapsed policy that scored 9 out of 500; the fix was not a
better algorithm but a smaller step. Reward-to-go keeps the weights smaller and
the steps saner, which is a second, quieter reason it wins.
What to take away
The policy gradient theorem hands you an unbiased estimator and says nothing about whether it is usable. The gap between those two things is enormous, it is measurable in an afternoon, and it widens in exactly the regime you care about — a policy that has nearly become good. Every remaining project in this phase is a different attack on that gap, and the reward-to-go trick measured here is the smallest and cheapest of them: 4× less noise, in exchange for deleting a term that could never have carried any information in the first place.
