Build a Gridworld

Key Insight

A reinforcement-learning problem is fully described by five pieces — states, actions, transition probabilities, a reward function, and a discount factor — bundled together as an MDP. A gridworld is the smallest environment where you can write all five down by hand and read them straight off a picture, so it turns abstract symbols into something you can point at. Building one yourself forces you to decide concretely what counts as a state, what the transition function does when you walk into a wall, and where the reward actually lives — the three spots where a beginner's mental model is usually fuzziest.

---

What's in this directory

File	Role
gridworld.py	The reusable library: a Gridworld class that turns a picture (walls, goals, pits) into explicit P and R arrays, plus value iteration and policy evaluation implemented as a few lines of numpy on top of those arrays. Imported by projects 02, 04, and 05.
build_gridworld.py	Builds the 5×5 world, prints and sanity-checks each of the five pieces, then solves it.
plot_style.py	Shared matplotlib styling for every figure in this phase.

python build_gridworld.py     # ~2 s on CPU

The world

A 5×5 grid with a +1 goal in the top-right corner, a −1 pit two rows below it, three walls, a −0.04 penalty on every step (being alive is mildly expensive, so dawdling is discouraged), and slippery movement: each move goes where you aimed with probability 0.8 and skids perpendicular with probability 0.1 each way.

The five pieces, as concrete objects

The whole point of the exercise is that (S, A, P, R, γ) stops being notation and becomes five inspectable Python values:

Piece	In this code	Shape
S	gw.states, a list of (row, col) cells	22 states
A	up, right, down, left	4 actions
P	gw.P[s, a, s'] = probability of landing in s'	(22, 4, 22)
R	gw.R[s, a] = expected immediate reward	(22, 4)
γ	gw.gamma	scalar, 0.9

And the three fuzzy spots the Key Insight mentions become explicit decisions you can point at in gridworld.py:

1. What counts as a state? A walkable cell. Wall cells are not states — they simply don't appear in gw.states, so P has no rows for them. There are 25 cells but only 22 states.
2. What does the transition function do at a wall? The move fails and you stay put (a "bump"). Crucially this is not a special case in the algorithms — it is just probability mass on P[s, a, s]. Once built, P contains everything; no algorithm ever asks "was that a wall?".
3. Where does the reward live? On arrival: each transition pays the step penalty plus the bonus of the cell being entered, and R[s, a] stores the expectation of that over the slip. Entering a terminal cell ends the episode, which we encode by making terminals absorbing: every action from them self-loops with reward 0, so the discounted return simply stops growing.

The script prints a few transition distributions worth staring at. Aiming right at the goal from the cell beside it is not a sure thing — and the expected reward already prices that in:

P(s' | s=(0, 3), a=right):
   -> (0, 3): 0.10   <- bump (stayed put; the "up" slip hit the grid edge)
   -> (0, 4): 0.80   <- terminal (+1 goal)
   -> (1, 3): 0.10
R(s, a) = +0.760      = 0.8 · (−0.04 + 1) + 0.2 · (−0.04)

Three sanity checks every hand-built MDP should pass (the script asserts all of them): every P[s, a, :] sums to exactly 1, bumping into a wall keeps you in place, and terminal states absorb with zero reward.

Solving it

Because P and R are explicit arrays, computing the optimal value function needs no interaction, no samples, and no learning — just repeated application of the Bellman optimality backup, which is one line of numpy:

Q = R + gamma * P @ V      # (S, A): value of each action if V were correct
V = Q.max(axis=1)          # the optimality backup

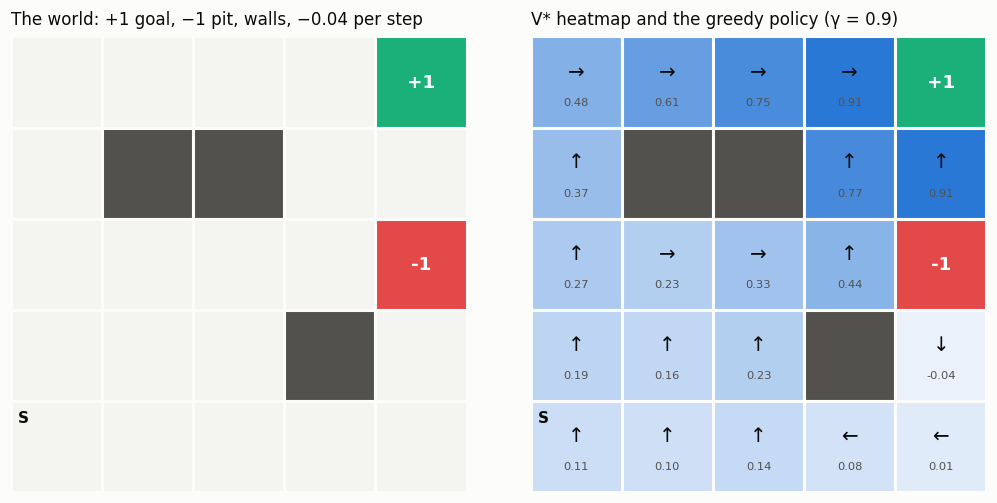

Value iteration converges in 43 backups. The right panel of the figure shows V* as a heatmap with the greedy policy's arrows on top. Two details reward a close look:

• The slip shapes the route. The optimal policy avoids walking beside the pit when it can help it: the arrows at (4, 3) and (4, 4) head away from the pit column and rejoin the safe corridor, because an 80/10/10 move next to a −1 terminal is a bad bet.
• Values fade with distance. V* falls from 0.91 beside the goal to 0.11 at the start — that is the discount factor compounding over the ~8 steps the goal is away, plus the accumulated step penalties.

The library also exposes policy_matrices, policy_evaluation_solve, and policy_evaluation_iterative for evaluating a fixed policy — project 02 is built entirely on those.
