DDPG on Pendulum

Key Insight

DDPG (Deep Deterministic Policy Gradient) carries DQN's off-policy, replay-buffer recipe over to continuous control, where max over all actions is no longer a lookup you can compute. It replaces that impossible max with a learned deterministic actor that outputs the single best action directly, while a critic scores it — the deterministic policy gradient flows the critic's gradient back into the actor through the chain rule. Pendulum — swing a single pole upright with a continuous torque and hold it there — is the smallest task where you can watch DDPG learn, and also watch it wobble: with one actor, one critic, and no fix for overestimation, its learning curve is famously fragile, which is exactly the instability TD3 and SAC were built to cure.

---

What's in this directory

File	Role
cc_lib.py	The whole of Phase 5 lives here. One Agent, one Config. DDPG, TD3 and SAC are the same class with different flags set — project 27 through project 31 all import this file and flip fields.
ddpg.py	The three experiments below: does it learn, is the critic honest, and where does its exploration actually come from.

python3 ddpg.py       # ~8 min on 12 hyperthreads

The one problem this whole phase exists to solve

Q-learning picks its action like this:

a* = argmax over a of Q(s, a)

argmax just means "the input that gives the biggest output" — here, the action with the highest score.

In a game with four buttons, that is a lookup: score all four actions, take the best one. Easy. But a robot arm does not have four buttons. It has six joints, and each one takes a continuous torque — any real number in a range, like 0.10 or 0.1001. There is no "all four" to score, because between any two torques there is always another torque. The list you would have to search is infinite.

So argmax has quietly stopped being a lookup and become a full search problem — and you would have to solve it from scratch at every single timestep, thousands of times a second. That is far too slow to be usable.

DDPG's answer is the one idea the whole of Phase 5 is built on:

Train a network to output the maximizing action directly. The actor is the argmax.

Instead of searching for the best action every time, train a second network whose only job is to guess it in one shot. Two networks, two jobs:

• the critic Q(s, a) scores an action — "how good is doing a in state s?"
• the actor mu(s) proposes one — "here is the action I think is best in state s."

To make the actor better, ask the critic a question it can already answer: if I nudged this action slightly, would your score go up or down? Then move the action in whichever direction raises the score. Repeat forever.

That question has a name — it is the gradient dQ/da, the direction in action-space that increases the critic's score fastest — and in code the whole thing is a single line:

pi_loss = -self.q1(o, self.actor(o)).mean()   # "make the critic like my actions more"

Read it right-to-left: take the actor's action, feed it to the critic, and put a minus sign in front. Minimizing -Q is the same as maximizing Q, and "maximize the critic's score of my own action" is exactly the instruction we wanted.

That one line is the deterministic policy gradient. It works because autograd — PyTorch's automatic differentiation — applies the chain rule through the critic and into the actor for free: it computes how the score changes with the action (dQ/da), then how the action changes with the actor's weights (da/dtheta), and multiplies them. You never write either derivative yourself.

It learns

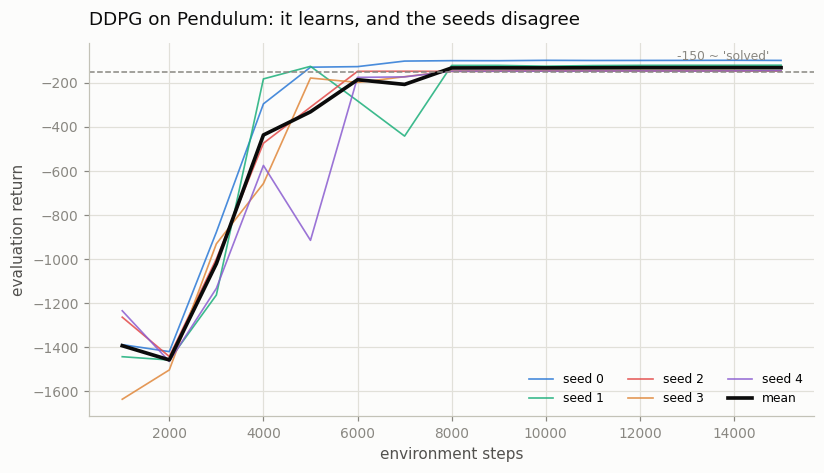

Five seeds, 15,000 environment steps each. A random policy scores about -1200; about -150 is the usual "solved" line for Pendulum.

seed	0	1	2	3	4	mean
final return	-98	-120	-146	-144	-145	-131

Every seed learns, and every seed lands in or near the solved band. But look at the spread: 49 points between the best seed and the worst, on a task this small. That gap is not evaluation noise — it is a real difference in the policies DDPG settled on. Hold that thought, because it is the reason project 27 and project 28 exist.

The critic is lying, and you can measure it

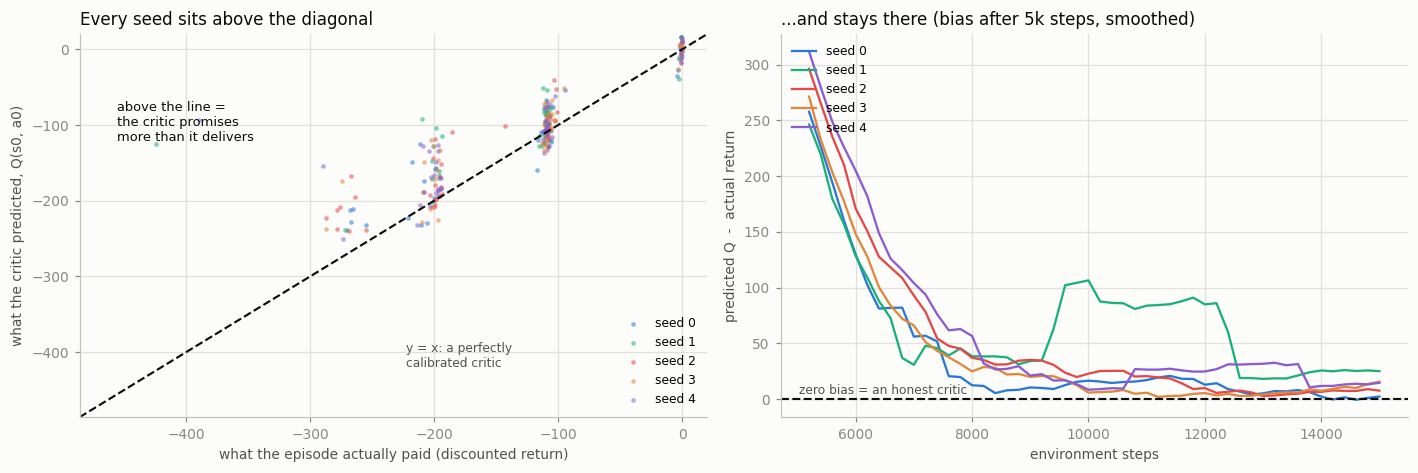

Here is the experiment worth running, because almost nobody does: at the start of every episode, record what the critic predicted — Q(s0, a0) — and then record what the episode actually paid (its discounted return). Compare the two.

A perfectly honest critic would put every point on the y = x line. Every seed sits above it.

=== overestimation (mean over episodes after step 5k) ===
  seed 0: predicted   -117.7   actual   -127.1   bias    +9.4
  seed 1: predicted   -100.7   actual   -147.1   bias   +46.4
  seed 2: predicted   -128.1   actual   -148.2   bias   +20.1

The critic consistently promises more than the episode delivers — by 9 to 46 points depending on the seed. The right-hand panel shows how that gap behaves over training: it starts enormous (the critic is simply untrained), shrinks fast as the critic learns… and then stops shrinking while still above zero. It never reaches the honest line. The critic does not stay wrong because it has not learned enough; it stays wrong because something is holding it up.

This is overestimation bias, and its cause is structural rather than a bug. The critic's estimates carry random error. The actor is trained to find the actions the critic likes most. So the actor is, by construction, a machine for seeking out the critic's most over-optimistic mistakes. Any action the critic happens to overrate becomes an action the actor is pulled toward. The errors never average out, because the actor is actively hunting for them.

Analogy. Ask ten friends to guess what your used car is worth, then always sell to the highest bidder. The winning bid is not the car's value — it is the value plus whichever friend was most wrong in the optimistic direction. Do this repeatedly and you will come to believe your car is worth more than it is. That is exactly what a max (or an actor trained to imitate one) does to a noisy critic.

Everything in project 27 — twin critics, target policy smoothing — is an attempt to stop this. Now you have the number they are trying to drive to zero.

Where does DDPG's exploration actually come from?

A deterministic actor has an obvious problem: given the same state it always outputs exactly the same action, so it can never try anything new. DDPG therefore bolts exploration on from outside — and it does so in two places that tutorials tend to blur together:

1. Gaussian action noise — a small random wobble added to every action the actor takes. ("Gaussian" just means the wobble is drawn from a bell curve: usually tiny, occasionally larger.) If the actor says "torque 0.30", the agent might actually apply 0.28 or 0.33, so it never repeats itself exactly.
2. A random warmup (start_steps) — before the policy is allowed to act at all, the agent takes completely random actions for the first 1,000 steps, filling the replay buffer with varied experience for the critic to learn from.

Everyone talks about (1). So the honest thing to do is switch it off and see what breaks. Removing one piece at a time to find out what it was worth is called an ablation.

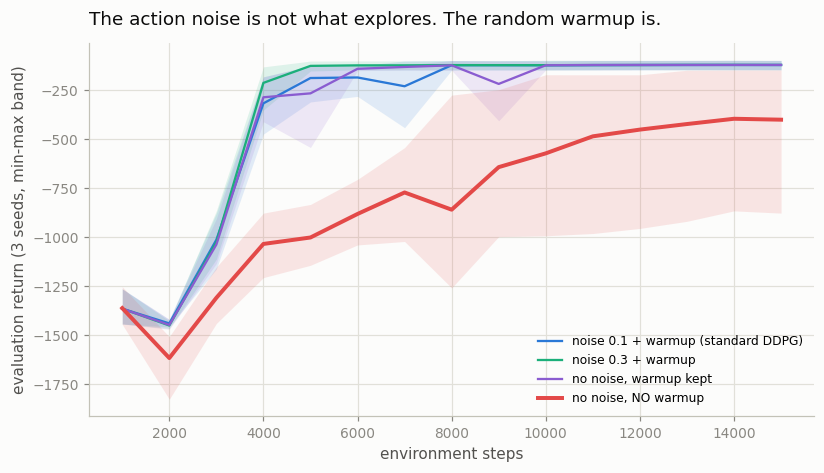

what the agent gets	final return (3 seeds)
noise 0.1 + warmup — standard DDPG	-121
noise 0.3 + warmup — more noise	-121
no noise at all, warmup kept	-121
no noise, no warmup	-406 (seeds: -887, -147, -184)

Read the third row again. Turning the action noise completely off leaves the final return unchanged — -121, the same as standard DDPG to the point. Tripling the noise does nothing either. On this task, the exploration mechanism everybody names is doing no work at all.

The fourth row is where it breaks. Remove the 1,000 random warmup steps as well and the mean collapses to -406, with one seed in three failing outright at -887 — it never learns to swing the pendulum up at all.

So the exploration that matters here is the random warmup, not the noise. Why? Pendulum is a small task with a dense reward: every state tells you something useful (being upright is always better than hanging down), and the action is a single number. One thousand random actions are enough to show the critic the whole story. After that, the actor's own gradual improvement carries it through plenty of new states on its own; jittering each action adds nothing the task pays for.

Two lessons, and the second is the one that generalizes:

1. On this task, DDPG's famous action noise is decoration. The buffer is filled by the warmup, and that is enough.

2. An ablation is only as good as the thing it removes. Had this project tested only "noise on vs noise off" — which is the ablation the tutorials imply — it would have concluded "exploration does not matter for DDPG", drawn a flat line, and been completely wrong. The effect was hiding in a different knob, and it only showed up once both knobs were removed together. So when an ablation shows no difference at all, the first question to ask is not "does this component matter?" but "is something else quietly doing this component's job for it?"

   Unplug the kettle and the tea still gets made — so you conclude the kettle is useless. In fact your flatmate has been quietly boiling water on the stove all along. To learn what the kettle does, you have to switch off the stove too.

Do not over-generalize the first lesson: on a sparse-reward task where reward only appears after a long, specific sequence of actions, a 1,000-step random warmup finds nothing at all, and sustained exploration becomes the whole problem. That is what Phase 8 is about.

What to take away

DDPG works. On Pendulum it works on every seed, and this project is where the machinery — replay buffer, target networks nudged along by Polyak averaging, an actor trained through the critic — should stop feeling like a list of tricks and start feeling like one idea.

But two cracks are already showing, and they are what the rest of Phase 5 is about:

• The critic is systematically optimistic (+9 to +46 here, and the gap stops shrinking instead of closing). TD3 attacks this head-on with twin critics (project 27).
• The exploration is bolted on — and, as the experiment above shows, it is not even bolted on where you thought. SAC removes the bolt entirely by making the policy itself stochastic and then paying it to stay random. That is the maximum-entropy idea project 28 and project 29 are built on.

DDPG is, as the guide puts it, a pedagogical stepping stone. Build it once so you know exactly what TD3 and SAC are fixing — and then, as the phase's own advice goes, don't ship it.
