Reparameterization Audit

Key Insight

SAC's actor outputs a Gaussian that is then squeezed through a tanh squashing function so every action stays inside the environment's bounds, and it trains that actor with the reparameterization trick — sampling plain noise and pushing it through mean + std · ε so gradients flow through the otherwise-random action. The catch is that squashing a Gaussian through tanh changes its probability density, so the log-probability used in the loss needs a correction term; get that correction wrong and SAC keeps running while silently learning the wrong entropy, producing a policy that looks trained but quietly underperforms. Auditing this one formula by hand is the cheapest way to catch a bug that no error message will ever report.

---

What's in this directory

File	Role
reparam_audit.py	Five numerical checks on the log-probability formula, then a training run that measures what the bug costs.

python3 reparam_audit.py checks    # the five checks only, ~15 seconds
python3 reparam_audit.py           # checks + the training comparison, ~6 min

The actor being audited lives in ../26-ddpg-on-pendulum/cc_lib.py (SquashedGaussianActor). Its tanh_correction flag is what this project switches off in order to measure the damage.

The formula, and why it needs a correction at all

SAC's actor does two things. First it samples an unbounded number from a Gaussian:

u = mu(s) + sigma(s) * eps          eps ~ N(0, 1)

Reading that line: the network looks at the state s and outputs two numbers — a centre mu ("the action I think is best") and a spread sigma ("how unsure I am"). Then eps is a random draw from a standard bell curve (N(0, 1) — usually near zero, occasionally further out). Multiply the spread by the random draw, add it to the centre, and you have a random action that is usually close to what the network wanted.

There is one problem: u can be any number, and real motors have limits. So SAC squashes it into the legal range with tanh, an S-shaped function that takes any input and gently bends it into the interval from -1 to +1:

a = tanh(u)                         always lands in (-1, 1)

Now the problem this project is about. SAC needs to know how likely the action a was — it feeds that likelihood into its entropy bonus, the thing that keeps the policy exploring. And squashing an action changes how likely it was.

Here is the intuition, with no math. Think of probability as sand spread along an infinite line. tanh crushes that whole infinite line into the short interval from -1 to +1. Near the middle, the crushing is gentle. Near the two ends it is extreme — an enormous stretch of the original line gets compressed into a thin sliver next to +1. So sand piles up near the edges: it becomes much denser there. If you keep reporting the original density after crushing, you are describing a pile of sand that no longer exists.

The correction term measures exactly how much each point got squeezed, and divides that squeezing back out:

log p(a) = log p(u) - SUM_i log(1 - tanh(u_i)^2)

Drop that second term and nothing crashes. The agent trains. The loss goes down. It is simply optimizing the entropy of a distribution that is not the one the environment ever saw.

Check 1 — is it even a probability distribution?

The cheapest possible test, and it needs no RL at all.

A probability density has one rule it can never break: add it up over every possible outcome and you must get exactly 1. ("Something must happen" — the chances of all the outcomes together have to be 100%.) Adding up a value across a continuous range like this is called integrating, and it is just a very careful sum.

So: add it up.

$ python3 reparam_audit.py checks

1. NORMALIZATION — does exp(log p) integrate to 1 over a in (-1, 1)?
   with correction:    1.001359   <- a probability density
   without correction: 0.665193   <- integrates to 0.67, not a density at all

The corrected version integrates to 1.0. (The 0.0014 excess is numerical error in the integration itself, which has to evaluate the function right up against the ±1 boundary, where it is at its nastiest.) The uncorrected version integrates to 0.67.

That is not "slightly off". Something that sums to 0.67 is not a probability distribution at all, and every quantity SAC computes from it — the entropy bonus, the temperature gradient — is meaningless. One check, two lines of output, and the bug is already caught.

Check 2 — does the formula match reality?

Sample 400,000 actions from the actor, histogram where they actually landed, and overlay what each formula claims the density is.

2. DENSITY — analytic log p vs the histogram of 400k sampled actions
   with correction:    max |analytic - empirical| = 0.0375
   without correction: max |analytic - empirical| = 0.8110

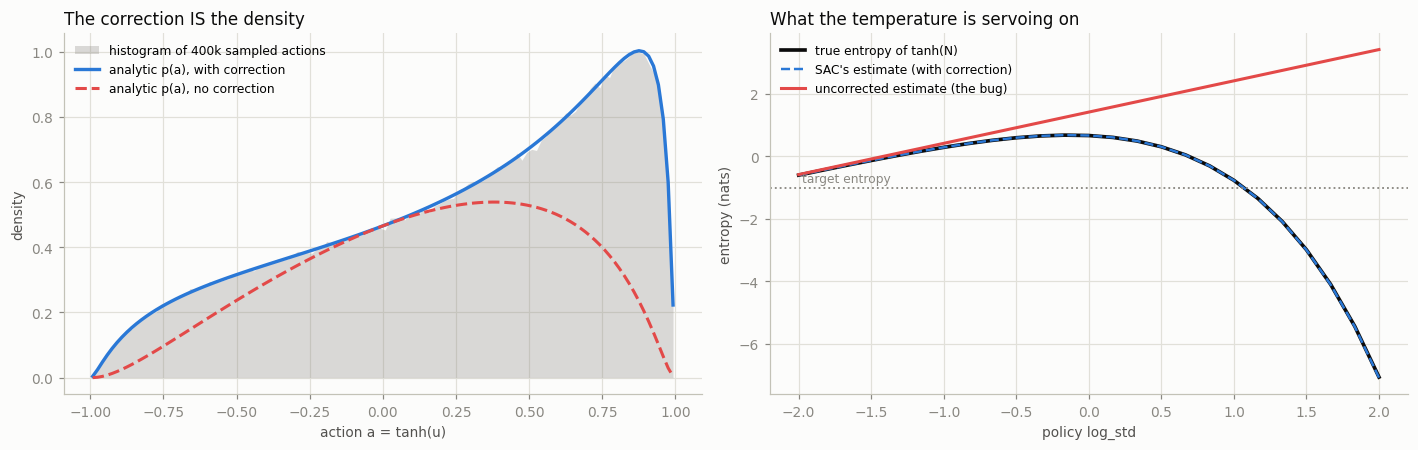

In the left panel, the grey histogram is where the actions really went. The blue line (with correction) lies right on top of it. The red dashed line (without correction) sags below it everywhere, and completely misses the pile-up against the walls — exactly the crushed-sand effect described above.

Check 3 — the one that actually matters

This is the check worth remembering, because it explains why the bug is so damaging, not merely that it is wrong.

Automatic temperature tuning (project 29) works by watching the policy's entropy and pushing it toward a target value. Entropy means "how random is my policy". So that entropy number had better be true.

The right-hand panel above sweeps the policy's spread (log_std) and plots three things: the true entropy of the squashed policy, SAC's estimate of it, and the uncorrected estimate.

3. ENTROPY — the quantity automatic temperature tuning targets
    log_std     true H   SAC est.  no correction
      -2.00     -0.598     -0.599         -0.581
       0.00      0.669      0.670          1.419
       1.00     -0.764     -0.766          2.419
       2.00     -7.059     -7.077          3.419

Look at the last row. The policy has become very spread out, so nearly every action it samples gets squashed hard against -1 or +1. The policy is now close to a coin flip between "full left" and "full right" — it has saturated — and its true entropy has collapsed to -7.06.

The uncorrected formula reports +3.42. It does not just get the number wrong; it gets the direction wrong. It announces "this policy is extremely random, relax" at the exact moment the policy has stopped exploring and pinned itself to the action limits. A temperature controller fed this number will keep pushing the policy to be more random, which saturates it further, which makes the lie bigger.

That is the real bug. Not a small numerical error — a control loop steering by a gauge that moves the wrong way.

Check 4 — the -inf that eats your actor

The literal textbook formula, log(1 - tanh(u)^2), is perfectly correct in exact mathematics — and unusable on a real computer, which stores numbers with only limited precision (float32, about 7 decimal digits).

4. NUMERICAL STABILITY — literal log(1 - tanh(u)^2) vs the stable form
        u        literal          +1e-6         stable
      1.0        -0.5514        -0.5514        -0.5514
      8.0       -18.3628       -19.4933       -18.3052
     10.0            inf       -37.1034       -32.3052
     20.0            inf      -187.1034      -162.3052

Here is the chain of events. tanh(10) is 0.99999999... — so close to 1 that float32 cannot tell the difference and simply rounds it to exactly 1.0. Then 1 - tanh(u)^2 is exactly 0. Then log(0) is -inf (minus infinity), the log-probability becomes +inf, and on the very next update every weight in the actor turns into NaN ("not a number"). Training is over — the network is now permanently garbage.

Note when this strikes: at large |u|, which is exactly a saturated actor — one slamming its actions against the limits. The formula breaks precisely in the situation you most need it to survive.

The popular fix is to add a tiny number ("epsilon") to stop the log(0): log(1 - tanh(u)^2 + 1e-6). Look at the +1e-6 column above. It does stop the crash — and it is still wrong. The epsilon quietly puts a floor under the correction, so instead of the true value it returns whatever that arbitrary floor allows. At u = 20 it is off by 25 nats — an enormous error.

You have traded a loud failure (a crash you would fix in ten minutes) for a quiet one (a wrong number you will never notice). That is a bad trade, and it is the theme of this entire project.

The identity used in cc_lib.py needs no epsilon and stays exact everywhere:

# log(1 - tanh(u)^2), rewritten so it never evaluates log(0)
correction = 2 * (math.log(2) - u - F.softplus(-2 * u))

Check 5 — why "reparameterization" and not REINFORCE?

There are two different ways to work out which direction to push the actor, and both are correct — they aim at the same answer. An estimator is just a recipe for guessing a number from random samples, and because the samples are random, every estimator's guess wobbles a bit.

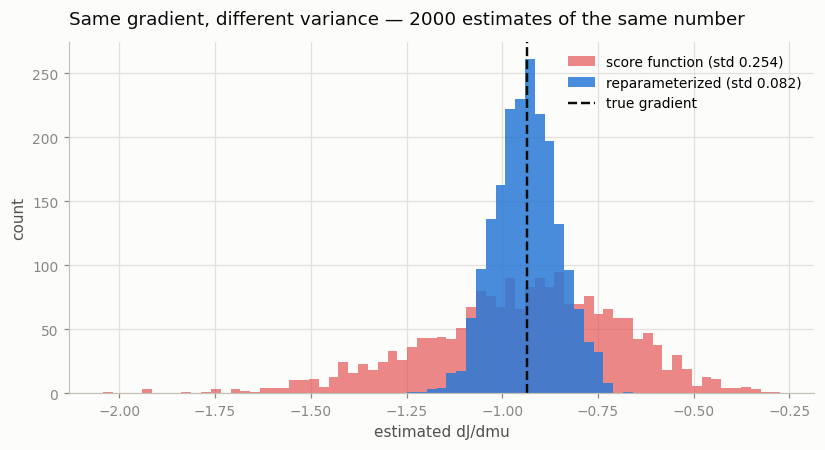

So run each recipe 2,000 times on the identical problem, and see how much its answers scatter:

5. GRADIENT VARIANCE — reparameterized vs score-function (REINFORCE)
                estimator       mean        std
          reparameterized    -0.9359     0.0824
           score function    -0.9440     0.2536

They agree on the answer: -0.936 vs -0.944, the same number once you allow for noise. That is the mean column, and it confirms neither one is cheating.

The std column is where they part company. It measures how widely the 2,000 guesses were scattered around that answer — small std means "every attempt gave nearly the same result"; big std means "the answers were all over the place". The score-function recipe's scatter is 3.1× wider.

Both are aiming at the same target. One of them has a much steadier hand.

The reason is structural. The score-function estimator only ever asks "that action scored well, so make actions like it more likely" — it treats the critic as an opaque black box and has to infer the right direction from samples. The reparameterized estimator differentiates through the sampled action into the critic, so it can ask the strictly more informative question: "which direction should I nudge this action to raise its score?" It is handed dQ/da directly instead of guessing it. That extra information is the variance reduction — and it is the same trick, for the same reason, as the deterministic policy gradient in DDPG (project 26).

The consequence: what the bug actually costs

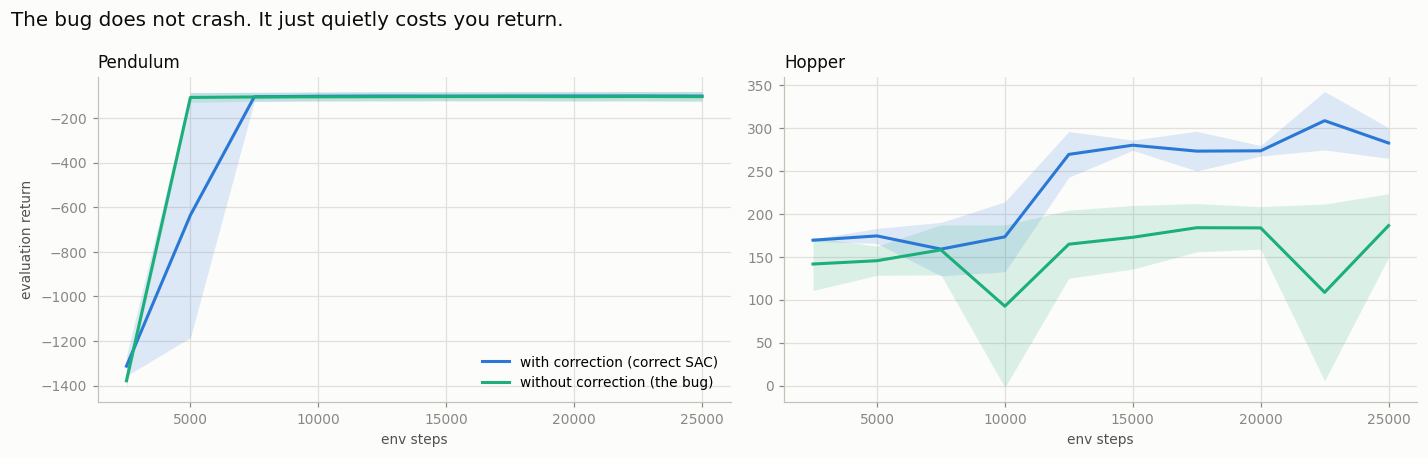

Checks are theory. Here is SAC trained with the correction and without it, on two tasks, two seeds each, identical in every other respect.

task             with correction    without   entropy/dim (with)   (without)
Pendulum-v1                 -101       -103                -0.88       -0.94
Hopper-v5                    296        147                -1.00       +3.40

Two tasks, two completely different verdicts — and the difference between them is the most useful thing in this project.

On Pendulum the bug is almost invisible. -101 with the correction, -103 without. If this were your only test, you would conclude the correction is optional and delete it. Pendulum has one action dimension, and the correction is a sum over action dimensions — so there is exactly one term to get wrong, and the policy never needs to push its actions hard against the limits to solve the task.

On Hopper the same bug halves the return. 296 drops to 147. Hopper has three action dimensions, so the error is three times larger, and the walking gait it has to find genuinely does push actions toward their limits.

Now look at the last column, which is the mechanism rather than the score. The correct agent reports an entropy of -1.00 per action dimension — exactly the target it was aiming for. The broken agent reports +3.40.

Its temperature controller (project 29) is being told the policy is far more random than the target, so it drives alpha down and down, trying to make an already-saturated policy less random. It is a thermostat wired to a thermometer that reads the wrong room. Nothing crashes. The agent just quietly ends up half as good.

And the scaling of the damage is the warning: the bug gets worse with the number of action dimensions. One joint hid it completely. Three joints halved the score. A 17-joint Humanoid is where you would finally notice — long after you had stopped suspecting your log-probability.

What to take away

This bug is worth a whole project not because it is hard to fix — it is one line, and cc_lib.py has it right — but because it is invisible.

There is no crash, no NaN, no warning. The loss curve looks healthy. The agent improves. Everything about the run says "working", and the only symptom is a final score lower than it should have been — which, in RL, looks exactly the same as an unlucky seed, a hard task, or a slightly-off hyperparameter. Those are the three things you would blame, and you would spend a week on them. You would never think to inspect your log-probability, because your log-probability never complains.

Three checks that cost fifteen seconds — does it integrate to 1, does it match the histogram, does the entropy move in the right direction — settle it permanently. Write them once; run them whenever you touch the actor. And the lesson generalizes well past SAC: any time you transform a random variable and keep using its density, you have taken on a silent debt. A numerical check is how you find out whether you actually paid it.
