Value Iteration on FrozenLake

Key Insight

FrozenLake is the smallest Gymnasium environment whose dynamics are fully known, which is exactly what value iteration needs: when the transition probabilities and rewards are written down, you can compute the optimal value function V* by planning — repeatedly applying the optimality Bellman backup — instead of learning it from trial and error. Because the ice is slippery, the agent sometimes slides sideways instead of where it aimed, so the optimal policy must respect those random transitions and often points away from the nearest hole rather than straight at the goal. Visualizing V* as a heatmap over the grid and the greedy policy as arrows turns the abstract fixed-point computation into something you can see at a glance.

---

What's in this directory

File	Role
frozenlake_lib.py	The reusable library: extract dense P (S, A, S') and R (S, A) arrays from any Gymnasium toy-text env, value iteration, exact policy evaluation by linear solve, rollout evaluation, and the lake-drawing helper. Imported by projects 07 and 09.
value_iteration_frozenlake.py	Solves the slippery 4×4 and 8×8 lakes, draws V* + policy, checks the answer against 20,000 rollouts, and sweeps the discount factor.

python value_iteration_frozenlake.py     # ~30 s (the rollout check dominates)

From a black box to (P, R)

Gymnasium's toy-text environments carry their own dynamics tables: env.unwrapped.P[s][a] is a list of (probability, next_state, reward, terminated) tuples. mdp_arrays flattens that into the same explicit P (S, A, S') and R (S, A) arrays project 01 built by hand, and from there the whole MDP machinery of Phase 1 applies unchanged. The slip model it reveals: each move goes where you aimed with probability 1/3 and slides to each perpendicular direction with probability 1/3 — never backwards — and holes and the goal are absorbing.

With gamma = 1, V* is literally a probability

FrozenLake pays +1 for reaching the goal and nothing anywhere else, and the episode ends at every hole or goal. So with gamma = 1 the expected return from a state is the probability of eventually reaching the goal — the heatmap below reads as "chance of making it home from here", and the number in the start cell is a prediction the environment itself can grade:

map	V*(start) (planned)	measured success, 20k greedy rollouts
4×4	0.8235	0.8220
8×8	1.0000	1.0000

Two details make the check honest. The episode step limit is raised to 2000 (the default limit of 100 truncates a few slow-but-successful episodes and would bias the measurement down), and successful 4×4 episodes take 49 steps on average — the optimal policy is in no hurry, because with gamma = 1 wasted time costs nothing while stepping near a hole costs everything.

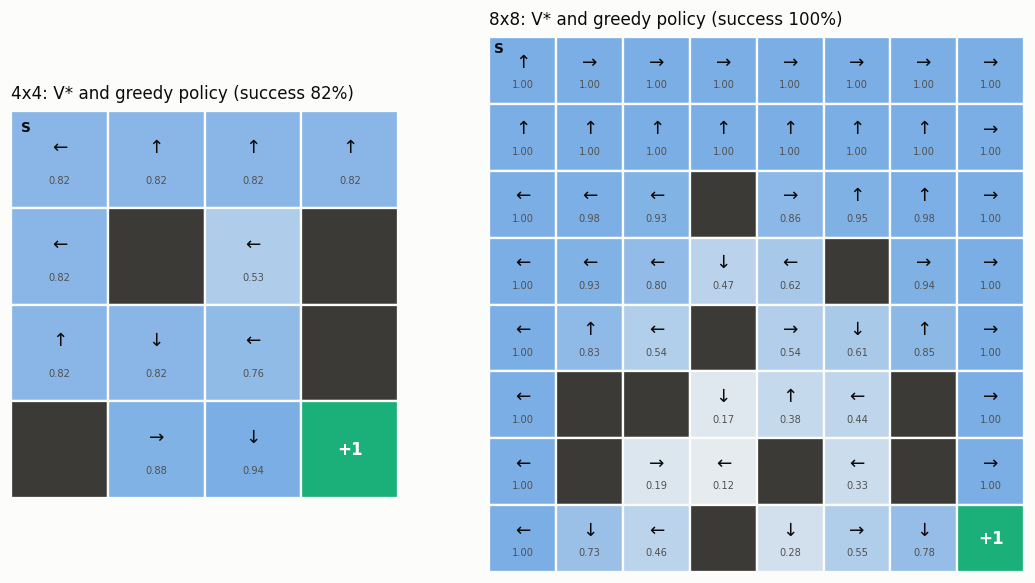

The arrows repay a close look:

• The policy fears holes, not distance. On the 4×4 map, the cell left of the first hole points ← — away from both the hole and the goal. Aiming left on the left edge can at worst slip up or down, never into the hole: the policy deliberately bumps into walls to censor the slip's bad outcomes.
• The 8×8 lake has a certain route. V* = 1.0 along the top and left edges: by hugging edges and corners the agent keeps every hole out of all three possible outcomes of each move, so an optimal player never drowns on this map. You would be unlikely to guess that from staring at the layout — planning proves it.

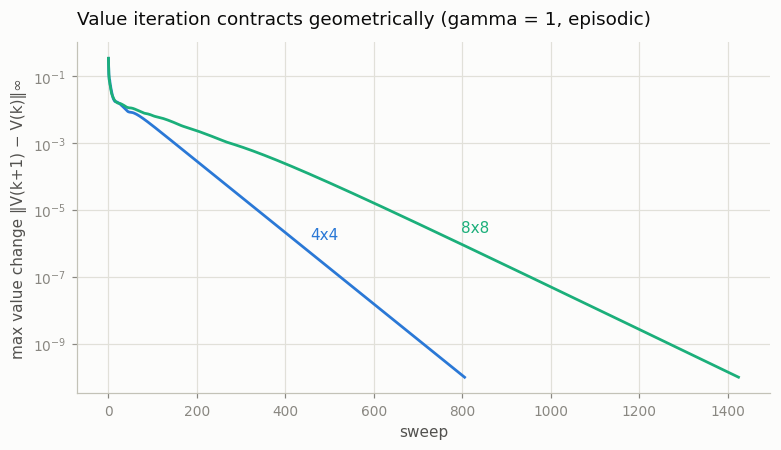

Convergence

Even at gamma = 1, where the generic contraction argument promises nothing, the backup converges geometrically: every sweep leaks value-error mass into the absorbing terminals — the same episodic effect project 02 measured. The 8×8 map needs more sweeps per decimal digit because information must propagate across twice as many cells.

What the discount changes

Re-solving the 4×4 map at gamma ∈ {1.0, 0.9, 0.5} (the script prints the full arrow table) shows the policy is mostly stable, but at gamma = 0.5 the start-cell arrow flips from the patient ← (wait against the wall, drift down safely) to the direct ↓: heavy discounting makes the slow safe route no longer worth its delay. The discount factor is not a numerical knob — it changes which behavior counts as optimal (project 04 studies exactly this).
