Eligibility Traces

Key Insight

Eligibility traces give every recently visited state a fading "credit tag," so that when a TD error finally arrives it updates not just the current state but all the states that led up to it, each in proportion to how recently it was seen. The trace-decay parameter λ slides smoothly between two extreme ways of learning. Setting λ = 0 gives plain one-step TD(0) (updating only the immediate last step), and λ = 1 recovers Monte Carlo (updating every step in the whole episode equally), with intermediate values usually learning fastest. Replacing traces cap a revisited state's trace at 1 rather than adding to it, which stops a state visited in a loop from earning unrealistically large credit. Picture a fading scent trail behind you: when reward finally appears, the freshest parts of the trail feel the strongest pull, but replacing traces ensures a spot you walked in a circle over doesn't smell overpoweringly strong, just "fresh." Sweeping λ ∈ {0, 0.5, 0.9, 1.0} lets you watch the bias–variance dial turn in real time.

---

What's in this directory

File	Role
td_lambda.py	Online TD(λ) with replacing and accumulating traces on the 19-state random walk, the classic (lambda, alpha) sweep, and learning curves at each λ's best step size.

python td_lambda.py     # ~60 s

The testbed: a random walk that grades itself

Sutton & Barto's long random walk is a 19-state chain: start in the middle, step left or right with probability 1/2, terminate with reward −1 at the left end and +1 at the right end, nothing in between. Its appeal is that the true value function is known exactly — V(i) = i/10 − 1, exactly linear — so prediction error needs no reference implementation, and states are revisited constantly (a walk crosses the same cells over and over), which is precisely the situation traces exist for.

The whole algorithm is five lines per step:

delta = r + gamma * V[s_next] - V[s]     # the TD error
e[s]  = 1.0                              # replacing trace (or e[s] += 1)
V    += alpha * delta * e                # every tagged state moves at once
e    *= gamma * lam                      # all tags fade

The trace vector e is the "fading scent trail": λ controls how far back along the trajectory a TD error reaches, turning one-step bootstrapping into something that spends each surprise on the whole recent past — the same spectrum as n-step returns, but with all n mixed geometrically and implemented in O(states) per step.

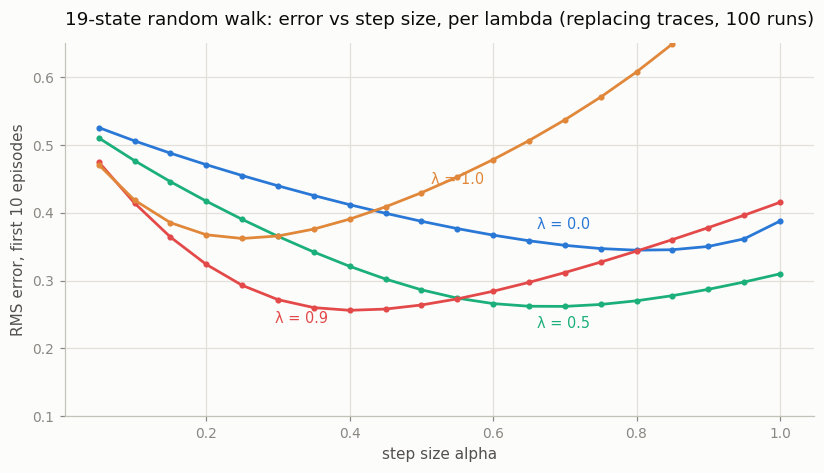

The classic sweep

RMS error against the true values, averaged over the first 10 episodes and 100 runs, as a function of the step size α — one U-curve per λ:

λ	best α	RMS at best α
0.0	0.80	0.345
0.5	0.70	0.262
0.9	0.40	0.256
1.0	0.25	0.362

The bias–variance dial, read off the plot: λ = 0 (pure TD) is stable at huge step sizes but slow — one episode moves information only one state per visit, so 10 episodes barely reach the ends of the chain. λ = 1 (Monte Carlo) propagates the terminal reward all the way back at once but pays for it in variance — it is competitive only at small step sizes and blows up earliest as α grows. λ = 0.9 wins the sweep: nearly Monte Carlo's reach with a fraction of its variance. "Intermediate λ learns fastest" is one of the most reliable empirical facts in tabular RL, and here it costs 60 seconds to verify.

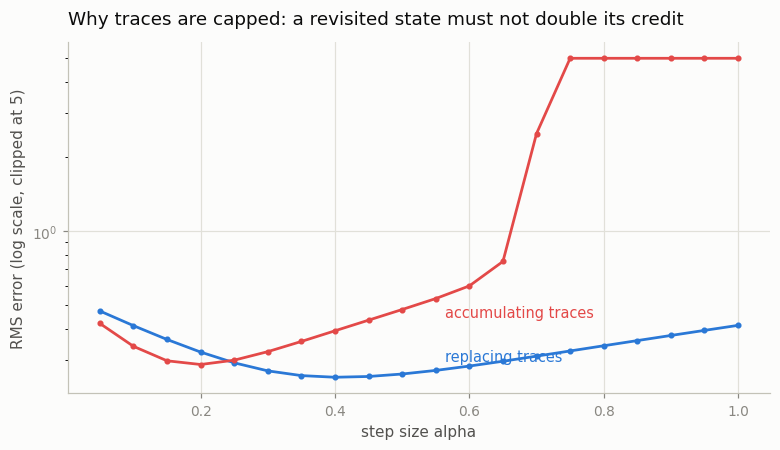

Why traces get capped

Same sweep at λ = 0.9, replacing vs accumulating:

With accumulating traces (e[s] += 1), a state visited five times in quick succession — routine in a random walk — carries a trace near 5, and its effective step size becomes 5 * alpha. Past alpha ≈ 0.6 that feedback loop detonates: the sweep's worst RMS error is ~1.5e35 (clipped in the figure), a genuine numerical explosion, not a plateau. Replacing traces cap the tag at 1 and stay bounded across the entire α range. One line of code — e[s] = 1 versus e[s] += 1 — is the difference between "slightly worse at tiny step sizes" and "diverges at practical ones".

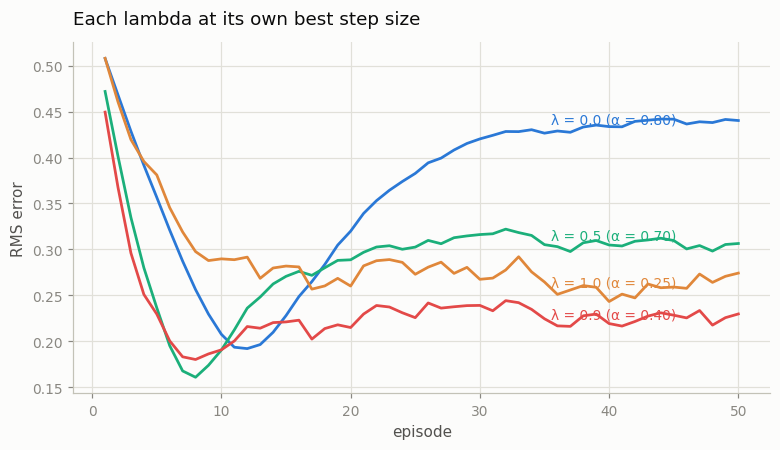

Each λ at its own best step size

Two honest wrinkles worth noticing. First, the ordering by speed (how fast error falls in the first ~10 episodes) matches the sweep: higher λ drops faster, λ = 0.9 lowest overall. Second, every curve bottoms out and then rises to a plateau — with a constant step size, V never converges; it fluctuates around the truth at a noise floor proportional to α. Since each λ here uses the α that was best for a 10-episode budget, the greedy-looking λ = 0 (α = 0.8) buys its early speed with the highest floor. Tuning α for where you stop measuring is already a form of overfitting — a small preview of why step-size schedules exist.
