DQN on CartPole

Key Insight

DQN replaces Q-learning's lookup table with a small neural network (an MLP) that maps a state to one action-value per action — this is function approximation, and it is what lets the same algorithm scale from a 16-square grid to environments with far too many states to ever tabulate. CartPole is the gentlest place to watch this work: the state is just four numbers (cart position, cart velocity, pole angle, pole angular velocity), so a tiny network is more than enough to balance the pole — once it is given DQN's stabilizers. Stripping them out — no experience replay, no target network — exposes the raw fragility the deadly triad warns about: the network chases a learning target built from its own constantly-shifting predictions, and its value estimates run away to eight orders of magnitude beyond anything the game can actually pay. Seeing that instability firsthand is the whole point, and it motivates every fix in the projects that follow.

---

What's in this directory

File	Role
dqn_cartpole.py	The naive agent (no replay, no target network) across 8 seeds; a learning-rate sweep to test whether the failure is merely a tuning bug; and a one-line change that reveals which missing piece actually matters.

python3 dqn_cartpole.py     # ~2 min on 12 CPU cores

The entire algorithm

Strip DQN of both stabilizers and four lines remain. Every environment step produces one transition, and that single transition is immediately turned into one gradient step:

bootstrap = 0.0 if term else GAMMA * q(s2).max().item()   # the network grades itself
target    = r + bootstrap
pred      = q(s)[a]
loss      = F.smooth_l1_loss(pred, target)                # Huber

Two details in there are already the careful choices, and they still do not save it.

The Huber loss (smooth_l1_loss) is the defensive option — it caps the gradient from an outlier TD error rather than squaring it. And the term check is the standard subtlety: CartPole ends either because the pole fell (terminated, so the future really is worth zero) or because the 500-step time limit expired (truncated, where the episode's value did not end — we just stopped watching, so that case must still bootstrap). Getting those two confused is one of the most common quiet bugs in a DQN implementation.

Neither detail is the problem. The problem is that q appears on both sides of the loss. The target is built from the very network the gradient is about to move, so the target moves too — and the "batch" is a single transition that looks almost exactly like the previous one, because consecutive states in a physics simulation are nearly identical. That is bootstrapping plus function approximation plus correlated off-policy data: the deadly triad with nothing holding it back.

It does not learn. It detonates.

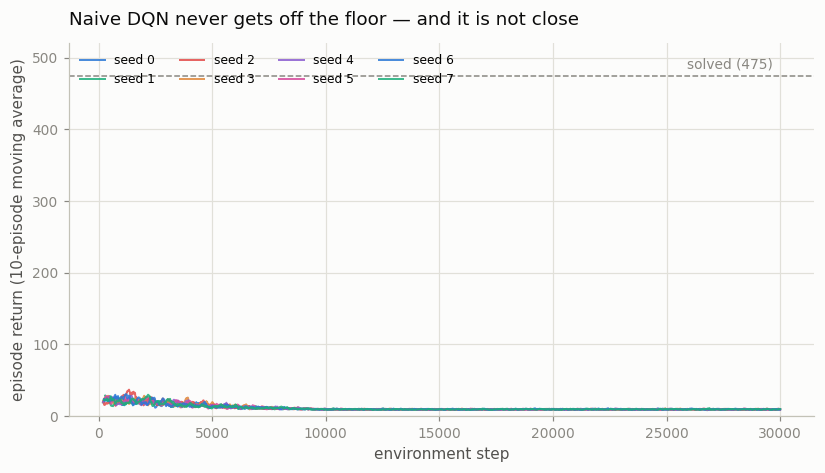

Eight seeds, 30,000 steps each, and not one gets off the floor. The best 10-episode average any seed ever reaches is about 37 (random play scores ~22, and "solved" is 475). There is no climb-then-collapse story to tell — the collapse arrives first.

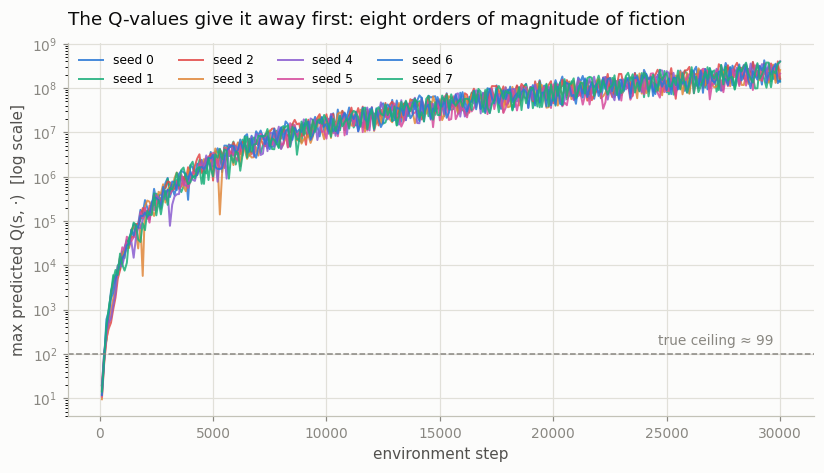

The score is the least informative thing here, though. Look at what the network believes:

CartPole pays exactly +1 per step and lasts at most 500 steps, so with γ = 0.99 the largest return that can possibly exist is (1 - 0.99^500) / (1 - 0.99) ≈ 99.3. That dashed line is not a goal or a benchmark; it is arithmetic. The network blows through it within the first thousand steps and keeps climbing, finishing eight orders of magnitude above physical possibility — a peak prediction of 4.3 × 10⁸ for a quantity that cannot exceed 99.3.

The loop that does this is worth spelling out, because it is the mechanism behind every instability in this phase. A slightly overestimated Q(s', a') inflates the target for Q(s, a). Because the network generalizes, raising Q(s, a) also raises Q(s', a') — they are nearly the same input. So the next target is higher still. Nothing in the loop pushes back, the values ratchet upward forever, and a policy acting greedily on numbers this meaningless is an expensive random policy.

Is it just a tuning problem?

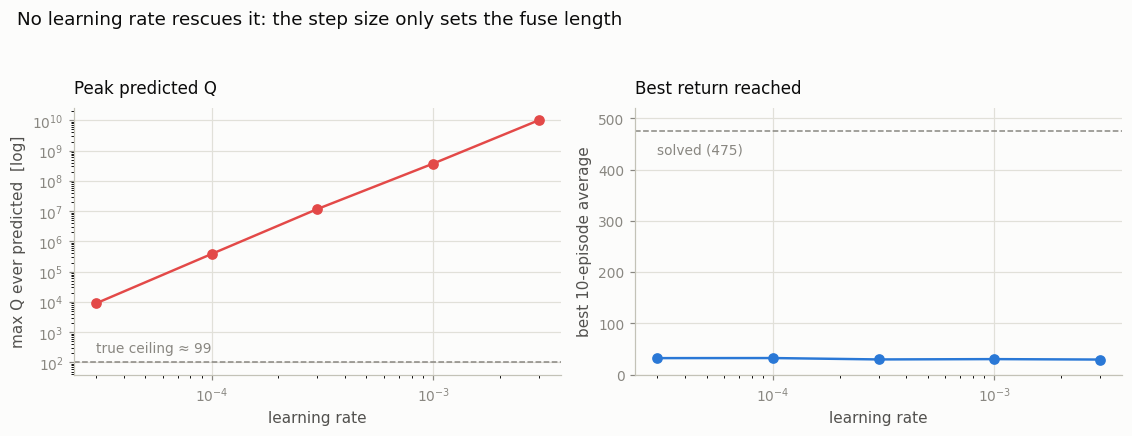

The obvious objection is that the learning rate is too high, and it deserves an answer with data rather than assertion. The script sweeps five learning rates across two orders of magnitude:

learning rate	peak predicted Q	best return
3e-3	1.0 × 10¹⁰	29.4
1e-3	3.7 × 10⁸	30.2
3e-4	1.2 × 10⁷	29.6
1e-4	3.9 × 10⁵	32.3
3e-5	9.0 × 10³	32.2

The step size buys nothing that matters. Shrinking it 100× drops the peak Q-value by six orders of magnitude — and every run still lands hundreds of times above the true ceiling of 99.3, and still scores about 30. The learning rate is not deciding whether the values explode, only how fast: it sets the length of the fuse, not whether there is a bomb. A divergence you can slow down but never stop is structural, and no hyperparameter search will fix it.

The one line that changes the kind of failure

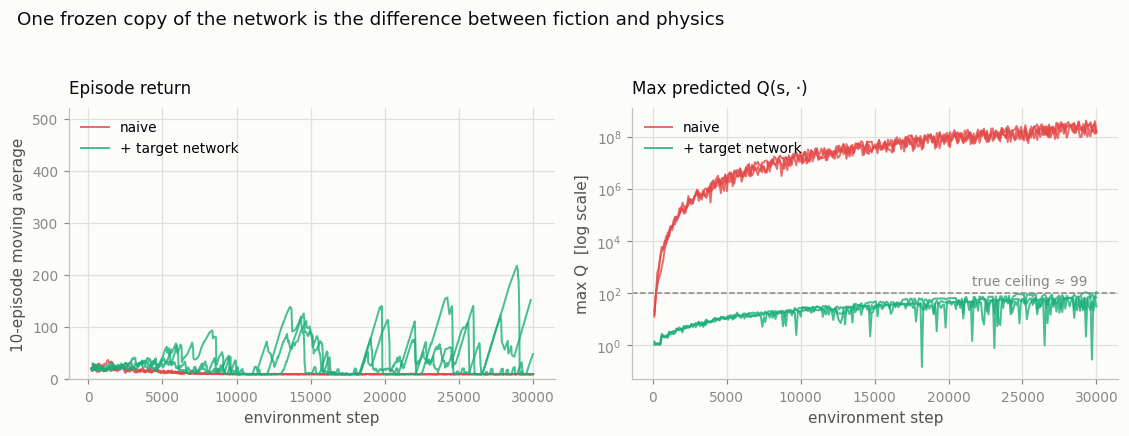

Now add a target network and change nothing else — still no replay buffer, still one transition per gradient step. The bootstrap just reads from a frozen copy of the network, refreshed every 500 updates:

bootstrap_net = q_target if use_target else q
bootstrap = 0.0 if term else GAMMA * bootstrap_net(s2).max().item()

	peak predicted Q	best 10-episode return
naive	3.2 – 4.3 × 10⁸	28 – 37
+ target network	66 – 109	141 – 218

The Q-values return to the realm of the physically possible (66–109, against a ceiling of 99.3) and the score jumps roughly 5×. One frozen copy of the network is the difference between fiction and physics.

It is still not solved, and the left panel shows why: the runs sawtooth, climbing to 150–200 and falling back. Freezing the target broke the feedback loop between prediction and target, but every gradient step is still computed on a batch of one, and that batch is whatever just happened — so the network keeps overwriting what it knew about the last situation with whatever it is looking at now. That is the other leg of the triad, and it is project 13.

What to take away

The lesson is not "naive DQN is unstable." It is that instability here has a signature, and the signature appears in the Q-values long before the score reflects it. In a real project the return curve is the last thing to tell you something has gone wrong; a predicted Q above what the reward function can physically pay is the first. It costs one line to log, and it is the most useful diagnostic in this phase.
