Prioritized Replay

Key Insight

Uniform experience replay treats every stored transition as equally worth revisiting, but some transitions are far more surprising — and therefore more instructive — than others. Prioritized experience replay (PER) samples each transition with probability proportional to the size of its last TD error (the gap between the predicted value and the bootstrapped target), so the agent spends more of its updates on the experiences it currently gets most wrong. Drawing weighted-random samples efficiently from a buffer of millions needs the right data structure: a sum-tree, a binary tree whose every node stores the total priority of everything beneath it, picks a sample in O(log n) steps instead of scanning the whole buffer. Because sampling non-uniformly would otherwise bias the learning target, PER multiplies each update by a small importance-sampling correction weight that cancels the bias back out.

---

What's in this directory

File	Role
per.py	SumTree (the O(log n) weighted sampler) and PrioritizedReplayBuffer, which is interface-compatible with project 13's uniform buffer — the training loop cannot tell them apart.
prioritized_replay.py	Verifies the sum-tree samples what it claims to, then measures the payoff on the Blind Cliffwalk at four levels of reward sparsity.

python3 prioritized_replay.py     # ~3 min on 12 CPU cores

An experiment that can only measure one thing

Comparing samplers online would be a trap. A PER agent and a uniform agent explore differently, so they collect different data, and any difference in learning could just be one of them getting luckier. The comparison here is therefore offline: both samplers are handed the same fixed dataset and the same network initialization, and differ in exactly one respect — which rows of that dataset they look at. Any gap is attributable to the sampler and nothing else.

The task is Schaul et al.'s own construction, the Blind Cliffwalk. There are N states in a row and two actions. "Right" advances one state; "wrong" ends the episode with nothing. Only the single all-right sequence of length N pays out (+1 at the end). A random policy therefore succeeds with probability 2⁻ᴺ — the reward is not rare by accident but by construction, and N is a dial that makes it exponentially rarer.

That buys the experiment two properties. Ground truth is known in closed form, so "how wrong is the network" needs no reference implementation:

Q*(s, right) = γ^(N-1-s)        Q*(s, wrong) = 0

And the dataset is imbalanced the way real sparse-reward problems genuinely are. At N = 14, collecting until the random policy has stumbled into 3 payouts takes 112,528 transitions — of which exactly 3 carry any reward at all. Uniform replay draws from that haystack with no idea a needle exists.

First: does the sum-tree actually work?

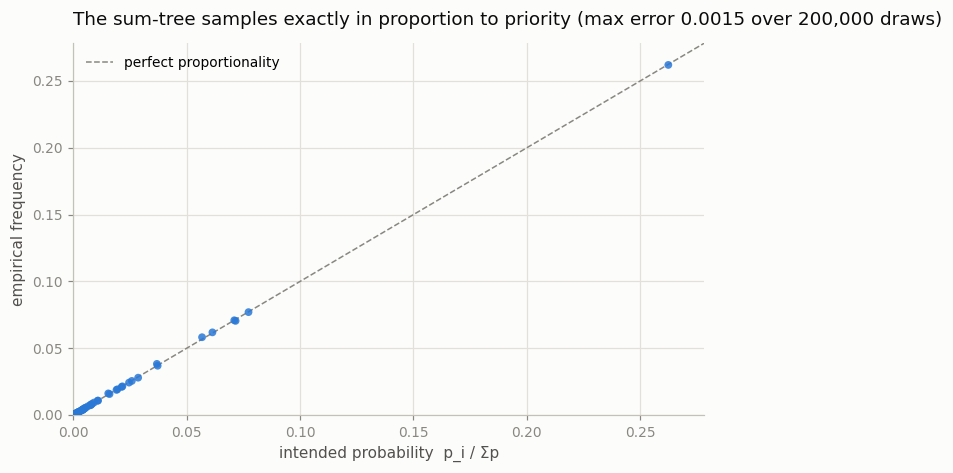

Everything downstream rests on one claim — that a root-to-leaf descent guided by a single uniform random number lands on leaf i with probability p_i / Σp. That deserves verification before it is trusted, so the script loads the tree with deliberately skewed priorities and draws 200,000 samples:

Every point sits on the diagonal; the largest gap between intended and empirical frequency is 0.0015. The structure does what it says.

The mechanism is worth a moment, because it is genuinely elegant. Each leaf holds a priority and each internal node holds the sum of its children, so the root holds the total. To sample, draw x ~ U(0, total) and walk down: if the left child's mass covers x, go left; otherwise subtract that mass and go right. Sampling is O(log n) array reads, updating one priority is O(log n) writes, and the whole structure is a single flat array with no pointers and no objects.

The payoff

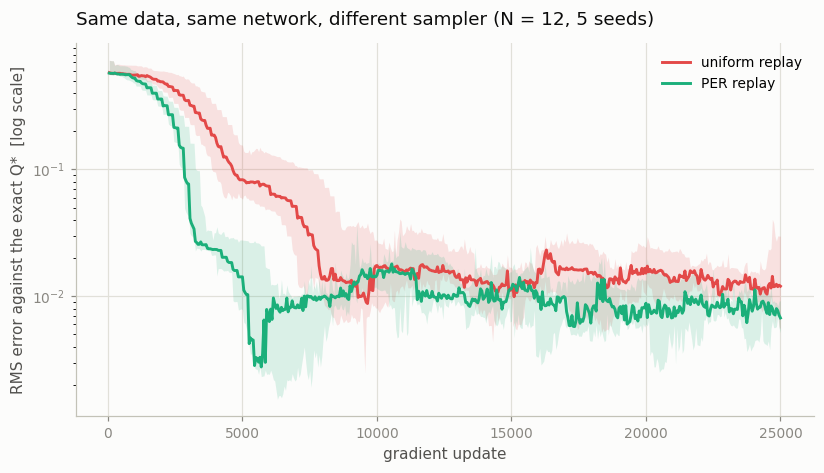

Same data, same network, different sampler:

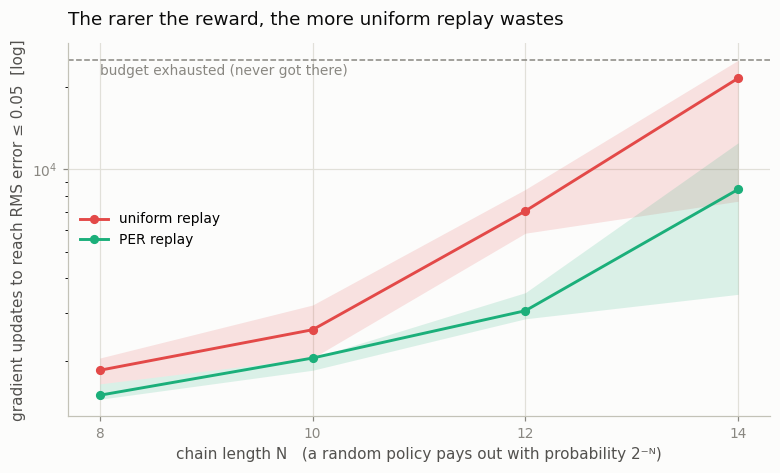

And the headline — how the advantage scales as the reward gets rarer:

N	transitions in the dataset	uniform: updates to solve	PER: updates	speedup
8	1,285	1,850 (5/5 seeds)	1,500 (5/5)	1.2×
10	3,668	2,600 (5/5)	2,050 (5/5)	1.3×
12	19,029	7,050 (5/5)	3,050 (5/5)	2.3×
14	112,528	21,500 (3/5)	8,450 (5/5)	2.5×

("Solve" = the network's RMS error against the exact Q* drops below 0.05.)

The shape of that table is the actual result. At N = 8, where a payout is one row in ~430, prioritization is worth a modest 1.2×. At N = 14, where a payout is one row in ~37,500, it is worth 2.5× — and more tellingly, uniform replay fails to solve the task at all within the budget on 2 of 5 seeds, while PER solves 5 of 5. The benefit of prioritization is not a constant; it grows with the sparsity of what you are trying to learn. That is exactly the prediction, and it is why PER earns its complexity on hard-exploration Atari games and barely registers on dense-reward ones.

Why it works is visible directly in where the batches go:

Uniform replay sits precisely on the dashed line — the share of the dataset that pays out at all (0.016% at N = 12). That is what "uniform" means: it spends attention in exact proportion to how common something is, which for a rare reward is exactly the wrong allocation. PER spends 3–5× more of its batches on the rows that carry reward, because a transition the network is badly wrong about has a large TD error, and a large TD error is a large priority.

The two costs, and the code that pays them

Cost one: the sampler is no longer free. That is what the sum-tree is for. One subtlety in add() is worth knowing — new transitions arrive with the maximum priority seen so far:

self.tree.update(i, self.max_priority ** self.alpha)   # optimistic init

Without that, a transition whose first TD error happened to be small would sink to near-zero probability and never be drawn again — and its priority could never be corrected, because correcting it requires sampling it. Optimistic initialization guarantees every transition is replayed at least once before its priority is believed.

Cost two: the training distribution is now wrong. Learning from a skewed sample estimates a skewed expectation. PER corrects this with an importance- sampling weight on each sample's loss:

w_i = (1 / (N · P(i)))^β,  normalized so that max w = 1

with β annealed from 0.4 to 1 over training. The annealing is not decoration. Early on the network is wrong everywhere, and a biased gradient pointed roughly uphill is fine — speed matters more than exactness. Near convergence, when the network is nearly right, a systematically biased gradient is precisely what stops it settling, so the correction is phased in to full strength exactly when it starts to matter.

The alpha exponent is the other dial: alpha = 0 recovers uniform sampling exactly, alpha = 1 samples in direct proportion to TD error, and 0.6 (used here) is the usual compromise — prioritize, but not so hard that the buffer collapses onto a handful of high-error transitions and the agent forgets everything else.

What to take away

PER is a bet about where the information is, and it is paid for in complexity: a custom data structure, an importance-sampling correction, and two new hyperparameters (alpha, beta) to get wrong. On a dense-reward task the bet returns almost nothing — which is what the N = 8 row is quietly telling you. Reach for it when your reward is rare; skip it when it is not.

Project 17 puts it back in the pixel setting and asks the harder question: does it still help once Double and Dueling are already in place?
