Add a Replay Buffer

Key Insight

Two additions turn the fragile DQN of the previous project into the stable recipe that cracked Atari. Experience replay stores past (state, action, reward, next-state) transitions in a buffer and trains on random samples drawn from it, which breaks the strong correlation between back-to-back steps and lets each experience be reused many times instead of being seen once and thrown away. A target network — a frozen copy of the Q-network refreshed only every few hundred steps — supplies the r + γ·maxₐ Q(s′, a) learning target, so the network is no longer chasing a goalpost that jumps on every gradient step. Together they tame two of the three legs of the deadly triad (bootstrapping and off-policy data), and the once-collapsing learning curve becomes steady and repeatable.

---

What's in this directory

File	Role
dqn_lib.py	The reusable DQN core for the whole phase: ReplayBuffer, OnlineBuffer, MLPQNet, DQNAgent, and the train_dqn loop. Projects 14–18 import it and swap exactly one piece each.
replay_and_target.py	The 2×2 ablation (replay on/off × target network on/off, 5 seeds), a hard-copy-vs-Polyak comparison, and a diagnostic that measures the thing replay is supposed to fix.

python3 replay_and_target.py     # ~9 min on 12 CPU cores

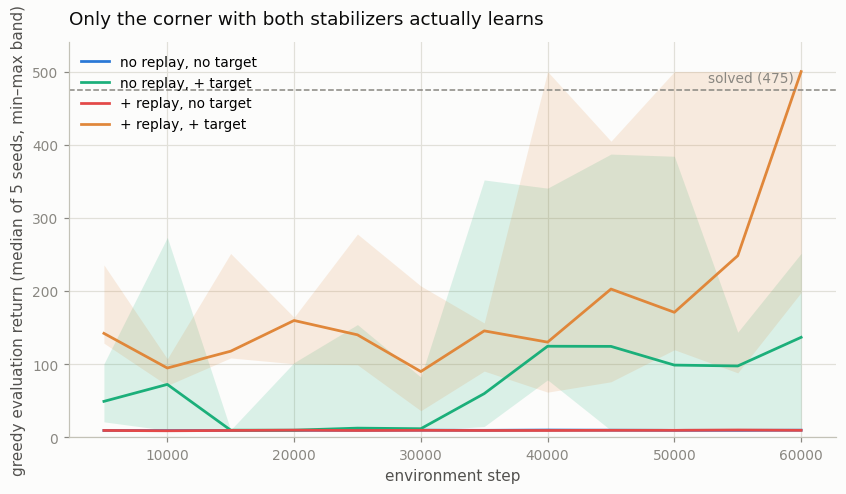

The four corners

Project 12 established that the naive agent diverges. The obvious next question is which of the two missing stabilizers does the work — so add them back one at a time, changing nothing else:

variant	last-3 evaluation	best evaluation	seeds that hit 475	peak predicted Q
no replay, no target	9.4	10.0	0/5	3.3 × 10⁹
no replay, + target	108.1	282.5	0/5	204
+ replay, no target	9.4	10.0	0/5	7.5 × 10⁹
+ replay, + target	318.7	461.8	3/5	77.5

The headline is the third row, and it is the one people get wrong. Experience replay on its own is worth nothing at all. The + replay, no target agent scores 9.4 — indistinguishable from the agent with no stabilizers whatsoever — and its Q-values reach 7.5 × 10⁹, which is worse than the naive agent's 3.3 × 10⁹.

That is not a bug, and it is worth sitting with. Replay hands the network a bigger, more diverse batch, so each gradient step is a better-estimated step. But it is a better-estimated step toward a target the network is still computing from itself. A sharper estimate of a runaway quantity simply runs away more efficiently: replay makes the divergence converge faster.

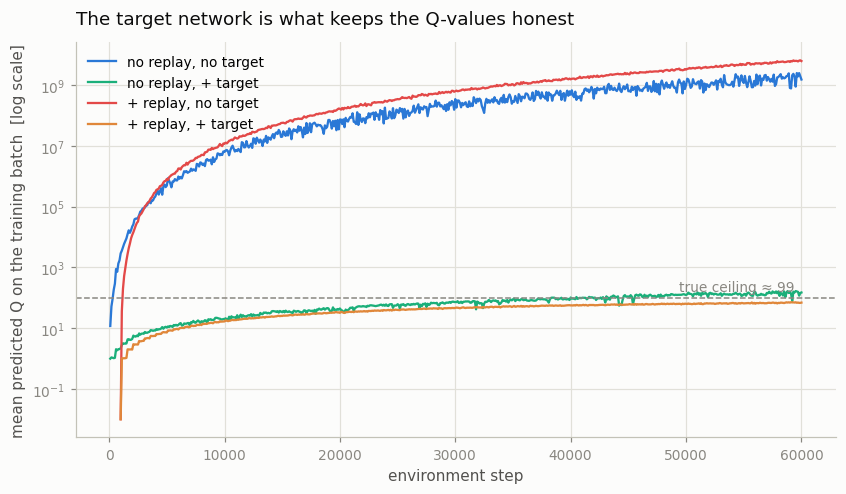

The Q-values say it plainly:

Two curves fly off to 10⁹; two stay pinned below CartPole's true ceiling of 99.3 (the most return the game can physically pay, (1 - 0.99^500) / (1 - 0.99)). The split runs entirely along one axis — whether there is a target network — and not at all along the other.

So the two stabilizers are not two of a kind:

• The target network is necessary. Without it nothing else matters, because the bootstrap feedback loop stays unbroken and the values diverge regardless.
• The replay buffer is what turns "not diverging" into "actually learning." Given a target network, adding replay lifts the score from 108 to 319 and the best evaluation from 283 to 462.

What replay actually buys

Replay's usual justification is that it breaks the correlation between consecutive samples. That is true, but it is worth measuring rather than repeating, because the size of the effect is not what folklore suggests:

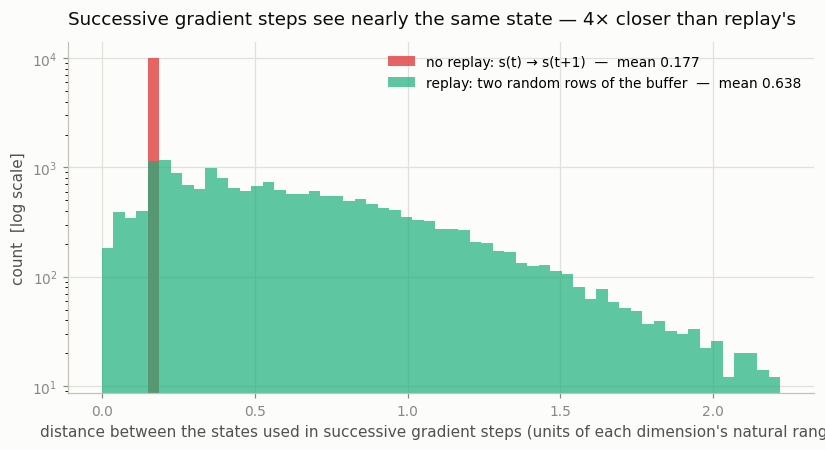

The no-replay agent takes one gradient step per transition, so the honest question is how far the training input moves between one gradient step and the next. Without replay it moves from s_t to s_{t+1} — two states 20 ms apart in a physics simulation, a mean distance of 0.177 in units of each dimension's natural range. With replay it jumps to a random row of the buffer: 0.638, about 4× further.

Four times, not a hundred. CartPole's bang-bang force means velocities do jump appreciably on every step, so consecutive states are less nearly-identical than the story implies. The more important half of the effect is not the distance but the provenance: a replay buffer holds the agent's whole history — the flailing of early training alongside the competent balancing of late training — so a sampled row is unrelated to the current moment in a way that no pair of consecutive states can ever be. Successive online updates keep aiming the gradient at one narrow region of state space, and the network quietly forgets everything else. That is catastrophic forgetting, and it is why the no replay, + target curve sawtooths instead of climbing.

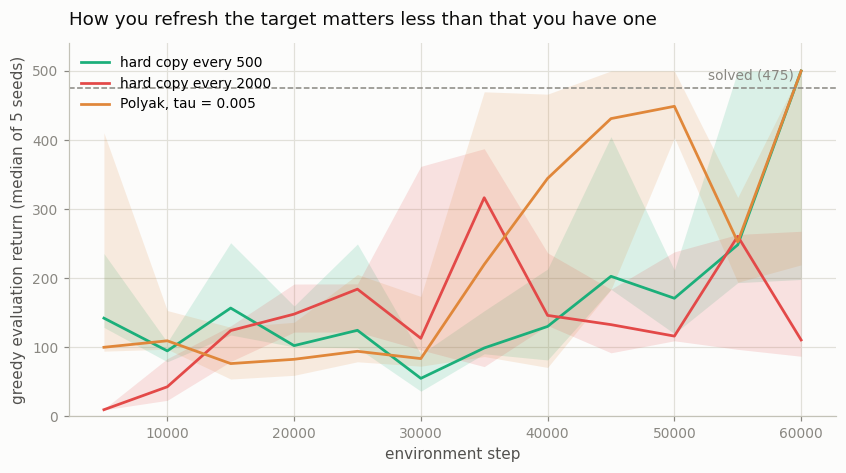

How you refresh the target matters less than that you have one

DQN hard-copies the online weights into the target every N updates. Polyak averaging instead drags the target a tiny fraction τ of the way toward the online net on every step — the default in DDPG, TD3 and SAC. Both are in dqn_lib.py; here they are side by side:

target update	last-3 evaluation	best evaluation	seeds that hit 475
hard copy every 500	293.5	468.3	2/3
hard copy every 2000	172.1	311.1	0/3
Polyak, τ = 0.005	370.5	482.9	2/3

Polyak edges it, and refreshing too rarely (every 2000 updates) is clearly worst — the target lags so far behind that the network spends its time fitting stale values. But the spread across all three (172 to 371) is small next to the gap between having a target network and not (9 to 319). This is a second-order tuning knob dressed up as an architectural decision, which is a fair description of a good fraction of the DQN literature.

An honest word about "stability"

The best agent here reaches 462 and clears the 475 bar on 3 of 5 seeds, but its curve still oscillates and no configuration holds 475. That is not a defect of the implementation — CartPole DQN is well known for it. The agent gets good, its episodes get long, its buffer fills up with 500-step balancing trajectories, it forgets what falling looks like, it falls, and it relearns. Even the fixed recipe only manages the deadly triad; it does not abolish it.

Which is the guide's point about this whole phase. Every algorithm from here on makes a different bet about how to manage the triad, and none makes it go away. Double DQN (project 15) attacks the overestimation that drives the ratchet. Prioritized replay (project 16) attacks which transitions get replayed. Distributional RL (project 18) changes what the network is asked to predict in the first place — and produces the best CartPole agent in the phase, the only one that reaches a perfect 500.

The code the rest of the phase reuses

dqn_lib.py is factored so that each later project swaps exactly one thing:

buffer  -- where transitions live      (ReplayBuffer / OnlineBuffer / PER / n-step)
net     -- what maps state to Q-values (MLPQNet / ConvQNet / dueling / C51)
agent   -- how the target is built     (DQNAgent / C51Agent)
loop    -- how the three are driven    (train_dqn)

Two details in there are load-bearing. OnlineBuffer implements the same interface as ReplayBuffer but remembers only the newest transition, so "turn replay off" is a one-word change at the call site rather than a second training loop — and any behavioral gap is therefore attributable to replay alone. And DQNAgent.__init__ seeds the RNG before building the network, because PyTorch seeds its default generator from OS entropy on first use: construct the net first and its initialization is unseeded, so the same config lands on a different curve every run. That one is easy to miss, and especially easy when runs are fanned out across worker processes.
