Mini Rainbow

Key Insight

Rainbow is the observation that the half-dozen independent improvements to DQN are complementary rather than competing — stacked together they multiply rather than merely add. This project builds a Rainbow-lite from four of them: Double DQN and Dueling DQN for better value estimates, prioritized experience replay for focusing on the most informative transitions, and n-step returns, which build the learning target from the rewards seen over the next n steps rather than just one — trading a little more variance for much faster propagation of reward back through time. Ablating the components one at a time reveals which carry the most weight on your chosen task, the kind of careful empirical bookkeeping that real reinforcement-learning engineering is mostly made of.

---

What's in this directory

File	Role
mini_rainbow.py	The cumulative ladder — DQN → +Double → +Dueling → +PER → +3-step — on project 14's pixel Pong, plus NStepBuffer, the one genuinely new piece of machinery.

python3 mini_rainbow.py     # ~9.5 min on 12 CPU cores (15 runs in parallel)

Everything else is imported: the training loop and buffer from project 13, the environment and CNN from project 14, the dueling head from project 15, and the sum-tree from project 16. The ladder is cumulative — each rung keeps everything below it — because that is the claim under test: not "is PER good in isolation" but "does PER still help once you already have Double and Dueling".

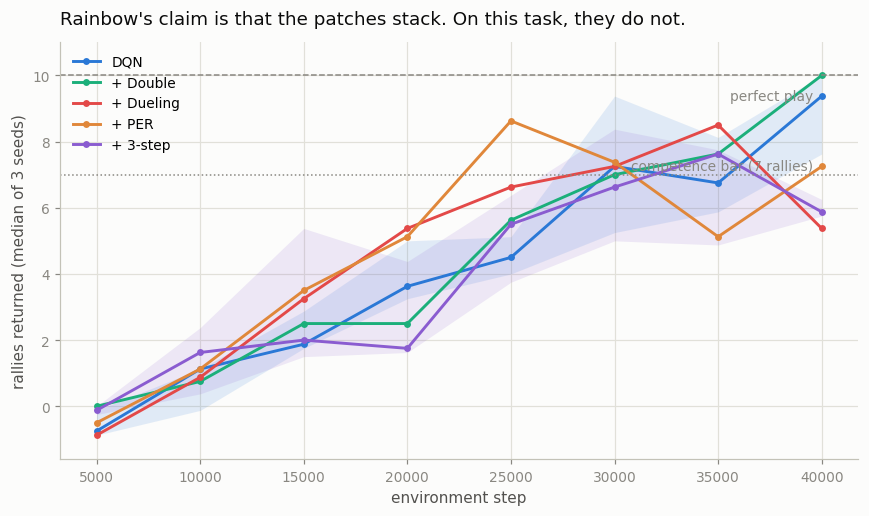

The result, which is not the one Rainbow advertises

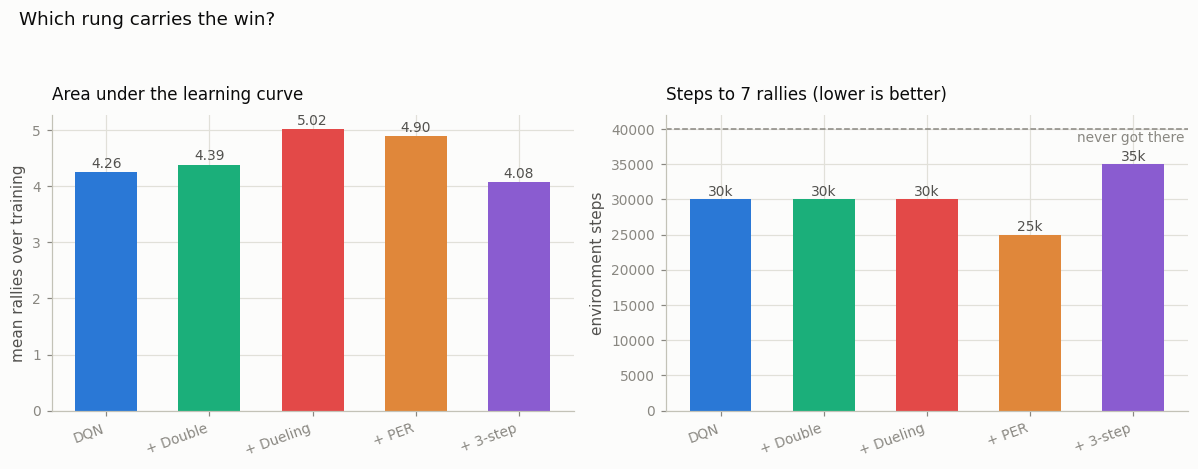

rung	final score	best score	AUC (learning speed)	steps to 7 rallies
DQN	9.00	9.17	4.26	30,000
+ Double	8.54	9.21	4.39	30,000
+ Dueling	5.96	9.21	5.02	30,000
+ PER	6.58	9.12	4.90	25,000
+ 3-step	5.96	7.50	4.08	35,000 (only 2 of 3 seeds)

Read down the columns and the tidy staircase refuses to appear. Every rung reaches roughly the same peak (9.1–9.2 rallies out of 10) except the last. Learning speed (area under the curve) rises through +Double and +Dueling, peaks there, and then falls. And 3-step returns — the final rung, and one of the most valuable components in the real Rainbow ablation — is unambiguously the worst configuration here: lowest AUC, lowest best score, slowest to competence, and the only rung that fails to reach 7 rallies on every seed.

Three seeds is not many, and most of these gaps sit inside the seed noise. The one that does not is the 3-step regression, and it deserves understanding rather than explaining away.

Why n-step hurts here

An n-step target is r_t + γ·r_{t+1} + ... + γⁿ⁻¹·r_{t+n-1} + γⁿ·max_a Q(s_{t+n}, a). It carries real reward n states back in a single update instead of relaying it one state per update, which is why it usually accelerates learning.

The catch is that those intermediate rewards were collected by the behavior policy — the ε-greedy one, which is regularly taking random actions — while the target is meant to describe the greedy policy. A strictly correct off-policy n-step return needs an importance-sampling correction to fix that mismatch, and essentially nobody applies it for small n, because the bias is usually small and the variance the correction introduces is usually worse.

"Usually" is doing all the work in that sentence. In MiniPong a single exploratory action at the wrong moment does not cost a little reward — it ends the episode at −1. So a 3-step return regularly bakes in the consequences of a random action the greedy policy would never take, and the target turns systematically pessimistic about states that are in fact perfectly safe. The bias n-step quietly accepts scales with how catastrophic an exploratory action can be, and in this game it is maximally catastrophic.

That is a property of the environment, not a bug in the buffer. NStepBuffer is verified against hand-computed discounted returns, including the partial windows it flushes when an episode ends inside one:

# episode: rewards 1, 2, 3, then terminal with 10;  gamma = 0.9
emitted:  (s0, R = 1 + .9*2 + .81*3 = 5.23,   s3, done=0)   # a full 3-step window
          (s1, R = 2 + .9*3 + .81*10 = 12.8,  s4, done=1)   # terminal inside the window
          (s2, R = 3 + .9*10 = 12.0,          s4, done=1)   # flushed, 2-step
          (s3, R = 10,                        s4, done=1)   # flushed, 1-step

Every flushed window carries done = 1, so its bootstrap term is multiplied by zero, and the fact that it is a k-step return with k < n never gets a chance to matter.

Why PER barely moves the needle — and why that was predictable

+PER is the quickest rung to reach competence (25,000 steps against everyone else's 30,000), but the effect is small — and project 16 already told us it would be. There, PER's advantage grew with the sparsity of the reward: 1.2× on a chain where a payout was one row in 430, and 2.5× where it was one row in 37,500.

MiniPong pays out constantly. The agent earns +1 every twenty-odd steps and −1 on every miss; there is no needle in this haystack because the haystack is mostly needles. Prioritization has little to find that uniform sampling would have missed, so it buys a modest speedup and nothing more. The two projects agree, and the agreement is the point: PER's value is a function of your reward distribution, and knowing that in advance is worth more than any benchmark number.

What this project is actually teaching

The honest summary of the table is: on this task, one of the four patches helps a little, two do nothing measurable, and one actively hurts.

That is not a refutation of Rainbow. Rainbow's ablation ran on 57 Atari games across millions of frames and many seeds, and its components were chosen precisely because they pay off in that regime — sparse rewards, enormous state spaces, long horizons, and enough compute for the variance to average out. MiniPong is dense-rewarded, deterministic, three-actioned and tiny. The components are not broken; they are solving problems this environment does not have, and one of them is actively mispriced for a game where a single exploratory step is fatal.

The transferable lesson is the one the ladder embodies: run the ablation on your own task. The reflex to import Rainbow wholesale because it topped a benchmark is exactly the reflex this project exists to break. Each of these techniques is a bet about a property of the environment — Double bets there is overestimation to remove, PER bets the informative transitions are rare, n-step bets that off-policy bias is cheaper than slow credit assignment — and a bet whose premise is false does not pay, however many citations it carries.

Which is why the honest version of this project's headline figure is a ladder that does not go up.
