Atari Pong

Key Insight

Moving from CartPole's four numbers to Pong's raw screen pixels forces two classic preprocessing tricks. Frame stacking feeds the network the last four frames at once instead of a single image, because one still frame cannot reveal which way the ball is moving — velocity is only visible across time, and without it the Markov property the algorithm assumes is broken. Reward clipping squashes every score change to −1, 0, or +1 so that games with wildly different point scales can all be trained with one shared set of hyperparameters. With a convolutional Q-network reading the stacked frames, the same algorithm that balanced a pole now learns to play from pixels alone — the Atari result that put deep reinforcement learning on the map.

---

An honest note about compute

Real ALE Pong needs on the order of a million frames before DQN scores its first point. On a CPU that is hours, and a project claiming to run in ten minutes cannot also claim to have trained it. Pretending otherwise with a truncated learning curve would be a lie told with a chart.

So this project splits the difference and is explicit about which half is which:

• The preprocessing pipeline is the real one. It runs against real ALE/Pong-v5 (when ale_py is installed) to produce the figure below — what the network is handed here is what it would be handed on Atari.
• The training happens on MiniPong: Pong against a wall, 20×20 real pixels, written in numpy, which the identical agent solves in about a minute. Same problem shape (control from raw pixels, velocity that exists only across frames, ±1 rewards), a thousandth of the compute.

Projects 15 and 17 train on MiniPong for the same reason.

What's in this directory

File	Role
pong_lib.py	MiniPong (the pixel game), the FrameStack and ClipReward wrappers, ConvQNet (the CNN torso), and AtariPipeline — the genuine ALE wrapper chain, in numpy, with no OpenCV dependency.
train_pong.py	Draws what the agent sees, then ablates frame stacking and reward clipping.

python3 train_pong.py     # ~5 min on 12 CPU cores

What DQN is actually handed

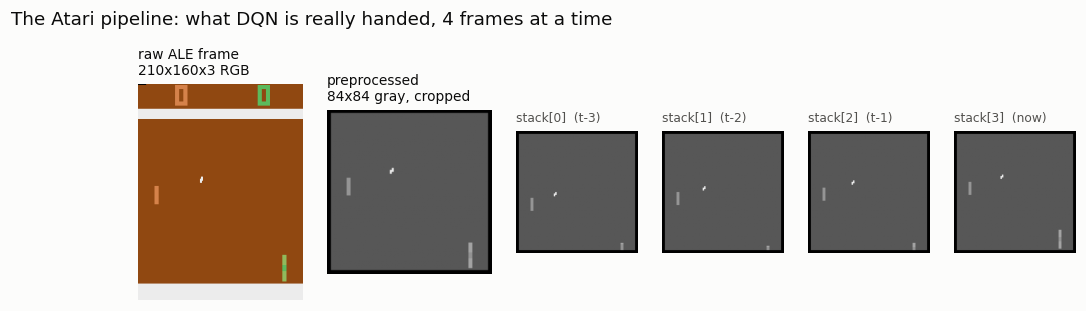

That is a real frame from the Arcade Learning Environment, then the same frame after the wrapper chain. Every step in that chain is a fix for a specific property of a 1977 games console:

step	why
max-pool over 2 frames	Atari sprites flicker on alternate frames — the console could not draw them all on every refresh. Taking the elementwise max of the last two raw frames makes them all visible at once.
frame skip (4)	60 decisions per second is wasted compute. The same action is repeated for 4 frames, so the agent thinks at ~15 Hz.
grayscale	color carries almost no signal in Pong, and dropping it cuts the input by 3×.
crop + downsample	strip the scoreboard (not part of the game state), halve the resolution.
stack 4	see motion, not stills.
clip reward to sign(r)	one learning rate has to serve all 57 games.

AtariPipeline implements all of it in numpy. Most implementations reach for OpenCV to resize; a crop and a stride-2 slice do the same job with no extra dependency.

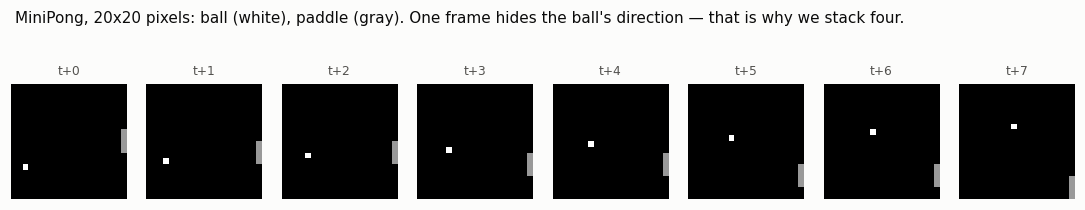

And here is MiniPong, the game we can afford:

Eight consecutive frames. Look at any single one and try to say which way the ball is going. You cannot — and neither can a network. That is not a quirk of the toy; it is the same fact that forces frame stacking on real Atari, reproduced at a seventeenth of the resolution.

Frame stacking is not a detail

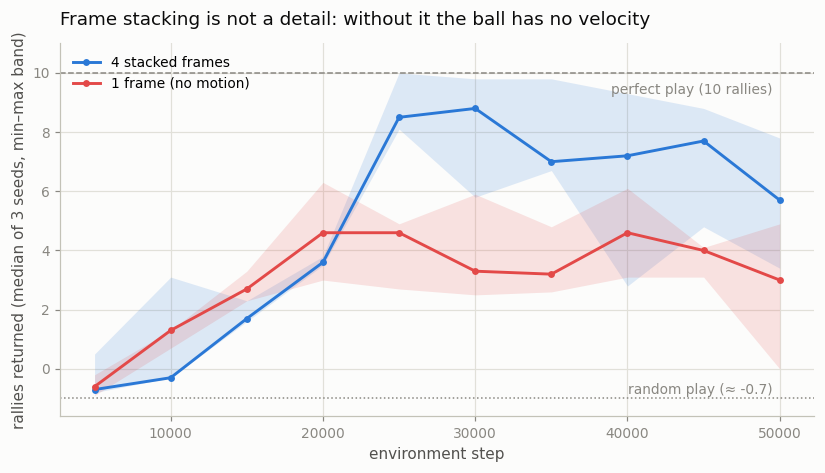

That claim is testable, so the script tests it: identical agent, identical hyperparameters, k = 4 frames versus k = 1.

	last-3 score	best score
4 stacked frames	6.39 of 10 rallies	9.87
1 frame	3.66	5.77

(The headline is the mean of the last three checkpoints; a single final evaluation is one noisy 10-episode sample, and these curves oscillate enough that quoting it would be a coin flip dressed as a result.)

With four frames the agent gets to near-perfect play at its best. With one frame it stalls around 3–5 and never once returns more than 5.77 rallies. It is not helpless — a single frame still shows where the ball is, and "drift toward the ball's current row" wins a fair number of easy rallies — but it cannot anticipate, so it loses every ball that requires being somewhere the ball is not yet.

The formal way to say this: a single frame turns the environment into a POMDP. The observation is not a state, because it does not contain what is needed to predict what happens next. Stacking four frames restores the Markov property, and DQN's entire derivation depends on it holding.

Reward clipping, and the identity hiding inside it

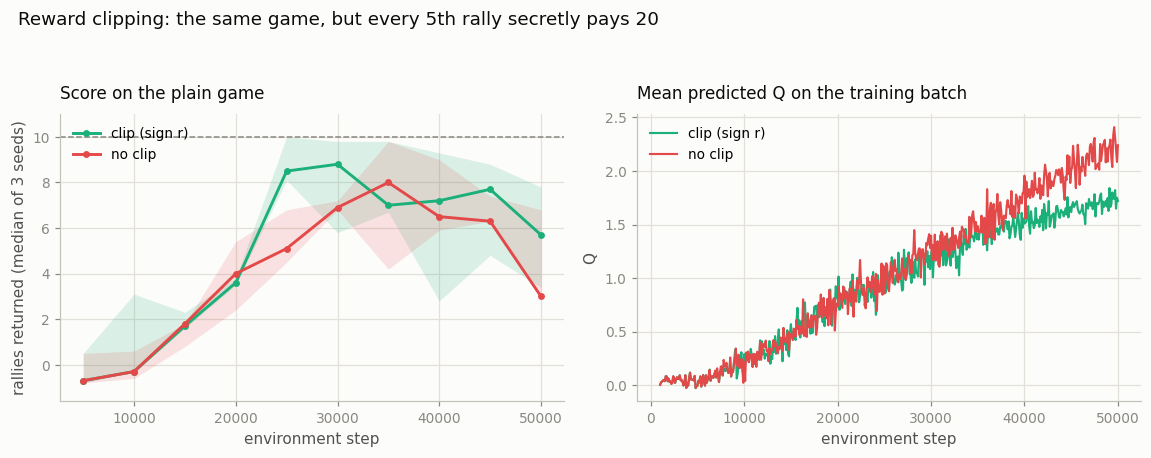

Testing clipping requires rewards worth clipping, so MiniPong gets a jackpot: every 5th rally secretly pays 20 instead of 1. Train with and without sign(r), and score both on the plain game — rallies returned, the only thing that actually matters.

	last-3 score	best score	peak predicted Q
clip (sign r)	6.39	9.87	1.89
no clip	6.01	8.53	2.74

The scores are nearly tied, and the honest summary is that on this task clipping barely matters — 6.39 versus 6.01 across three seeds is well inside the noise. What is clearly separated is the Q-values: the unclipped agent's peak prediction is 45% higher (2.74 vs 1.89), because a rare +20 inflates every value estimate that can reach it, and gradient size scales with the TD error. One outlier reward, one outlier gradient. That is the mechanism clipping exists to suppress, and it is visible here even where its effect on the score is not.

Which is exactly what should be expected, and it is worth being precise about why. A 20× jackpot in a game whose scores span 0–10 is a mild test. Real Atari spans three orders of magnitude across titles — Pong pays ±1 while Q*bert pays 25 to 3,000 per event — and no single learning rate could serve all 57 without clipping. Clipping is insurance against a scale problem this toy game does not really have. Reporting it as a 6% win would be dressing up noise; the defensible claim is that the mechanism is real and measurable, and that the payoff scales with how badly the rewards are scaled in the first place.

The more interesting observation is why the clipped arm needed no training runs of its own. Clipping the jackpot game maps every rally back to +1 and every miss to -1 — which is the plain game, transition for transition. The clipped agent and the plain stack-4 agent are not similar; they are the same run, which is why their numbers above are identical. That equivalence is the point of clipping, and the script leans on it rather than spending compute rediscovering it.

Clipping is also not free. The clipped agent is, by construction, indifferent between a 1-point rally and a 20-point jackpot — it can no longer represent the preference at all. On Atari that is a known and accepted loss: the agents learn to play well while being blind to the score's own structure. It is one of the tradeoffs distributional RL (project 18) begins to unwind.

The network

Nature-DQN's torso — 32/64/64 channels with 8×8, 4×4 and 3×3 kernels — is sized for an 84×84 input. On a 20×20 frame those kernels would be mostly padding, so ConvQNet is the same idea shrunk to fit: two strided convolutions turning pixels into a small feature vector, then a linear head with one output per action.

nn.Conv2d(4, 16, kernel_size=3, stride=2, padding=1)   # 4 stacked frames, 20 -> 10
nn.Conv2d(16, 32, kernel_size=3, stride=2, padding=1)  # 10 -> 5

One storage detail matters more than it looks. The replay buffer keeps observations as uint8 and divides by 255 at sample time. A stacked 4×20×20 observation in float32 is 6.4 KB, and the buffer holds two per transition — so a 20k buffer would cost 640 MB, and a dozen of these run in parallel. As bytes it is 64 MB. On real Atari (84×84 frames, a 1M-transition buffer) the same choice is the difference between roughly 50 GB and 13 GB, which is why every serious DQN implementation does it.

What to take away

Pixels do not change the algorithm. The DQN in dqn_lib.py is the same code project 13 ran on CartPole — loss, buffer, target network, epsilon-greedy loop, all untouched. What changed is the observation, and each wrapper in the chain repairs one way that raw pixels violate an assumption the algorithm quietly makes: stacking repairs the Markov property, clipping repairs the scale of the gradients, frame-skipping and grayscale simply buy back compute.

That is the pattern worth keeping. When deep RL meets a new observation space, most of the work is not in the algorithm — it is in the wrappers.
