Hand-Trace Bellman Backups

Key Insight

A Bellman backup replaces each state's current value estimate with "reward now plus discounted value of where you land next," and applying it over and over is guaranteed to converge because the backup is a contraction mapping — every pass shrinks the gap to the true value function by at least a factor of the discount factor γ. Doing ten backups by hand on a three-state MDP — a toy world with only three possible situations the agent can be in, small enough that you can write down and update every state's value on paper — makes that abstract guarantee concrete: you literally watch the numbers stop moving. This is the mechanism underneath value iteration and, in disguise, underneath every value-based deep-RL algorithm.

---

What's in this directory

File	Role
hand_trace.py	Defines the 3-state MDP, verifies V* = (2, 4, 8) is the exact fixed point, runs the ten backups, prints the trace table, and checks the error really shrinks by γ every pass.

python hand_trace.py     # ~2 s on CPU

The MDP (designed for mental arithmetic)

Everything is deterministic and γ = 0.5, so every backup is halving. Three states in a row, s0 → s1 → s2, and two actions everywhere:

state	stay (self-loop)	advance
s0	reward +0.5	go to s1, reward 0
s1	reward +0.5	go to s2, reward 0
s2	reward +0.5	stay at s2, reward +4

Each state offers a lazy self-loop paying +0.5, or advance toward s2, where advancing pays +4 forever. The true optimal values are round numbers you can verify in your head with the geometric series 4/(1−0.5) = 8:

V*(s2) = 4 + 0.5·8 = 8      V*(s1) = 0 + 0.5·8 = 4      V*(s0) = 0 + 0.5·4 = 2

The trace, by hand

One synchronous backup computes, for every state, the value of each action using the previous column's numbers, then keeps the max:

V_k+1(s) = max_a [ R(s, a) + 0.5 · V_k(next state) ]

Backup 1, starting from V = (0, 0, 0):

s0:  max( stay: 0.5 + 0.5·0 = 0.5 ,  advance: 0 + 0.5·0 = 0 )  = 0.5
s1:  max( 0.5 ,  0 )                                            = 0.5
s2:  max( 0.5 ,  advance: 4 + 0.5·0 = 4 )                       = 4

Backup 2, now reading from V = (0.5, 0.5, 4):

s0:  max( 0.5 + 0.25 = 0.75 ,  0 + 0.5·0.5 = 0.25 )   = 0.75
s1:  max( 0.75 ,  0 + 0.5·4 = 2 )                      = 2
s2:  max( 0.5 + 2 = 2.5 ,  4 + 2 = 6 )                 = 6

Continuing (the script prints this table; every entry is checkable by hand):

k	V(s0)	V(s1)	V(s2)	greedy actions	‖V_k − V*‖∞
0	0	0	0	—	8
1	0.5	0.5	4	stay, stay, advance	4
2	0.75	2	6	stay, advance, advance	2
3	1	3	7	advance, advance, advance	1
4	1.5	3.5	7.5	advance, advance, advance	0.5
5	1.75	3.75	7.75	advance, advance, advance	0.25
6	1.875	3.875	7.875	advance, advance, advance	0.125
7	1.9375	3.9375	7.9375	advance, advance, advance	0.0625
8	1.96875	3.96875	7.96875	advance, advance, advance	0.03125
9	1.984375	3.984375	7.984375	advance, advance, advance	0.015625
10	1.9921875	3.9921875	7.9921875	advance, advance, advance	0.0078125

What the trace teaches

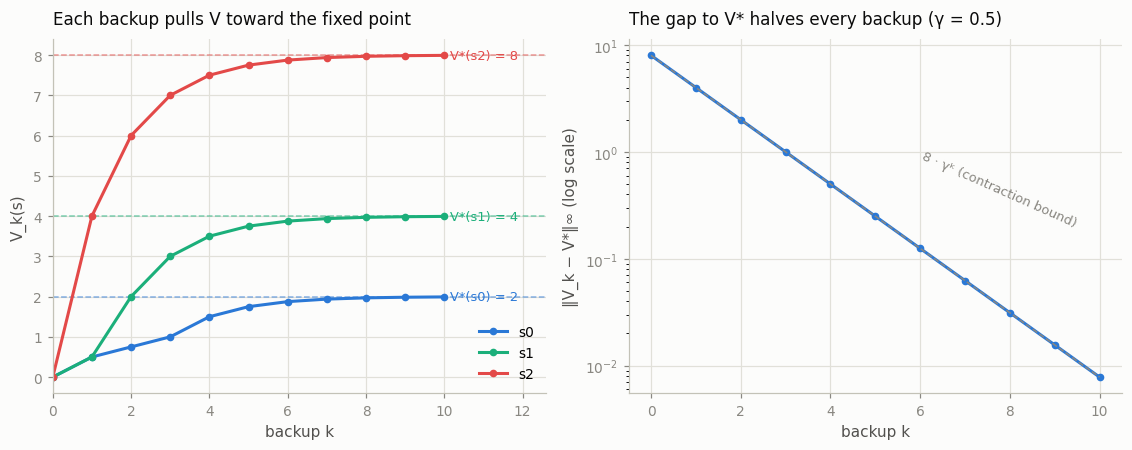

• The error column halves exactly. The script asserts the ratio of consecutive errors: it is 0.500 on every backup, never above γ. That is the contraction property, watched happening rather than proved. Ten backups cut the initial gap of 8 down by 0.5¹⁰ ≈ 0.001, to under 0.008.
• Information flows backwards one hop per backup. After backup 1 only s2 knows about the +4; after backup 2 the news has reached s1 (via 0.5 · 4 = 2); after backup 3 it reaches s0. A backup propagates value exactly one transition upstream, which is why value iteration on a chain of length n needs at least n sweeps — and why the sparse, delayed rewards of later phases make bootstrapped methods slow.
• The greedy policy converges before the values do. Watch the "greedy actions" column: s0 still prefers the lazy stay at backups 1–2 (the distant +4 hasn't reached it, so +0.5 now looks great) and flips to advance at backup 3. From then on the policy never changes even though the values still have an error of 1.0 that decays for the rest of the trace. Acting only needs the argmax to be right, not the numbers — the observation behind policy iteration in the next phase, which stops evaluating early and improves the policy instead.
• The fixed point checks itself. Plug V* = (2, 4, 8) into the backup and it returns (2, 4, 8): the Bellman equation is a consistency condition, and the script asserts it before tracing.
