Policy Evaluation by Matrix Inverse

Key Insight

When the policy is held fixed, the Bellman equation stops being scary: it becomes an ordinary set of linear equations, one per state, that you can solve in a single shot with the matrix inverse V = (I − γPπ)⁻¹ rπ. This policy evaluation step — computing the value function of a given policy — is the easy half of RL; the hard half is improving the policy afterwards. Solving it once by matrix inverse and again by repeated Bellman backups shows that the slow iterative method everyone uses in practice is simply converging to this exact closed-form answer.

---

What's in this directory

File	Role
matrix_inverse_eval.py	Evaluates a uniform-random policy on project 01's 5×5 gridworld both ways — one linear solve vs iterated backups — verifies they agree to 1e-7, and plots the convergence.

python matrix_inverse_eval.py     # ~5 s on CPU

Why this is a linear system

For a fixed policy π the Bellman equation has no max in it, so nothing is nonlinear. First collapse the action dimension out of the MDP: under π, the world is just a Markov chain with

P_pi = np.einsum("sa,sat->st", pi, P)   # (S, S): where π actually goes
r_pi = np.einsum("sa,sa->s",   pi, R)   # (S,):   what π actually earns

The Bellman equation V = r_pi + γ P_pi V is then S equations in S unknowns. Move everything to one side, (I − γ P_pi) V = r_pi, and solve:

V = np.linalg.solve(np.eye(S) - gamma * P_pi, r_pi)

(np.linalg.solve is the numerically sane way to apply the matrix inverse without forming it.) The matrix I − γ P_pi is always invertible when γ is below 1 — the same geometric-series fact that makes the discounted return finite.

Iterative evaluation converges to exactly this vector

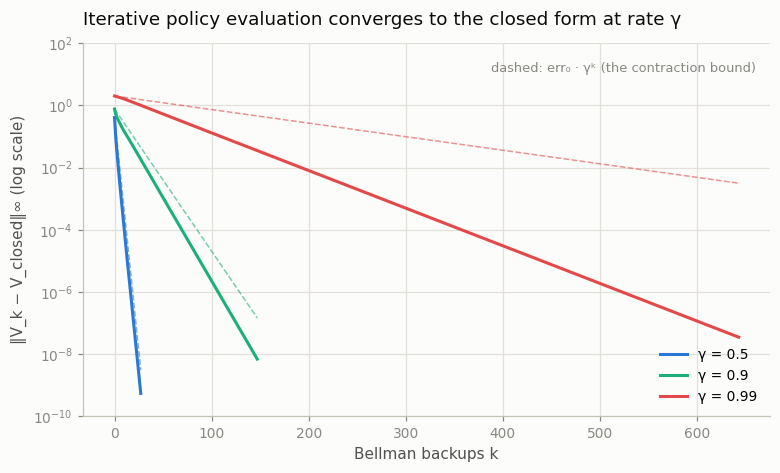

The iterative method starts from V = 0 and repeatedly applies the expectation backup V ← r_pi + γ P_pi V. Because the backup is a contraction mapping, the gap to the closed-form answer must shrink by at least a factor of γ every sweep — a straight line on a log plot:

γ	backups to reach 1e-9	predicted from err₀ · γᵏ	linear solve	iterating
0.5	27	~28	0.1 ms	0.4 ms
0.9	147	~193	0.06 ms	1.2 ms
0.99	643	~2131	0.05 ms	4.7 ms

Two things in that table are worth internalizing:

• γ is the price of patience. The iteration count scales like log(tol) / log(γ) — pushing γ from 0.9 to 0.99 made evaluation ~4× slower, and nothing about the world changed. This cost follows every bootstrapped method in the book, all the way up to deep RL.
• The bound is a worst case. For γ = 0.99 the actual run (643) beat the contraction prediction (~2131) by 3× — the dashed and solid lines in the figure visibly diverge. The reason: this world has absorbing terminals, so a random walk keeps leaking probability into states whose value is already exact, and the effective contraction is faster than γ. The γ-rate is a guarantee, not a speed limit.

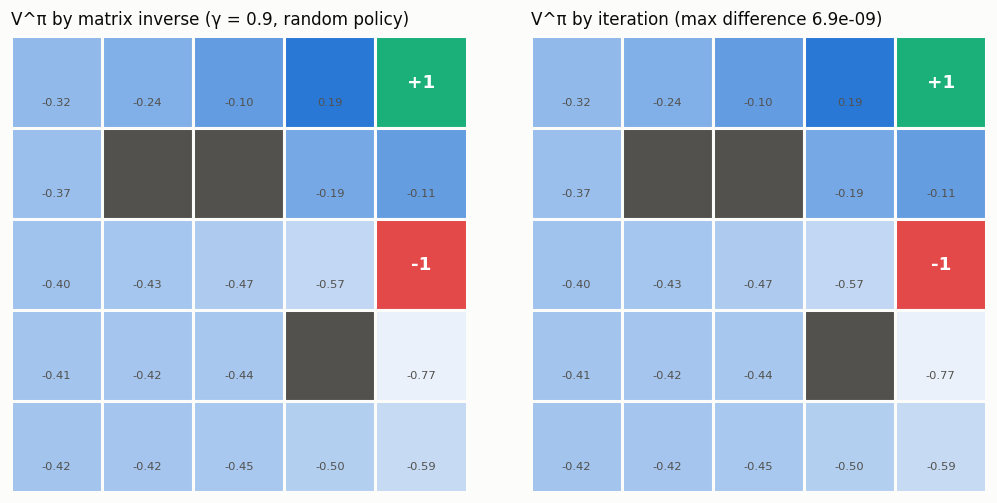

And the two answers are the same answer, down to the solver's tolerance:

The heatmap itself is a nice read: under a uniform-random policy almost every state has negative value — a drunkard's walk pays −0.04 per step and falls into the −1 pit far too often, so only the cells hugging the +1 goal come out ahead. Evaluation tells you how good the policy you have is, not how good the world could be (compare V* from project 01, which is positive everywhere).

Why anyone bothers iterating

At 22 states the linear solve wins on every axis, so why does the rest of RL iterate? Because np.linalg.solve is O(S³) and needs P as an explicit matrix. At the state counts where deep RL lives (Atari's pixel space, roughly 256^(84×84) screens) you can neither store P_pi nor cube it — but you can sample transitions and apply the backup at the sampled states, which is what TD learning and Q-learning do. The closed form is not the method; it is the ground truth the methods are all crawling toward.
