Manifold Visualizer

ELI5 (Explain Like I'm 5)

• The Big Idea: A tiny 32×32 color photo is really just a list of 3,072 numbers. There are unimaginably many possible lists — but almost all of them look like TV static. Real photos are incredibly rare and special: they huddle together on a thin, curved "sheet" floating inside that giant space of numbers. This project draws a picture of that sheet so you can see how real images clump together while random static spreads out into nowhere.
• Analogy: Imagine every possible 3,072-number list is a grain of sand in a vast desert. Real photographs are like grains that all lie along one winding footpath through the dunes. If you scatter random grains, they land all over the desert, evenly, nowhere near the path. Learning to generate images means learning to walk that footpath and never step off into the empty sand.
• Example: We take 1,000 real CIFAR-10 photos and 1,000 pure-noise images and measure them three ways. Real images need only ~80 "directions" to describe 90% of their variety; noise needs ~730. Real images sit close to each other (distances 8–30); noise images are all exactly ~22.6 apart, evenly filling a shell. The footpath is real, and you can measure it.

Key Insight

A 32×32 color image lives in a space with 3,072 numbers — the picture is a 32×32 grid, which is 32 × 32 = 1,024 pixels, and each pixel needs three numbers (one each for how much red, green, and blue it has), so 1,024 × 3 = 3,072 numbers in total. Listing all 3,072 is like giving the image one very long, 3,072-digit address that pins down exactly where it sits. But real photos do not fill that space — they cluster on a thin, curved surface called the manifold. This project draws 1,000 real CIFAR-10 images and 1,000 images of pure random noise, then squashes both groups down to 2D with PCA so you can see them on a plot. The real images form a tight, structured blob while the random ones scatter everywhere, making the manifold visible to the eye. That single picture explains why generation is hard: the model must learn to land only on that thin blob and avoid the vast emptiness around it.

What's in this directory

File	Role
pca_manifold.py	Loads real + noise images, runs PCA, and produces the scatter, the intrinsic-dimension curve, and the pairwise-distance histogram — no training

python pca_manifold.py --data-dir data      # ~10s on CPU, no training

Three ways to see the manifold

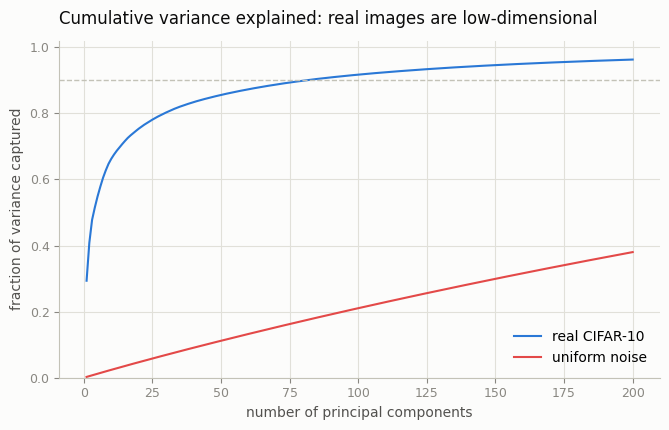

1. Intrinsic dimension — the rigorous version. Fit PCA to each set and ask how many directions you need to capture 90% of the variety. Real images: 81 of 3,072. Noise: 730. Real photos are effectively low-dimensional — the manifold hypothesis, measured:

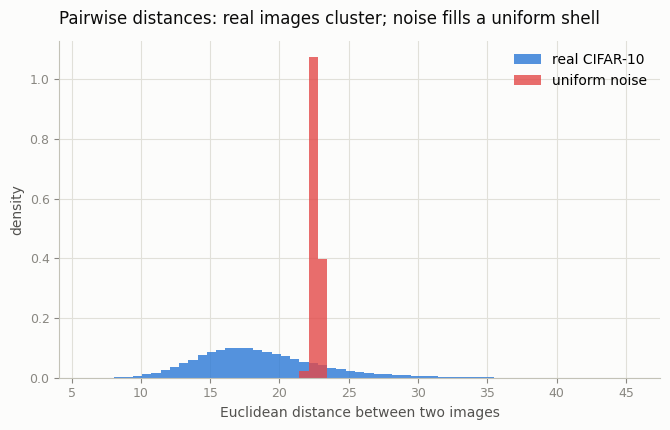

2. Pairwise distances — real cluster, noise scatters everywhere. How far apart are two images? Real images span a broad range (8–30) — some pairs are near-twins, some very different, the signature of structure. Noise images are all ~22.6 apart with almost zero spread: they fill a uniform high-dimensional shell, every point equally far from every other — "scattered everywhere" in the most literal sense:

metric,real,noise
pcs_for_90pct_variance,81,730
top2_variance_fraction,0.408,0.005
mean_pairwise_distance,18.5,22.6
std_pairwise_distance,4.4,0.2

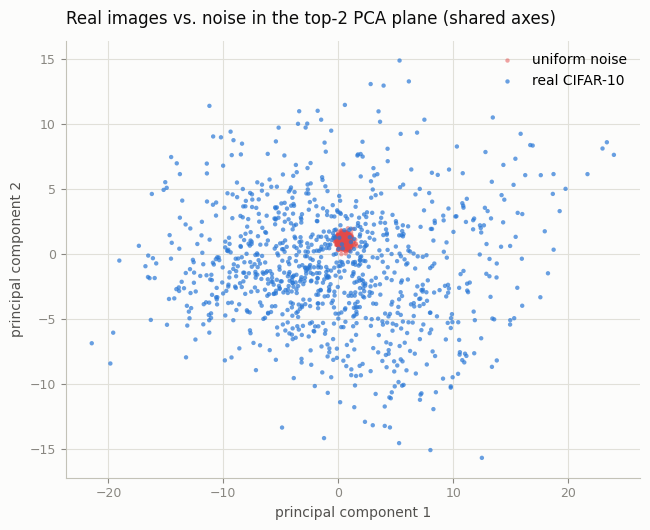

3. The 2D PCA shadow — and a twist worth understanding. Projected onto the top-2 principal components, real images spread out and noise collapses to a tight dot — the opposite of what you might expect:

Why the inversion? PCA picks the two directions of greatest variance, and those are dominated by real-image structure (the top-2 PCs capture 41% of real variance but only 0.5% of noise variance). Noise spreads its variance evenly across all 3,072 dimensions, so any single 2D shadow of it captures almost none and looks compressed. Noise really is scattered everywhere — that's exactly why it vanishes in a 2D slice, and exactly what the distance histogram (view 2) shows without the projection artifact.

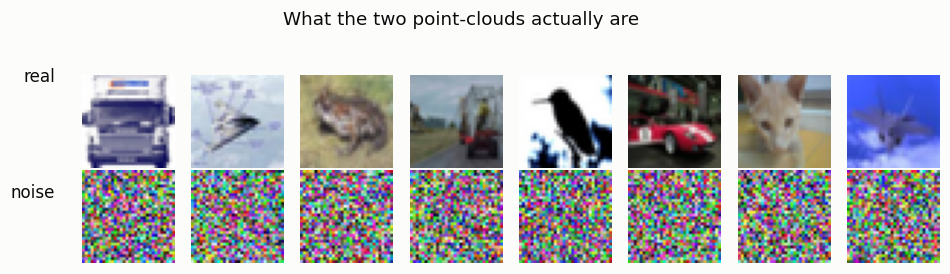

The example images

The two point-clouds are just these: structured photos vs. static.

Why this is the whole game

Every generative model in this guide is, at bottom, a machine for staying on the manifold — for outputting one of the rare 3,072-number lists that looks like a photo instead of one of the overwhelming majority that looks like noise. Likelihood models get punished for wasting probability on the empty space around it; GANs and diffusion sidestep that by only ever learning to land on it. The 81-vs-730 gap is the reason the problem is tractable at all: the target is thin.

Things to try

• Swap CIFAR for MNIST (even lower intrinsic dimension — digits are simpler) and watch the 90%-variance point drop further.
• Color the real scatter by class label to see the manifold split into per-category sub-clusters.
• Replace uniform noise with Gaussian noise, or with shuffled real pixels, and see which "fake" distributions the distance histogram can still tell apart.
