Vanilla GAN on MNIST

ELI5 (Explain Like I'm 5)

• The Big Idea: A GAN (Generative Adversarial Network) is a game played between two computer brains: a Generator (the counterfeiter) who tries to make fake pictures, and a Discriminator (the detective) who tries to catch the fakes. They train by competing against each other. If the generator gets too far ahead, it takes a shortcut called mode collapse — it gets lazy and keeps drawing the exact same, single fake picture that it knows can fool the detective, rather than learning to draw many different things.
• Analogy: Think of a painter learning to paint fake Mona Lisas, and an art critic trying to spot them. If the painter finds one specific smiley face that the critic is bad at identifying as a fake, the painter might just paint that exact same face over and over. Without a tough critic pushing them to paint other parts of the portrait, the painter stops trying to learn anything else.
• Example: We train a GAN to draw handwritten numbers. In the stable version where they are evenly matched, the generator draws 10 different digit classes (0 through 9). In the collapse version, the generator gets too powerful too fast, stops trying, and outputs the digit "8" on all 64 of 64 tries.

Key Insight

A GAN trains two networks in a contest: a generator that turns a vector of random noise into a fake image, and a discriminator that looks at an image and guesses whether it is real or generated. They improve by competing — the generator keeps trying to fool the critic while the critic keeps getting better at catching it — like a counterfeiter and a detective who each sharpen the other. This project builds DCGAN, the first convolutional GAN recipe that trained reliably, on MNIST digits, where you will watch the two losses oscillate instead of settling and learn to spot mode collapse — when the generator gives up on variety and keeps emitting the same one or two digits that happen to fool the critic.

What's in this directory

File	Role
dcgan.py	Shared DCGAN Generator/Discriminator (32×32, MNIST zero-padded from 28×28), plus a ProjectionDiscriminator for conditioning. Reused by every project in this phase (19, 20, 22, 23).
train.py	Trains the non-saturating GAN twice — stable and collapse — then --plot builds the figures below.

python train.py --config stable    --data-dir data   # ~3 min on CPU
python train.py --config collapse  --data-dir data   # ~1.5 min on CPU
python train.py --plot                                # seconds

Both configs use the exact same architecture and loss — only the Adam learning rates for G and D differ. stable uses the DCGAN-paper recipe (lr_g = lr_d = 2e-4). collapse gives G a 40x higher learning rate than D (2e-3 vs 5e-5): D can't keep up, so instead of being pushed toward covering the whole data distribution, G finds the handful of fakes that already fool a lagging critic and stops exploring.

To measure collapse rather than just eyeball it, 64 samples are read by the small MNIST classifier from project 58 (via sys.path, trained fresh here in ~15s the first time and cached at 58-caption-ablation/mnist_clf.pt). The predicted-digit histogram gives an objective collapse signal — no unique digits left means every sample is being read as the same class.

Results

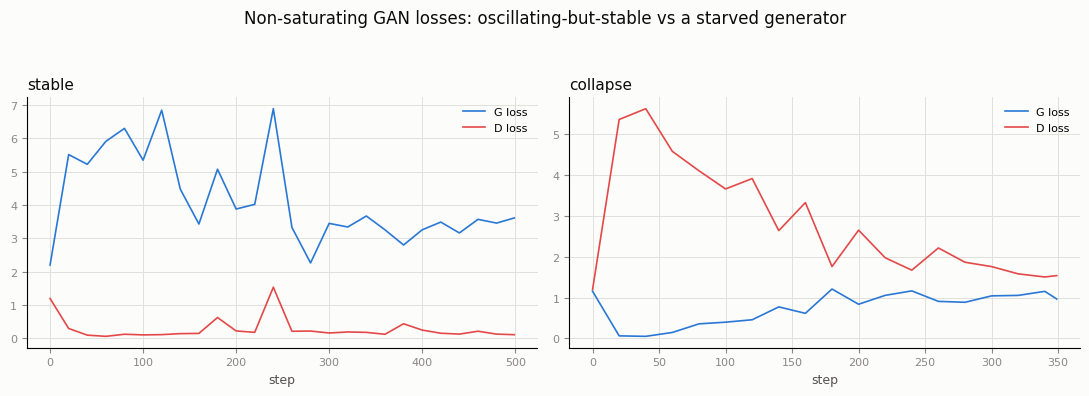

Losses: stable oscillates in a wide but bounded band (textbook non-equilibrium GAN training — D wins locally, G recovers, repeat). collapse shows the tell: D's loss shoots up early (it's suddenly seeing much worse fakes than before) and G's loss keeps dropping — G found something that reliably fools D and is no longer being pushed to do anything else.

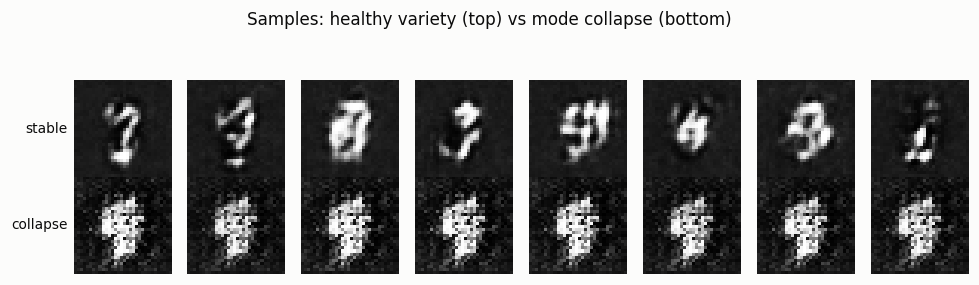

Samples: the stable row is eight different draws that decode into eight different rough digit shapes. The collapse row is eight different z vectors decoding into what is visibly the same blob — the generator has thrown away the input noise almost entirely.

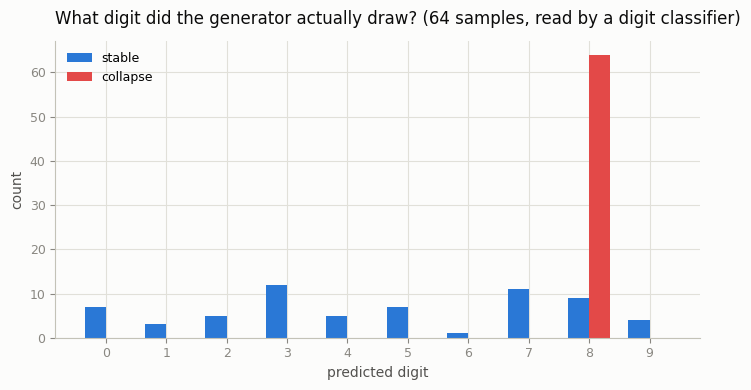

The classifier makes it quantitative. Feed 64 fresh samples from each model through the digit classifier:

config,wall_time_s,unique_digit_classes,normalized_entropy,counts
stable,192.9,10,0.937,"[7, 3, 5, 12, 5, 7, 1, 11, 9, 4]"
collapse,86.1,1,-0.000,"[0, 0, 0, 0, 0, 0, 0, 0, 64, 0]"

stable uses all 10 digit classes with high entropy (0.94, close to the 1.0 ceiling for a uniform 10-way split). collapse reads as digit "8" on all 64 of 64 samples — entropy 0, one mode, total collapse. This is the failure mode every later fix in this phase (WGAN-GP's smoother loss, the conditioning in project 20, and every stabilization trick in modern GANs) is designed to prevent.

Why this happens

The non-saturating loss trains G to move fakes toward wherever D currently draws its decision boundary — it has no term that rewards covering the data distribution, only fooling the current critic. If D is too weak or too slow relative to G, G can satisfy that objective completely by producing one convincing fake repeatedly, since there is no mechanism pushing it to also produce a different one. A well-matched D (this project's stable config) keeps moving its boundary fast enough that no single fake stays convincing for long, forcing G to keep spreading its mass across the data manifold. This is precisely the fragility that motivated the Wasserstein loss in project 19.

Things to try

• Push the learning-rate ratio further (lr_g=5e-3) and see collapse happen even faster.
• Increase d_steps instead of the LR ratio — a stronger D per G-step is the other classic way to prevent collapse (used by WGAN-style training).
• Interpolate between two z vectors in the stable model and watch the digit morph smoothly — evidence the generator learned a continuous, meaningful latent space rather than memorizing discrete images.
