Tiny AE on MNIST

ELI5 (Explain Like I'm 5)

• The Big Idea: An autoencoder is a "squeeze and rebuild" machine. It takes a 784-number picture of a digit, squeezes it through a narrow funnel down to just 32 numbers, then tries to rebuild the original picture from only those 32. To succeed, the funnel is forced to keep only what truly matters about a digit and throw away the rest — it learns what a digit is.
• Analogy: It's like describing a friend's face well enough that a sketch artist could redraw it from your description alone. You can't list every pore, so you keep the essentials ("round face, curly hair, big smile"). Those essentials are the 32 numbers. And here's the fun part: if you blend two descriptions halfway, the artist draws a believable in-between face.
• Example: We squeeze each MNIST digit to 32 numbers and rebuild it. Then we take the 32 numbers for a "3" and for an "8", average them, and rebuild — out comes a convincing 3-becoming-8. But feed the machine random 32 numbers and it draws nonsense, because a plain autoencoder never tidied up its funnel. That mess is exactly what the VAE fixes next.

Key Insight

An autoencoder is the simplest way to learn a compressed code for images. This project squeezes each 28×28 MNIST digit (784 numbers) down to just 32 numbers and then rebuilds it, forcing the network to keep only what matters. Those 32 numbers form the latent space, and the real magic is what happens between points: take the codes for a "3" and an "8", average them, decode the result, and you get a believable in-between digit. That smooth blending is the first sign the model learned genuine structure rather than memorizing pixels — and it is the foundation every fancier generator builds on. Notice there is no randomness yet: a plain autoencoder can rebuild and interpolate, but it cannot invent new digits from nothing, which is exactly the gap the VAE closes next.

What's in this directory

File	Role
vae_lib.py	Shared conv encoder/decoder + AE and VAE classes, reused by projects 07, 08, 11
ae.py	Trains the autoencoder and produces the reconstruction, interpolation, and random-latent figures

python ae.py --data-dir data      # ~2 min on CPU

What the autoencoder is

Two conv nets back to back: an encoder compresses 28×28 = 784 pixels to a 32-number latent code, and a decoder rebuilds the image from just those 32 numbers. Training minimizes the reconstruction error (per-pixel binary cross-entropy) — there is no randomness and no prior, just "squeeze then rebuild." The 24× bottleneck is the whole point: it forces the network to encode what a digit is, not which pixels are on.

Results

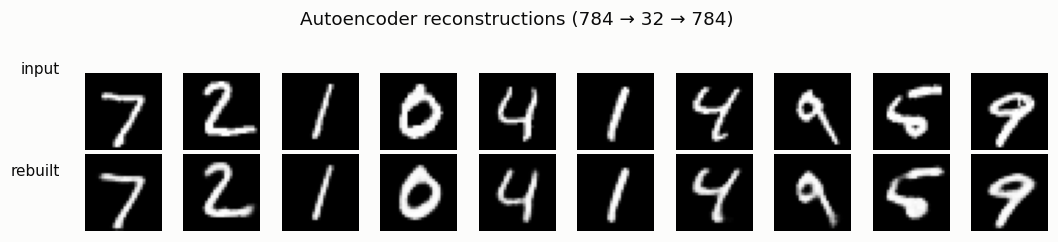

Reconstructions. 784 → 32 → 784 loses fine detail but keeps the digit:

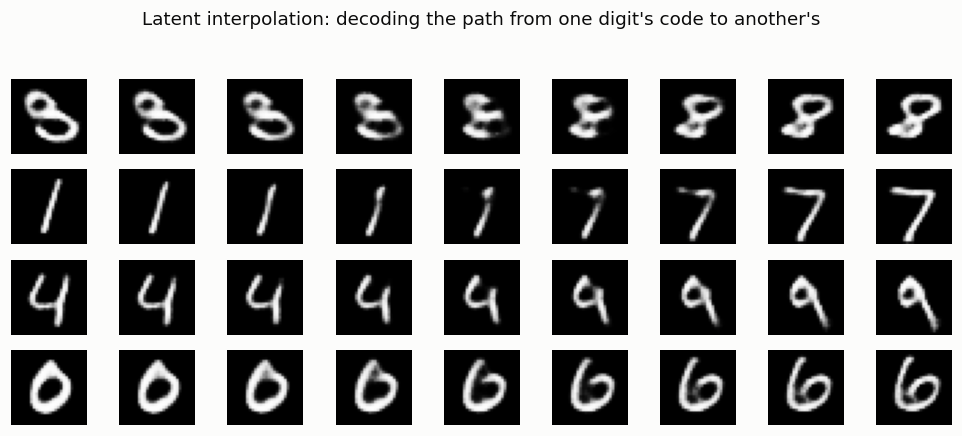

Latent interpolation — the payoff. Encode two digits, walk a straight line between their codes, and decode along the way. The in-between images are believable digits, morphing smoothly from one class to another. That smoothness means the 32-number space has genuine structure — nearby codes decode to similar images:

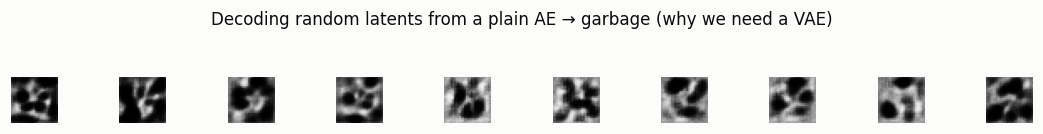

The gap the VAE fills. A plain AE can rebuild and interpolate, but it cannot generate. Its latent space has no defined shape, so if you feed the decoder a random code it has never organized around, you get garbage:

metric,value
latent_dim,32
test_recon_bce,58.2

Why this is the foundation

Every model in Phase 2 — and the VAE buried inside every modern latent-diffusion system — is this same squeeze-and-rebuild skeleton. The autoencoder proves two things a generator needs: that images compress to a low-dimensional code (the manifold from Phase 1, made usable), and that the code space is smooth enough to interpolate. What it lacks is a known distribution to sample from — you can't draw a "random valid code" because the AE never constrained where valid codes live. The Vanilla VAE adds exactly that constraint, turning this rebuild-only machine into a generator.

Things to try

• Shrink the latent to 8 or grow it to 128 and watch reconstructions blur or sharpen — the bottleneck width is the compression/quality dial.
• Interpolate between two examples of the same digit; the path stays within one class, tracing style (slant, thickness) instead of identity.
• Add small Gaussian noise to a real digit's code before decoding and see how far you can push before the digit breaks — a preview of why the VAE's noise forces robustness.
