Hierarchical VAE

ELI5 (Explain Like I'm 5)​

  • The Big Idea: A normal VAE describes a whole picture with one list of numbers. A hierarchical VAE uses two lists at different zoom levels: a tiny coarse list for the big picture (overall shape and color) and a bigger fine list for local detail. Splitting the job by zoom level matches how real photos are built — big shapes and fine texture at the same time — so it rebuilds them a bit better.
  • Analogy: It's how an artist paints: first a rough blocking pass for composition and color, then a detail pass for texture. One list handles the blocking, the other the details. Trying to do both with a single list is like painting a whole canvas at one brush size — you lose either the big shapes or the fine grain.
  • Example: We give a flat VAE and a two-level VAE the exact same latent budget (512 numbers) and train them identically on CIFAR photos. The two-level model rebuilds test images with ~5% lower error — a real, if modest, win from dividing the work across scales.

Key Insight​

A hierarchical VAE stacks more than one layer of latent variables at different sizes — here an 8×8 grid and a smaller 4×4 grid — so the model can split its work across scales. The coarse 4×4 level captures the big picture (overall shape and color) while the finer 8×8 level fills in local detail, much like sketching rough shapes before adding texture. This project trains such a two-level model on CIFAR-10 and asks a simple question: does dividing the labor across scales beat a single flat latent space? For natural images, which contain structure at many sizes at once, the answer is usually yes — and that is why the strongest VAEs and modern image generators are all multi-scale.

What's in this directory​

FileRole
hvae.pyDefines a flat VAE and a two-level hierarchical VAE with equal latent budget, trains both on CIFAR, and compares reconstruction error and samples
python hvae.py --data-dir data      # ~9 min on CPU (two CIFAR VAEs)

The two architectures, matched fairly​

Both models get 512 latent numbers; only the arrangement differs:

  • Flat — one 8×8×8 latent grid. Encode → sample → decode.
  • Hierarchical — a coarse 4×4×16 top latent (256 numbers) and a fine 8×8×4 bottom latent (256 numbers). The decoder upsamples the coarse latent to 8×8 and fuses it with the fine latent, so global structure and local detail are produced by different variables at different resolutions.

Same budget, same training, same everything else — so any difference is due to the multi-scale structure alone.

Results​

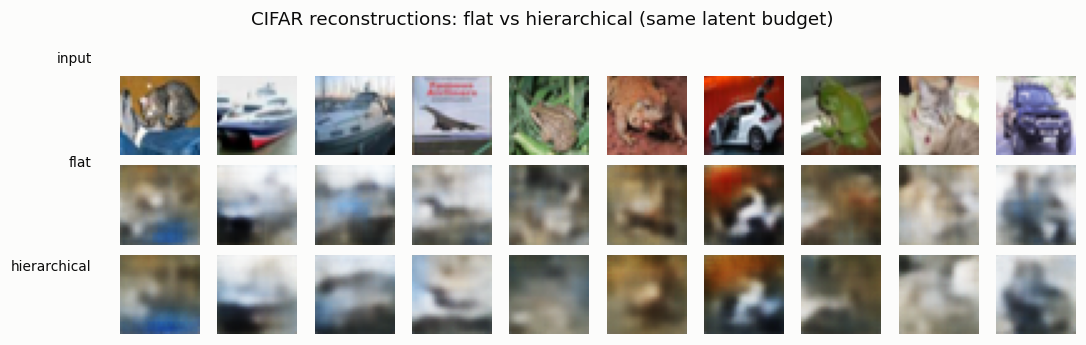

Reconstructions. Both are blurry (a small VAE on CIFAR always is), but the hierarchical model holds onto slightly more structure and color detail:

Reconstructions

Quantified — the fair comparison. At equal latent budget, the two-level model rebuilds held-out images with 4.7% lower MSE:

model,latent_budget,test_mse
flat,512,0.01398
hierarchical,512,0.01333   ← 4.7% better

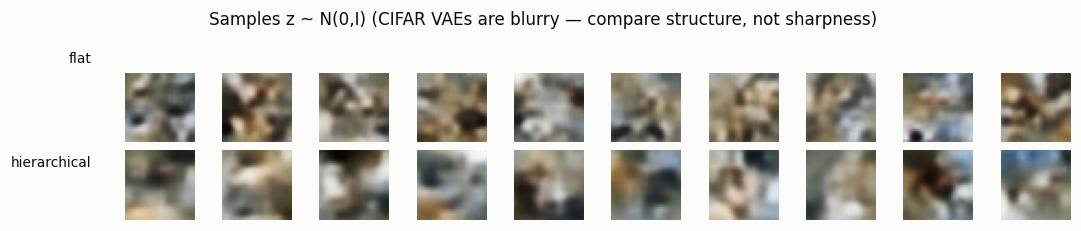

Samples. Drawing from the prior gives blurry color blobs either way — a VAE this size cannot make sharp CIFAR images. Compare structure, not sharpness: the hierarchical samples show marginally more coherent layout:

Samples

Why multi-scale is the rule, not the exception​

The win here is modest because the model is tiny and CIFAR is small — but the direction is the point, and it holds all the way up. Real images have structure at every scale simultaneously (a face has a head shape and eyelash texture), and forcing one flat latent to represent all of it is inefficient. Every strong image system is multi-scale: NVAE and Very Deep VAE stack dozens of latent levels; VQ-VAE-2 (Phase 3) uses a top/bottom code pyramid; latent diffusion's U-Net is multi-resolution by construction. This project is the smallest possible demonstration of why. It also exposes the VAE's ceiling on natural images — the blur that motivates the discrete tokenizers of Phase 3 and handing generation to diffusion in Phase 7.

Things to try​

  • Shift the budget between levels (fatter coarse vs. fatter fine) and see which split helps most — natural images usually want more capacity in the fine level.
  • Add a third latent level at 16×16 and check whether the reconstruction gain compounds.
  • Make the bottom latent's prior depend on the top (a true top-down conditional prior, as in Ladder/NVAE) instead of independent N(0, I) priors, and compare.
