DDPM on MNIST

ELI5 (Explain Like I'm 5)

• The Big Idea: Imagine learning to paint by taking a clean picture, throwing sand on it until it is completely buried under random grains, and then learning to brush the sand away grain-by-grain to reveal the picture again. That is what a Denoising Diffusion model does. We take a clean picture of a handwritten number, add random static noise in steps until it is just random fuzz, and teach a computer network (called a U-Net) to guess exactly what noise we added at each step so we can clean it off.
• Analogy: It is like restoring a dusty old painting. Instead of trying to paint a masterpiece from a blank canvas all at once, you start with a canvas covered in dust, and your only job is to blow a tiny bit of dust off at each step until the beautiful painting underneath is clean.
• Example: If you start with a screen of pure black-and-white static, the model looks at it and says, "I think there is a faint shape of a '7' buried under here; let's wipe away some fuzz." After 300 steps of cleaning, a perfect, clean number 7 appears.

Key Insight

A DDPM (Denoising Diffusion Probabilistic Model) learns to generate images by mastering one almost trivial skill: look at a noisy image and predict the noise that was added to it. Training has two halves — a forward process that takes a clean MNIST digit and stirs in a controlled amount of random (Gaussian) noise (you can jump straight to any noise level in a single step, so generating training pairs is essentially free), and a learned reverse process in which a small U-Net — an encoder-decoder with skip connections that let it keep fine pixel detail while still reasoning about the whole image — guesses that noise so it can be subtracted away. The loss is just mean squared error between the predicted and the true noise, which is why diffusion training is so stable compared with a GAN's two-player tug-of-war. This project builds the whole pipeline at toy scale and samples by starting from pure static and running the reverse step T times (often 1000), watching a recognizable digit slowly emerge from the noise.

What's in this directory

File	Role
diffusion.py	The math: noise schedules, the closed-form forward jump q_sample, the MSE loss, and the T-step reverse sampling loop
unet.py	The network: a ~300k-parameter U-Net that predicts the noise in x_t given t
train.py	Training loop with an EMA (exponential moving average) copy of the weights for sampling
sample.py	Draws a sample grid and a denoising-trajectory strip from a trained checkpoint
make_figures.py	Builds the forward-process strip and the loss curve for this README
plot_style.py	Shared matplotlib styling used by all Phase 5 project figures

The other Phase 5 projects import diffusion.py and unet.py from here — everything after this project is a variation on these two files.

How the implementation maps to the math

The forward process is three lines (diffusion.py, q_sample). Because a sum of Gaussians is Gaussian, noising an image for t steps collapses into a single closed-form jump:

x_t = sqrt(a_bar_t) * x0 + sqrt(1 - a_bar_t) * eps,   eps ~ N(0, I)

a_bar_t (the cumulative product of 1 - beta_t) is precomputed once for all T steps in the constructor. This is why diffusion training is cheap per example: a training pair at any noise level costs one multiply-add, not a T-step simulation.

One efficiency detail worth knowing: the canonical DDPM uses T = 1000 with beta from 1e-4 to 0.02. This project defaults to T = 300 and scales the beta endpoints by 1000/T, which keeps the total noise budget identical — a_bar_T still lands at effectively zero, so sampling can still start from pure Gaussian noise, but every sampling loop costs 3.3x fewer network calls. Pass --T 1000 for the paper setting.

The loss is one randint and one MSE (diffusion.py, loss). Sample a random timestep per image, noise the batch with q_sample, and regress the U-Net's output onto the exact noise tensor you just added. There is no adversary and no likelihood bound in sight — the ELBO derivation collapses to this simple objective (Ho et al.'s "L_simple").

The U-Net predicts the noise, not the image (unet.py). Layout at a glance: 28×28 → 14×14 → 7×7 and back up, with skip connections across each resolution. Three details matter more than size here:

• Time conditioning. The timestep is embedded with sinusoidal features (same trick as transformer positions), pushed through a small MLP, and injected into every residual block as a learned scale-and-shift of its GroupNorm — FiLM, a.k.a. AdaGN. One network serves all T noise levels because every block gets told which level it is working at.
• Self-attention only at 7×7. Attention is quadratic in pixel count, so it runs where it is cheap; convolutions handle the higher resolutions.
• Zero-initialized output conv. The model starts by predicting zero noise for every input, so the first gradient steps are well-behaved.

Sampling walks the schedule backwards (diffusion.py, p_sample_loop). Start from pure Gaussian noise x_T, and for t = T-1 ... 0 compute the posterior mean from the predicted noise, then add a shot of fresh noise scaled by the posterior variance (except at t = 0, where you keep the mean):

x_{t-1} = ( x_t - beta_t / sqrt(1 - a_bar_t) * eps_theta(x_t, t) ) / sqrt(alpha_t)
        + sqrt(beta_tilde_t) * z

That fresh noise is not optional — it is what makes the reverse walk match the forward process's statistics; drop it and samples turn blurry and gray.

One practical safeguard the equation above hides (posterior_mean in the code): instead of applying the eps-form update directly, reconstruct the implied clean image x0, clamp it to [-1, 1], and re-derive the mean from that. The two are algebraically identical for a perfect prediction, but the clamp stops prediction errors from compounding when beta_t is large — with a cosine schedule, skipping it makes sampling visibly explode into saturated noise. Every serious diffusion codebase clips here.

EMA weights are what you sample from (train.py). A shadow copy of the model is updated as shadow = 0.995 * shadow + 0.005 * model every step. Diffusion sample quality is noticeably smoother from the averaged weights, especially on short runs like this one.

Run it

python train.py                         # ~3 min on a multicore CPU
python sample.py                        # 8x8 grid + trajectory strip, ~30 s
python make_figures.py                  # forward-process strip + loss curve

Defaults are tuned so the whole project runs in a coffee break: T = 300 (scaled-linear beta), a ~300k-param U-Net, batch 64, 1000 steps, AdamW at 3e-4, EMA decay 0.995. Quality scales with budget — --T 1000 --steps 4000 (ideally with --device cuda) reproduces the classic setting with visibly cleaner samples.

Results

The run recorded below is the checked-in default: 1000 steps (about one epoch), T = 300, a few minutes on CPU.

The forward process — one real digit pushed through q_sample at nine points spanning the schedule, from t = 0 (clean) to t = 299 (the last step). By mid-schedule the digit is barely visible; at the end it is statistically indistinguishable from pure noise. This strip is the entire "data generation" story for training:

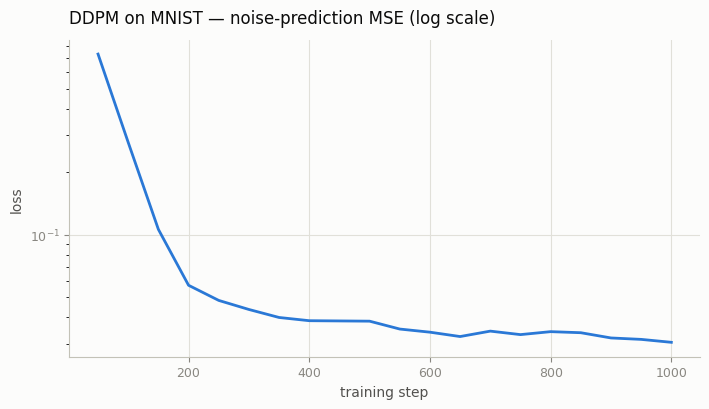

The loss curve — noise-prediction MSE falls fast in the first few hundred steps and then grinds slowly; that long tail is where sample quality comes from. Note the log scale:

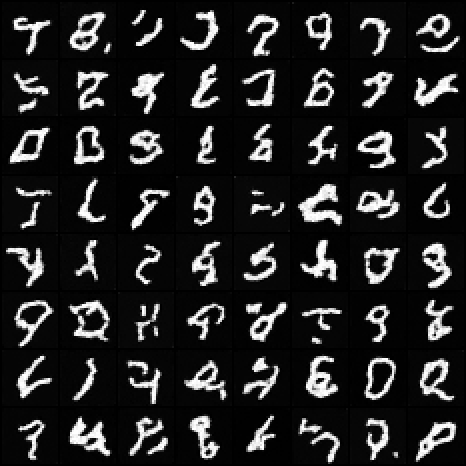

Samples — 64 digits drawn with the full T-step loop from the EMA weights. Not every sample is a clean digit at this budget (a converged run takes 10x the steps), but stroke structure, thickness variety, and class coverage are all clearly present:

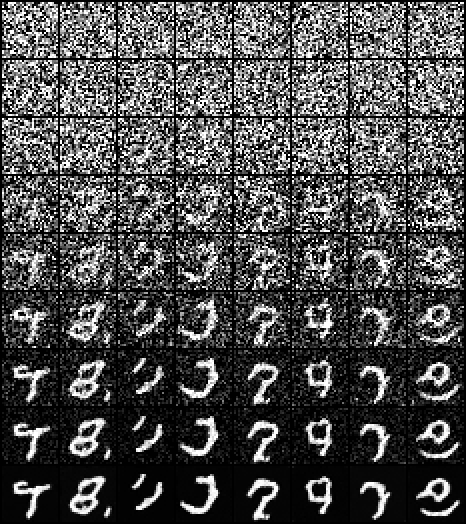

The denoising trajectory — the same 8 samples photographed at eight decreasing noise levels plus the final image (top row pure noise, bottom row the result). Global layout appears first, edges sharpen late — the coarse-to-fine character of diffusion sampling is visible in every column:

Things to try

• Drop the fresh noise term in p_sample (keep only the mean) and look at the samples — you have just discovered why the stochasticity matters.
• Train with --schedule cosine and compare — that is the Cosine vs linear schedule project.
• Move along the quality-compute curve: --T 1000 --steps 4000 in one direction, --T 100 in the other. Quality degrades gracefully on MNIST — then reason about why large T matters more for natural images.
• Predict x0 instead of eps (change the regression target in diffusion.loss and the mean computation to match) and compare training stability at high t.
