Cosine vs Linear Schedule

ELI5 (Explain Like I'm 5)

• The Big Idea: When we add noise to an image, we need a plan (called a "schedule") for how much noise to add at each step. A linear schedule is like dumping the same bucket of sand on a painting at every step; it gets completely buried almost immediately, meaning the model spends most steps looking at pure static and learning nothing. A cosine schedule starts by adding noise very gently, only getting faster in the middle, and slowing down again at the end, so the painting's shape remains recognizable for much longer.
• Analogy: Imagine trying to teach someone to recognize a face while putting a frosted glass pane in front of it. A linear schedule is like spray-painting the glass thick black in the first second—now they can't see anything. A cosine schedule is like turning a dimmer switch down slowly, giving their eyes time to adapt to the dimming light.
• Example: Under a linear schedule, by step 50 out of 300, a cat photo is already a gray blob of noise. Under a cosine schedule, the cat's eyes and ears are still faintly visible at step 150, allowing the model to learn the shape of ears and eyes at those intermediate steps.

Key Insight

The noise schedule decides how fast a DDPM destroys an image as it walks from clean data to pure static — and that single choice quietly controls how well the model trains. A linear schedule adds noise at a constant rate, which turns out to wipe out almost all image structure too early, so the model wastes many of its later steps learning from inputs that are already nearly pure static. A cosine schedule (Nichol & Dhariwal) instead follows the gentle shoulder of a cosine curve, keeping more signal alive through the middle of the process so every step carries useful information. This project trains two otherwise-identical models and compares their FID (Fréchet Inception Distance) and samples, making the schedule's impact concrete rather than theoretical.

What's in this directory

File	Role
compare.py	The whole study: schedule curves, loss curves, sample grids from both checkpoints, and a Fréchet distance for each in classifier feature space
feature_net.py	A small MNIST classifier trained once and used only as a feature extractor for the metric

There is deliberately no training script here: the two models are the DDPM on MNIST project's train.py run twice, changing only --schedule. Same architecture, same seed, same step budget, same optimizer — a few minutes each on CPU:

# arm 1 — the DDPM on MNIST project's checkpoint is the linear arm (train it there)
python ../24-ddpm-on-mnist/train.py --schedule linear

# arm 2 — the cosine twin, saved into this project
python ../24-ddpm-on-mnist/train.py --schedule cosine \
    --out checkpoints/mnist_cosine.pt --log outputs/train_log_cosine.csv

# the comparison
python compare.py

The only line that differs

Both schedules live in the DDPM on MNIST project's diffusion.py (make_beta_schedule). Linear specifies the per-step noise beta_t directly; cosine goes the other way around — it specifies how much signal should survive at every step (a_bar_t, a squared-cosine curve) and derives each beta_t from the ratio of consecutive a_bar values.

That inversion is the insight: beta_t is an implementation detail, but a_bar_t is what the model experiences — it is the signal-to-noise ratio of the training examples at step t.

Results

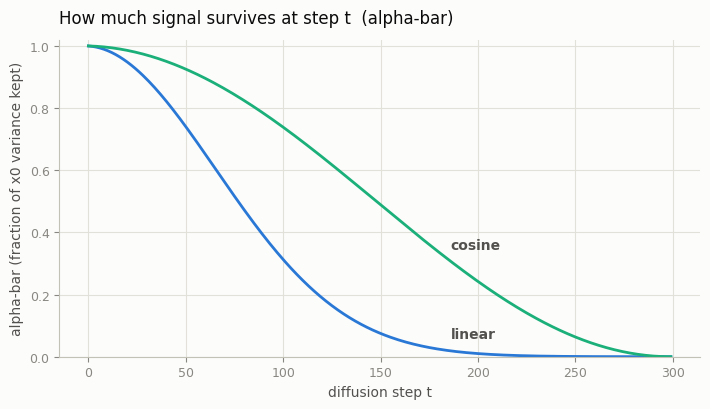

What each schedule does to the signal. The linear schedule crushes a_bar to nearly zero by mid-schedule — roughly the last third of all training examples are almost pure static, and the model can learn nothing from them. The cosine schedule spends its steps far more evenly:

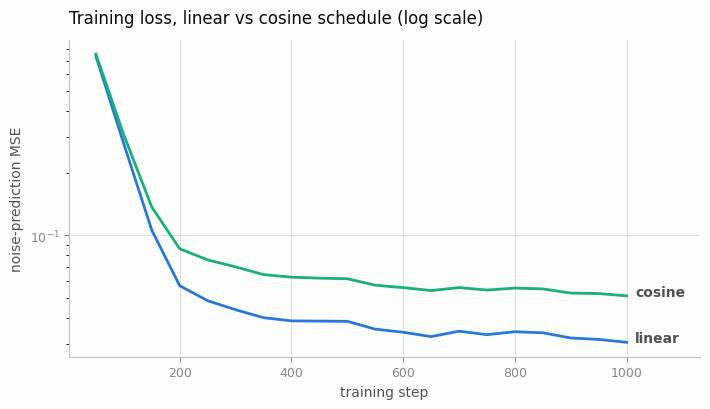

Training loss is NOT comparable across schedules — and that is a lesson in itself. The two models regress noise at different signal-to-noise ratios, so their MSE values live on different scales. Never conclude "cosine is better" from a lower loss curve; that is what the sample-space metric below is for:

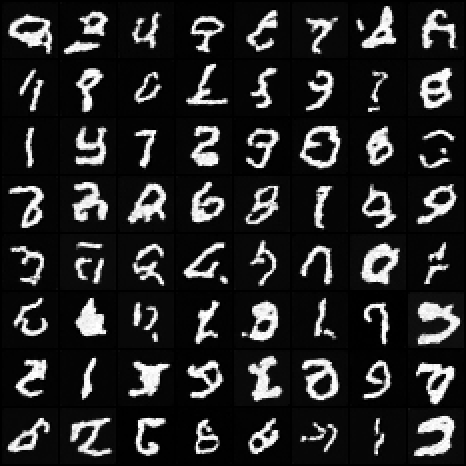

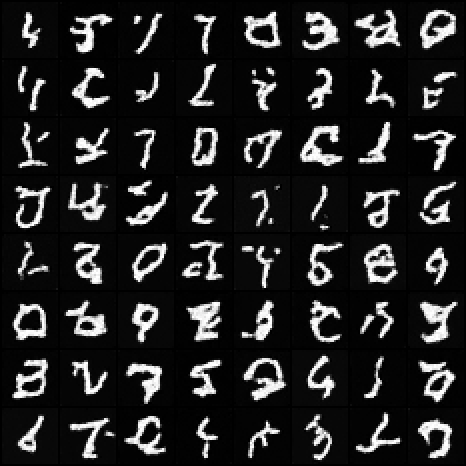

Samples, same seed, same step count. First grid linear, second cosine — the checked-in grids below are 64 digits each drawn with the full T-step loop:

The metric. True FID uses InceptionV3, which is meaningless on 28×28 grayscale digits — so compare.py computes the same Fréchet distance in the feature space of a small MNIST classifier (feature_net.py, 64-d features, against 2 048 held-out real digits). The recorded run (256 samples per model, identical sampling seed) gives:

schedule	feature-space Fréchet distance (lower is better)
linear	41.4
cosine	70.9

What to take away

• On MNIST at this scale the linear schedule actually wins — cosine's advantage is about not wasting capacity on high-resolution natural images, and MNIST digits at 28×28 are neither. Cosine also spends far more of its steps at high signal (see the a_bar plot), so at a very short training budget the model sees fewer hard, high-noise examples per step of the sampler it must run at generation time. The mechanism (the a_bar plot) is what to internalize here, not the ranking; on ImageNet-scale data the ranking flips, which is exactly why Nichol & Dhariwal proposed cosine.
• A war story this project reproduced by accident: with cosine's near-1 final betas, the textbook eps-form reverse update explodes into saturated noise. The fix — clamp the implied x0 to [-1, 1] inside each reverse step (posterior_mean in the DDPM on MNIST project's diffusion.py) — is standard in every real diffusion codebase and the difference it makes is dramatic: the cosine model's Fréchet distance drops from ~1800 (pure static) to 70.9.
• The cosine schedule's late steps still carry visible structure, so the denoising trajectory sharpens more gradually — compare trajectory strips if you rerun the DDPM on MNIST project's sample.py against the cosine checkpoint.
• Try other --T values: the linear schedule's "wasted tail" fraction stays fixed under the scaled-beta convention, but the cosine curve's shape does not depend on T at all — verify both claims against the a_bar plot.
