Score Matching from Scratch

ELI5 (Explain Like I'm 5)

• The Big Idea: Instead of trying to learn a complicated formula for the probability of every possible image, we learn a "score." The score is simply a map of arrows pointing from low-probability zones (bad, noisy images) toward high-probability zones (good, clean images). We train the model by adding noise to a point and teaching it to point an arrow directly back to where the clean point was.
• Analogy: Imagine being lost in a dark valley. Instead of having a complete map of the entire country, you just have a compass that always points toward the nearest warm cabin. If you follow the compass arrows, you will eventually walk right to a cabin.
• Example: We place 2D points in a shape like a double ring. The model learns a grid of arrows pointing toward the rings. If we put a random point anywhere on the screen and follow the arrows (using Langevin dynamics), the point slides smoothly until it lands perfectly on one of the rings.

Key Insight

Instead of learning the data density p(x) directly — which requires an intractable normalizing constant — score matching learns its score, the gradient of log-density ∇_x log p(x) that tells you which way to nudge a point to make it more likely. The practical trick is denoising score matching: add a known amount of Gaussian noise to each sample and train the network to point back toward the clean point, which provably equals the score of the noised distribution — so you never need the true density. Once you have the score, you generate with Langevin dynamics: repeatedly step in the score direction plus a little random jitter, like a ball rolling into high-probability valleys while being shaken so it doesn't get stuck in one spot. This project builds the whole loop on 2D toy data (8-Gaussians, swiss roll) — small enough that you can plot the learned vector field and watch the sampled points line up with the true distribution.

What's in this directory

File	Role
toy_data.py	The two 2D datasets: eight Gaussians on a circle, and a spiral
score_net.py	A 3-layer MLP s(x, sigma) with a Fourier embedding of log(sigma)
train_score.py	Denoising score matching — the objective is three lines
sample_and_plot.py	Annealed Langevin dynamics plus every figure below

Everything runs on CPU in about a minute. The Probability flow ODE project reuses the checkpoints trained here to build the probability-flow ODE and exact likelihoods.

The objective, in full

u = torch.rand(B)
sigma = SIGMA_MIN * (SIGMA_MAX / SIGMA_MIN) ** u        # log-uniform noise scale
x_noisy = x0 + sigma[:, None] * torch.randn_like(x0)
loss = ((sigma[:, None] * model(x_noisy, sigma) + eps) ** 2).mean()

Three details carry all the theory:

• The regression target is -eps / sigma — "point back at the clean sample, scaled by how far you were pushed." Vincent (2011) proved this equals ∇_x log p_sigma(x), the score of the noised data distribution. No density, no partition function, no sampling from the model during training.
• The sigma * inside the loss makes every noise scale contribute a comparable gradient — otherwise small sigmas (with huge scores, ~1/sigma) would drown out everything else. This is the seed of the idea that EDM (the EDM reparameterization project) later turns into full preconditioning.
• A whole ladder of sigmas is trained at once, from 0.05 (barely blurred) to 8.0 (the data is one featureless cloud). The high end is not waste: a score field only defined near the data would give a sampler started from random noise no signal at all. Multi-scale training is what makes generation from scratch possible.

Sampling: annealed Langevin dynamics

x <- x + (alpha/2) * s(x, sigma) + sqrt(alpha) * z,     alpha = 0.1 * sigma^2

run for 80 steps at each rung of a decreasing sigma ladder. The step size must shrink with sigma — the score's magnitude grows like 1/sigma^2, so alpha ∝ sigma^2 keeps each move a fixed fraction of the local structure. Get this wrong in the too-large direction and the chain explodes off the plane (we know because the first version of this script did exactly that); too small and the chain never mixes between modes.

Results

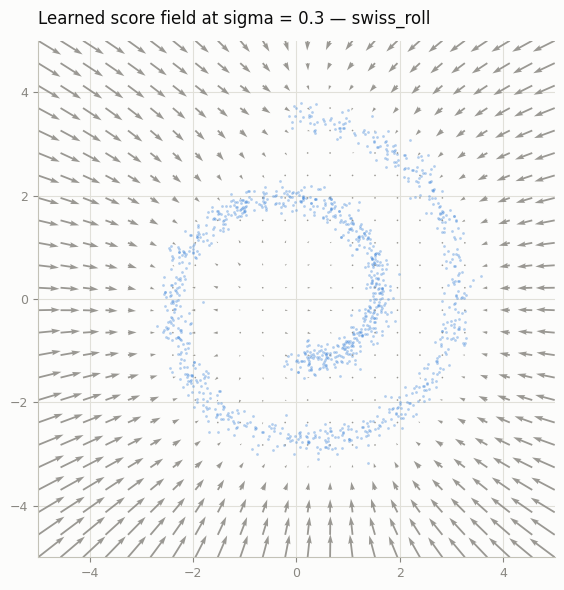

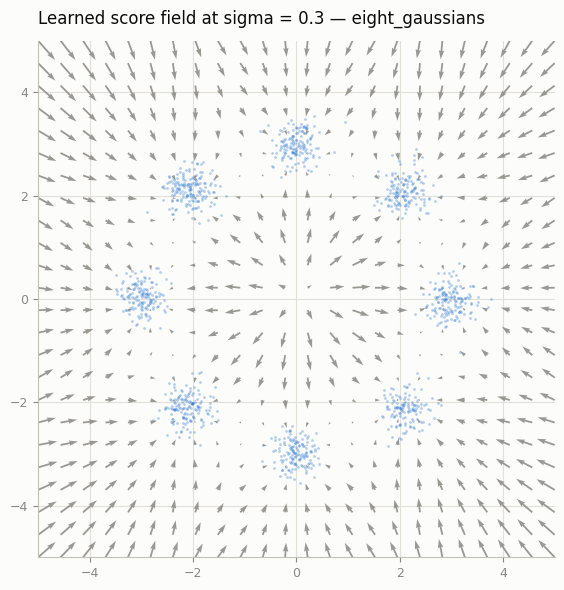

The learned score field. Arrows at every grid point, true data in blue. Far from the modes the arrows all point inward toward the data; close in, each mode becomes its own attractor with the field vanishing at the center — exactly what ∇ log p should look like:

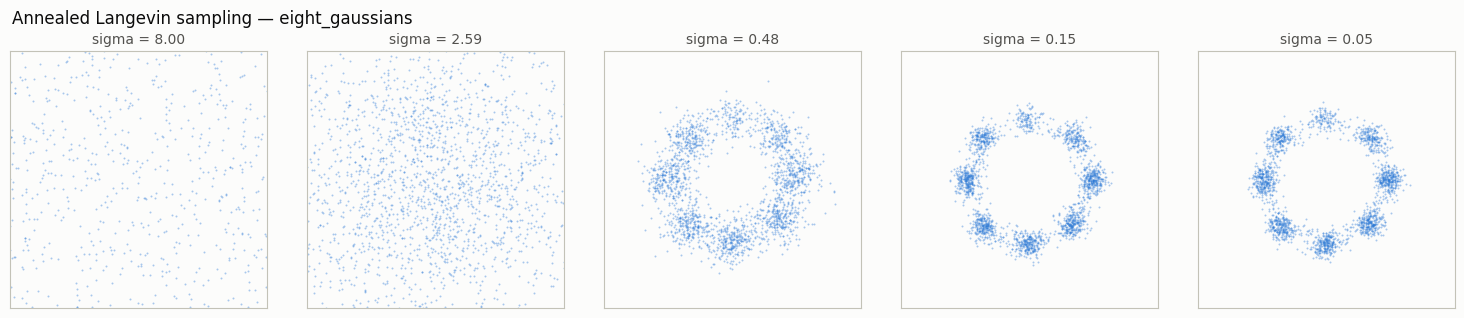

Annealing in action. The same 2 000 particles photographed at five rungs of the ladder: a diffuse cloud contracts to a ring, then condenses into eight crisp modes. This is "coarse structure first, detail later" — the same schedule story as the image-space DDPM in the DDPM on MNIST project, drawn in 2D:

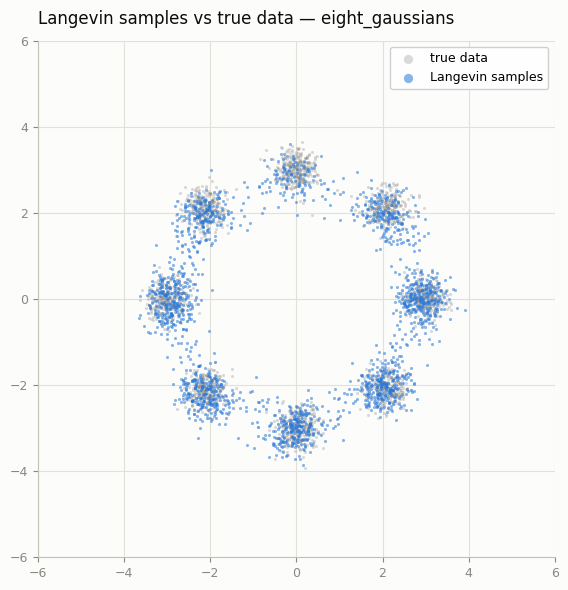

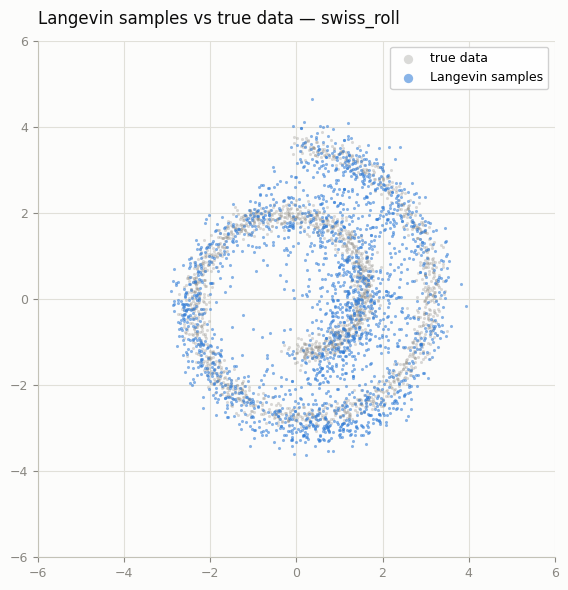

Final samples vs the truth. All eight modes are populated (no mode collapse — compare a GAN's habit on this dataset), and the spiral's arms are traced end to end. Samples sit slightly fatter than the data because the chain stops at sigma = 0.05: what you sample is the smoothed density p_0.05, not p_0. One extra denoising hop x + sigma^2 s(x, sigma) would sharpen it (that hop is called Tweedie's formula — remember it, EDM is built on it):

Things to try

• Drop the noise term from Langevin (keep only the score step). Every particle falls to a mode center — you sample the modes, not the distribution.
• Train with a single small sigma instead of the ladder, then sample from far-away noise. Watch the chain wander: the score field is unlearned out there.
• Increase the mode separation in toy_data.py. At some spacing Langevin stops crossing between modes at low sigma — the annealing ladder is the only thing saving ergodicity.
