Higher-Order Sampler

ELI5 (Explain Like I'm 5)

• The Big Idea: When generating an image, the model is solving a math puzzle: drawing a smooth curve from random noise to a clean image. A simple solver (Euler) assumes the curve is made of straight lines, so it makes errors and drifts off-course unless it takes hundreds of tiny steps. Higher-order samplers (like Heun or DPM-Solver++) look ahead and average their steps, allowing them to bend their path smoothly and reach the target in very few steps.
• Analogy: Imagine driving a car around a sharp curve. A simple driver (Euler) only looks at the road right in front of the hood, driving in a series of jerky straight lines and constantly oversteering. A professional driver (Heun) looks ahead at the curve, smoothly turning the wheel to match the bend, using far fewer adjustments to stay in the lane.
• Example: If a standard Euler sampler needs 100 steps to make a crisp image, the DPM-Solver++ sampler can make an equally crisp image in just 12 steps by calculating the mathematical curves of the noise flow.

Key Insight

A trained diffusion model defines a smooth ODE whose solution carries pure noise to a clean image, so sampling is just numerically solving that ODE — and how many steps you need depends entirely on how accurate your solver is. The simplest solver, the Euler method, takes a straight-line step using the slope where it currently sits and accumulates error fast, so it needs many steps. Higher-order solvers cut the error per step: Heun's method is a predict-then-correct step that averages the slope at the start and end of each interval, and DPM-Solver++ is a multistep method tailored to the exact mathematical shape of the diffusion ODE — so 10–20 steps match what Euler needs 100+ for. This project swaps the slow many-step sampler of an existing DDPM for these and measures the quality-versus-steps trade-off.

What's in this directory

File	Role
solvers.py	The DDPM-to-sigma-space bridge, the Karras step grid, and Euler/Heun integration with an honest NFE counter
compare_solvers.py	Same starting noise through every (solver, step count) pair; RMSE against a fine reference; the convergence-order plot

The model is an ordinary DDPM trained with the DDPM on MNIST project's script — nothing about training changes:

python ../24-ddpm-on-mnist/train.py --out checkpoints/mnist_ddpm.pt \
    --log outputs/train_log.csv                     # ~3 min on CPU
python compare_solvers.py                           # ~1 min

The bridge: a DDPM is secretly a sigma-space denoiser

The whole file solvers.py rests on one change of variables. Divide the DDPM state by sqrt(a_bar_t):

x_t = sqrt(a_bar_t) x0 + sqrt(1 - a_bar_t) eps
x_hat = x_t / sqrt(a_bar_t) = x0 + sigma eps,     sigma(t) = sqrt((1-a_bar_t)/a_bar_t)

In x_hat coordinates the model is exactly the VE-form denoiser that EDM and every modern solver paper work with, and the probability-flow ODE becomes almost comically simple:

dx_hat / dsigma = eps_hat(x_hat, sigma)

The predicted noise is the slope. DDPMDenoiser.eps handles the two-line coordinate conversion (scale the input by sqrt(a_bar_t), look up the nearest trained t for a requested sigma); the solvers never know a discrete-time DDPM is underneath.

Two solvers, one honest cost metric:

• Euler: x += (sigma_next - sigma) * eps_hat(x, sigma) — one model evaluation (NFE) per step, error per step O(h^2), total error O(h).
• Heun: take the Euler step, re-evaluate the slope at the landing point, redo the step with the average slope — two NFE per step, total error O(h^2). This is EDM's default sampler.

Comparing at equal steps flatters Heun (it does twice the work), so every plot and table here uses NFE — network evaluations — as the x-axis. Steps are placed on the Karras grid (rho = 7, dense at low sigma) rather than uniformly; that grid choice matters as much as the solver order at very low step counts.

Results

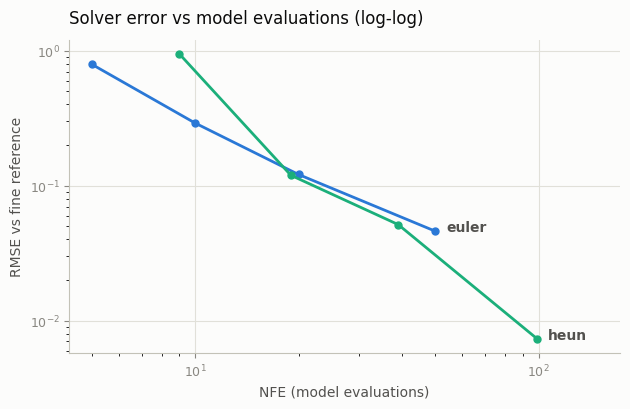

Convergence order, measured. Same starting noise, RMSE of each endpoint against a 200-step Heun reference, log-log. In the recorded run Euler's slope is ~1.1 (textbook order 1); Heun's is ~1.7, pulling one decade ahead by 100 NFE (RMSE 0.0073 vs Euler-50's 0.0460). Two honest wrinkles the clean theory hides, both visible in the plot:

• At very low NFE the corrector can hurt. Heun-5 (9 NFE) is worse than Euler-5 — its second slope is evaluated at the Euler proposal, and when the step is enormous that proposal lands somewhere so wrong the "correction" corrupts more than it fixes.
• The crossover sits near 20–40 NFE here, not at 10. Order-2 behavior needs the slope field itself to be smooth, and a 3-minute model's eps field is noisy. On a fully-trained model the crossover moves left — which is why EDM ships Heun at 18–35 NFE.

One more measured detail worth internalizing: an early version of this project snapped each requested sigma to the nearest trained timestep, which makes the slope field piecewise-constant — and silently capped Heun at Euler-like accuracy. The fix (DDPMDenoiser.t_of_sigma) interpolates a fractional t and feeds it to the U-Net's continuous sinusoidal embedding. Solver order is a property of the whole pipeline; any staircase in it becomes the bottleneck.

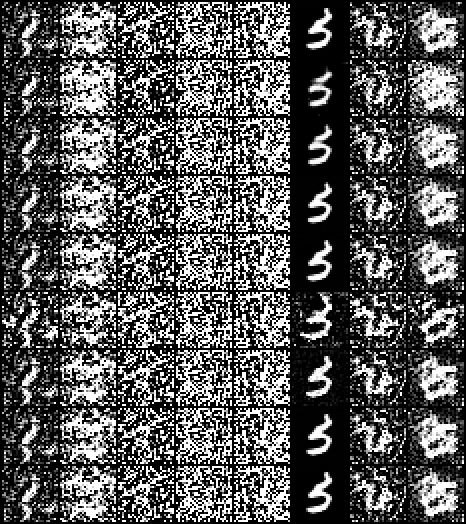

What the numbers look like as images. Rows top to bottom: the fine reference, Euler at 5/10/20/50 steps, Heun at 5/10/20/50 steps — same starting noise everywhere (outputs/solver_errors.csv has the exact RMSE values). Every column keeps its identity across rows — all rows trace the same ODE trajectory, just at different accuracy — and the RMSE ranking is directly visible as stroke cleanliness:

Where DPM-Solver++ fits

Heun buys its second order by paying a second NFE inside each step. DPM-Solver++(2M) gets comparable accuracy at one NFE per step by being multistep: it reuses the slope from the previous step instead of re-evaluating, and it integrates the semi-linear structure of the diffusion ODE exactly (only the neural part is approximated). That is the entire practical pitch of the DPM-Solver family, and why it became the default in production UIs. It drops into solvers.py as a third ~15-line function with a memory of one previous slope — a good exercise on this codebase.

Things to try

• Replace the Karras grid with uniform-in-sigma steps and rerun. At low NFE the grid choice can cost more than the solver order.
• Push Heun to 2–3 steps. Second order does not save you when the step is enormous — watch where the breakdown happens.
• Wire these solvers to the EDM reparameterization project's natively-EDM model (no bridge needed) and verify the picture is unchanged: the solver math never cared how the denoiser was trained.
