EDM Reparameterization

ELI5 (Explain Like I'm 5)

• The Big Idea: Standard diffusion models use complicated math schedules indexed by steps from 1 to 1000, which makes them hard to tune. The EDM (Elucidated Diffusion Models) recipe simplifies this. It measures noise by its actual standard deviation (called $\sigma$, which you can think of as the "fuzziness level") and rescales the inputs and outputs at every level so the network always sees numbers of the same scale.
• Analogy: Imagine trying to weigh objects ranging from feathers to elephants on a single scale. It's very hard. EDM is like a smart scale that automatically adds or removes counterweights (preconditioning) so it is always measuring a weight that fits comfortably on its display, making it much more accurate.
• Example: Instead of having to tune learning rates and noise schedules for weeks, EDM's preconditioning keeps the training stable and lets you generate high-quality images using standard settings without any exploding gradients.

Key Insight

EDM (Karras et al. 2022) doesn't change what a diffusion model is — it changes the bookkeeping so training and sampling stop fighting you. Instead of indexing noise by a discrete timestep t, it uses the noise standard deviation σ directly (the σ-schedule), and it adds preconditioning: the network's input, output, and per-σ loss weight are each rescaled so the network always sees roughly unit-variance signals no matter how much noise is present. Without this, the network wastes capacity learning to rescale wildly different magnitudes across noise levels; with it, the hyperparameter surface becomes flat and forgiving, so good results stop depending on lucky tuning. This project re-derives your CIFAR-10 model in σ-space and lets you observe the cleaner training and sampling behavior firsthand.

What's in this directory

File	Role
edm.py	The four preconditioning coefficients, the log-normal training loss, the Karras sigma schedule, and the Heun sampler — EDM's whole Table 1 in ~90 lines
train_edm.py	Training on MNIST (the recorded demo; the guide's CIFAR-10 target is the same code with the DDPM on CIFAR-10 project's loader)
sample_and_plots.py	18-step Heun samples and the diagnostic figures

python train_edm.py                # ~3 min on CPU
python sample_and_plots.py

The reparameterization, piece by piece

No more timesteps. Training draws a noise level directly: sigma ~ exp(N(-1.2, 1.2^2)) — most of the effort goes to the mid-range sigmas where denoising is genuinely hard, little to the trivial extremes. Compare the DDPM's uniform-over-t sampling, which (through the schedule) commits you to a fixed, hand-designed distribution over noise levels. Here that distribution is just… a parameter you can see.

Preconditioning. The denoiser the outside world calls is

D(x, sigma) = c_skip * x + c_out * F( c_in * x, c_noise )

c_in    = 1 / sqrt(sigma^2 + sigma_data^2)        input has unit variance
c_skip  = sigma_data^2 / (sigma^2 + sigma_data^2)  how much to trust x as-is
c_out   = sigma * sigma_data / sqrt(sigma^2 + sigma_data^2)   target has unit variance
c_noise = log(sigma) / 4                           well-scaled conditioning

F is the DDPM on MNIST project's U-Net, byte-for-byte — its sinusoidal "time" embedding happily accepts the continuous c_noise. The two limits explain why this works: at tiny sigma, c_skip -> 1 and F only predicts a small residual correction; at huge sigma, c_skip -> 0 and F predicts the image from scratch (its input c_in * x is then just unit-variance noise). The network never spends capacity learning to rescale its own inputs and outputs across four orders of magnitude of sigma — the wrapper does it in closed form. Note this smoothly interpolates between "predict x0" and "predict eps": the eternal DDPM question of which target to regress dissolves.

The weighted loss.

sigma ~ LogNormal;  loss = lambda(sigma) * || D(x0 + sigma*n, sigma) - x0 ||^2
lambda(sigma) = (sigma^2 + sigma_data^2) / (sigma * sigma_data)^2

lambda is exactly 1 / c_out^2 — it converts every sigma's error into the same "units of F's output," so no noise level dominates the gradient.

Sampling uses the Karras sigma grid (rho = 7) and Heun — the same solver machinery as the Higher-order sampler project, but with no DDPM-to-sigma bridge needed: the model is native to sigma-space.

Results

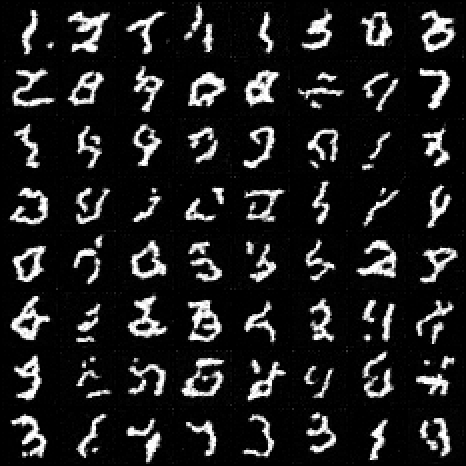

Samples with 18 Heun steps (35 model evaluations — compare the 300-step ancestral loop the DDPM projects used). Same U-Net, same data, same 3-minute CPU budget as the DDPM on MNIST project; the sampler is 8x cheaper and the digits are comparable:

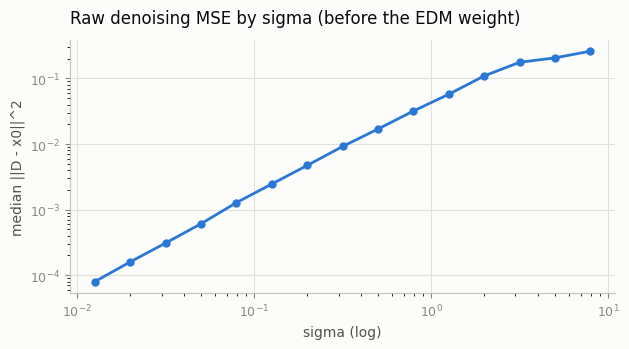

Raw denoising error by sigma — the quantity lambda is designed to balance. The recorded run's raw MSE spans four orders of magnitude: near zero at tiny sigma (where c_skip ~ 1 lets D return the input) and rising to a plateau at the data variance for large sigma (where the best possible D is the dataset mean). Multiply by lambda = 1/c_out^2 and every level contributes O(1) to the gradient — check it against the two limits of c_out yourself. That balance is the "cleaner hyperparameter surface" the Key Insight promises: no schedule tuning can silently starve a noise band of training signal:

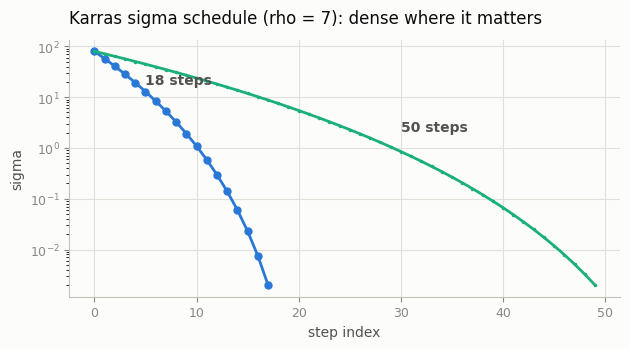

The Karras schedule — step positions in sigma, log scale. Dense where images sharpen (low sigma), sparse where one step of a nearly-linear ODE covers a lot of ground (high sigma):

Why this is "the cleanest formulation"

Restated in EDM language, the earlier projects collapse into special cases: the DDPM on MNIST project's DDPM is this model with a particular (worse) weighting and a particular discrete sigma grid; the Cosine vs linear schedule project's schedule debate becomes a choice of sampling grid, decoupled from training; the Higher-order sampler project's solver bridge becomes unnecessary. That collapse — many historical knobs becoming one legible parameterization — is the actual content of the EDM paper, and why the guide says to read it multiple times.

Things to try

• Retrain with lambda = 1 (delete the weight). Watch mid-sigma quality degrade while the loss number looks better — the classic trap.
• Move the log-normal (p_mean = 0): more effort at high sigma, worse fine detail at equal steps.
• Sample with 5 Heun steps. EDM at 5 steps on MNIST is still legible — then read about consistency distillation, which chases 1.
