VP vs VE Comparison

ELI5 (Explain Like I'm 5)

• The Big Idea: When we add noise to an image, we have two classic choices: do we keep the overall brightness/volume constant (Variance-Preserving or VP), or do we let the noise explode to infinity (Variance-Exploding or VE)? VP (used in DDPM) shrinks the original image as it adds noise, while VE (used in early score matching) keeps the image size constant and just stacks noise on top.
• Analogy: Imagine painting over a drawing. VP is like watering down your paint so that no matter how many layers you add, the thickness of the paint on the canvas stays the same. VE is like squeezing thick paint directly from the tube onto the canvas, building a giant mountain of paint.
• Example: VP models work great for natural photos because the numbers stay bounded between -1 and 1. VE models are useful when you want to handle arbitrary noise scales without scaling the image down, though they require careful numerical handling so the numbers don't blow up.

Key Insight

VP and VE are the two classic ways to define the forward noising process of a diffusion model. Variance-Preserving (VP) — the family DDPM belongs to — shrinks the original signal as it adds noise so the total variance stays around 1 the whole way; Variance-Exploding (VE) — used by the original score-based papers — leaves the signal untouched and just piles on ever-larger noise, so the variance grows without bound. The two are mathematically interconvertible and reach similar FID, but they differ in numerical conditioning and in which samplers behave well, which is exactly what makes the comparison instructive. This project trains the same model under both SDE families and compares quality, training stability, and sampler behavior side by side.

What's in this directory

File	Role
sde.py	VP and VE behind one interface: perturb for training, ancestral_step for sampling. VP delegates to the DDPM on MNIST project's DDPM math (DDPM is discrete VP); VE is a geometric sigma ladder with the NCSN reverse step
train_sde.py	One training loop for both — run it twice, changing only --family
compare.py	Grids, loss curves, and Fréchet distance in MNIST-classifier feature space

python train_sde.py --family vp     # ~3 min on CPU
python train_sde.py --family ve     # same budget, same U-Net, same seed
python compare.py

The controlled-experiment discipline is the project: identical U-Net, optimizer, seed, batch size, step count, and eps-prediction objective. The only difference is the forward process the network must invert:

VP:  x_t = sqrt(a_bar_t) * x0 + sqrt(1 - a_bar_t) * eps     variance stays ~1
VE:  x_t = x0 + sigma_t * eps,   sigma: 0.01 -> 30           variance explodes

What the comparison shows

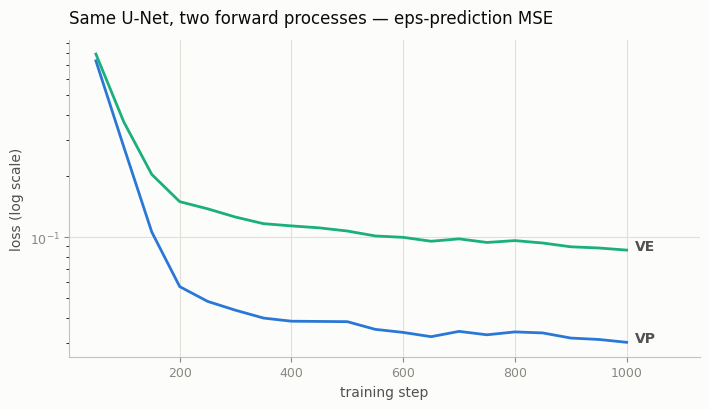

Training stability. Same objective, wildly different loss surfaces. The VE loss sits well above VP's and stays noisier throughout. The reason is input conditioning: the VP network always sees inputs of variance ~1, while the VE network must handle raw magnitudes from 0.01 to 30 across ladder rungs — precisely the burden EDM's c_in preconditioning (the EDM reparameterization project) was invented to remove. At this budget, VE's eps-prediction at large sigma is the hardest regression in either family:

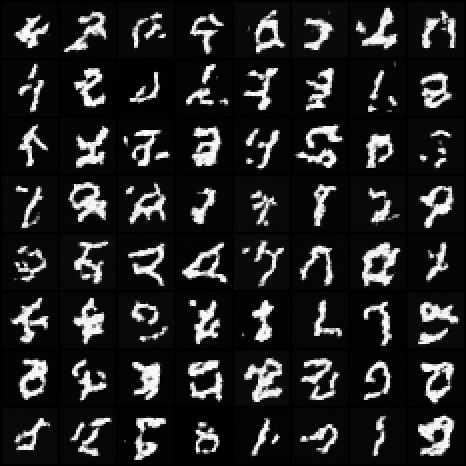

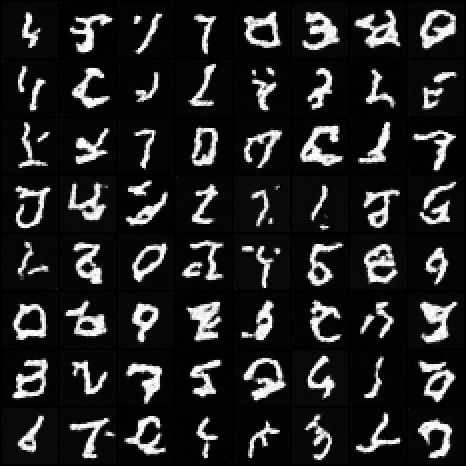

Sample quality at equal budget. VP produces the cleaner digits; VE's are visibly rougher. In feature-space Fréchet distance (same protocol as the Cosine vs linear schedule project), the recorded run gives:

family	Fréchet distance (lower is better)
VP	41.4
VE	56.6

A satisfying cross-check: VP's 41.4 is essentially identical to project 24's DDPM score under the same metric — as it must be, since discrete VP is DDPM. The VP-over-VE ranking at small scale without preconditioning is the expected result, and the literature's fix list is exactly the modern stack: input scaling (EDM), score-space parameterization, better samplers:

Sampler behavior. The two families need different reverse steps, and sde.py shows how little they share. VP's ancestral step divides by sqrt(alpha_t) — it must undo the signal shrinkage at every step. VE's step never rescales the signal at all; it only subtracts noise:

VE reverse:  mean = x + (sigma_t^2 - sigma_prev^2) * score

Both use the clamped implied-x0 safeguard from the DDPM on MNIST project — VE needs it even more, because at sigma = 30 a small relative error in eps is an absolute error of magnitude ~30 in the implied clean image.

Prior samples differ too: VP sampling starts from N(0, I); VE must start from N(0, sigma_max^2 I) — forget that and the sampler receives inputs from a distribution it has never seen.

The punchline

Neither family is "wrong" — Song et al. proved both are discretizations of SDEs whose reverse processes the same score fully determines, and project 33's sigma-space view contains them both (VE is EDM with no input scaling; VP is a particular time-dependent rescaling of it). What this experiment adds is the practical asymmetry: at small scale, plain eps-prediction under VE is numerically brutal, and every trick that later fixed it (preconditioning, sigma-aware weighting, Karras grids) is something you have already built in this phase.

Things to try

• Drop VE's sigma_max from 30 to 5: training stabilizes noticeably — and coverage of large-scale structure degrades. That tension is why NCSN needed big sigmas, and why preconditioning mattered so much.
• Wrap the VE model in the EDM reparameterization project's c_in-style input scaling (divide the network input by sqrt(sigma^2 + sigma_data^2), retrain) and watch the gap to VP close — the cleanest demonstration that the gap was conditioning, not the SDE family itself.
• Sample the VP model with the VE reverse step via the sigma bridge from the Higher-order sampler project — interconvertibility, verified in code.
