Implement DiT-S/2

ELI5 (Explain Like I'm 5)

• The Big Idea: For years, diffusion models used a network structure called a U-Net (which uses convolutions) to process images. A Diffusion Transformer (DiT) swaps this out for a Transformer (the same architecture behind ChatGPT). It breaks the image into a grid of tiny square patches (tokens) and lets them talk to each other to predict the noise.
• Analogy: Imagine a team of workers describing a crime scene. A U-Net is like workers who can only talk to their immediate neighbors to build a picture. A Transformer is like putting all the workers in a chatroom where anyone can talk to anyone else directly, making it much easier to coordinate the global layout.
• Example: A small DiT-S/2 divides a 32x32 image into 2x2 patches (giving 256 tokens) and processes them through 12 attention blocks, learning to generate class-conditional CIFAR-10 images with highly predictable quality improvements as compute scales up.

Key Insight

This project replaces the U-Net at the heart of a diffusion model with a Diffusion Transformer (DiT): you cut the noisy latent into 2×2 patches (that is the "/2"), feed the resulting sequence of tokens through 12 transformer blocks of width 384 (the "S", for small), and predict the added noise just as before. The conditioning — the timestep plus the class label — enters through AdaLN-Zero, which predicts per-channel shift/scale/gate values that start at zero, so each block begins as a do-nothing identity and only gradually learns to modulate the activations. Training it class-conditionally on CIFAR-10 and comparing FID against your earlier U-Net baseline reveals the transformer's real selling point: it is not magically better at this small scale, but it scales far more predictably as you add parameters and compute.

What's in this directory

File	Role
dit.py	The full architecture: patchify, AdaLN-Zero blocks, hand-rolled attention, final modulated projection, unpatchify
train_dit.py	Class-conditional training — the DDPM on MNIST project's diffusion math, unchanged
sample_dit.py	Per-class sample grid

The recorded demo is a DiT-mini: 6 blocks, dim 128, patch 4 on 28×28 MNIST pixels (~1.9M params, 49 tokens), against the reference DiT-S/2's 12 blocks of dim 384 on 32×32×4 latents. Same architecture, same code paths — only the constructor numbers differ (DIT_MINI in dit.py), and the class-conditional CIFAR target from the guide is this plus the DDPM on CIFAR-10 project's loader and the Train a VAE for diffusion project's VAE.

python train_dit.py            # ~9 min on a multicore CPU (see below for why)
python sample_dit.py

The architecture, piece by piece

Patchify — a strided conv turns (1, 28, 28) into 49 tokens of dim 128, plus a learned position vector per token (the 2D RoPE for DiT project replaces exactly this piece). From here on, the image is a sequence; nothing downstream knows or cares that tokens have 2D structure.

AdaLN-Zero blocks — a standard pre-norm transformer block whose two LayerNorms have no learned affine parameters of their own; instead the conditioning vector (timestep embedding + class embedding) predicts six values per block: (shift, scale, gate) for the attention branch and again for the MLP branch. The gates are zero-initialized, so at step 0 every block is the identity function and the whole network outputs zero — the same "start from nothing" trick as the U-Net's zero-initialized output conv (the DDPM on MNIST project), applied at every block. This is the entire conditioning mechanism: no cross-attention, no concatenation; the label reaches every block through 6 x dim numbers.

Attention is written out by hand (qkv linear + scaled_dot_product_attention) rather than using nn.MultiheadAttention — deliberate, because the 2D RoPE for DiT project needs to rotate q and k before the dot product (RoPE) and the MMDiT block project needs to concatenate two token streams, and neither is possible through the closed module.

Unpatchify — the final layer applies one more AdaLN modulation, then a zero-initialized linear maps each token back to its patch x patch pixels.

What did NOT change from phase 5: GaussianDiffusion, the loss, the sampler, EMA — the training script imports them from the DDPM on MNIST project untouched. Diffusion is indifferent to what predicts the noise; "DiT" is one changed constructor call.

Results

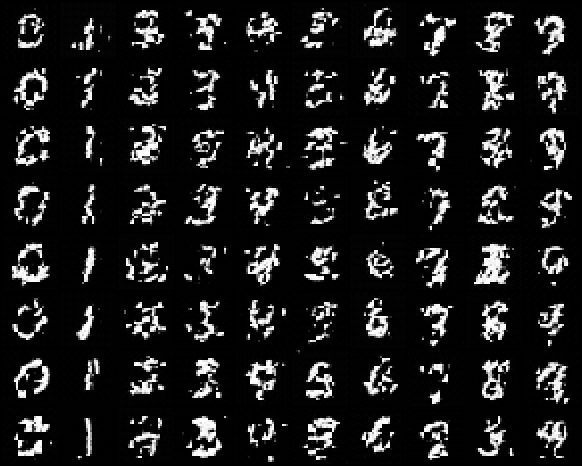

Per-class grid (columns = requested digits 0–9), full 300-step sampling from the EMA weights after 3 500 steps:

The honest small-scale finding. Our first run used the U-Net's budget (1 500 steps, lr 3e-4) and produced fragmented, patch-boundary-artifacted samples with no visible class control — at a training loss comparable to the U-Net's (the eps loss is dominated by high-noise timesteps and barely sees the low-noise regime where patch seams live; never judge a diffusion model by its loss alone). The recorded run above uses 3 500 steps and a hotter transformer-appropriate lr (1e-3, which we measured to double effective training speed): class control is now unmistakable column by column, but strokes remain rougher than the U-Net's at similar wall-clock. That remaining gap is the guide's "U-Net is faster per FLOP at small scales" — convolution's locality and translation equivariance are hard-coded priors the transformer must instead learn from data, and at 1.9M params on 60k images that purchase is still in progress. The Compare DiT and U-Net scaling project turns this observation into a measured curve, and the DiT paper's answer to it is simply: keep scaling — the transformer's ceiling is higher even though its floor is slower to leave.

Things to try

• Set patch=2 (196 tokens): finer detail, ~2.5x the cost per step — the patch-size/compute trade every DiT paper negotiates.
• Zero out the label embedding at sampling time: AdaLN conditioning degrades gracefully into an unconditional model.
• Delete the nn.init.zeros_ lines in the block and retrain: watch early training destabilize — "Zero" is not decoration.
