Compare DiT and U-Net Scaling
ELI5 (Explain Like I'm 5)
- The Big Idea: This project compares the scaling behavior of U-Nets and Diffusion Transformers (DiT). By training different sizes of DiTs (Small, Base, Large) and comparing them to U-Nets on the same dataset, we can plot how quality improves as we spend more computing power.
- Analogy: A U-Net is like a highly customized steam engine—efficient at small sizes, but hard to make go faster. A Transformer is like a jet engine—it might be heavy and slow to start, but as you scale it up, it scales incredibly well and leaves the steam engine far behind.
- Example: If you train a small U-Net and a small DiT, the U-Net might win. But if you increase the budget by 10x, the DiT's performance improves dramatically, whereas the U-Net's performance starts to plateau, showing why Transformers are the choice for large-scale models.
Key Insight
The reason the field switched from U-Nets to Diffusion Transformers (DiT) is not that a small DiT beats a small U-Net — often it does not — but that DiT obeys cleaner scaling laws: as you grow the model and the compute you spend on it, quality improves along a smoother, steeper line. Training DiT-S, DiT-B, and DiT-L on the same data and plotting FID against FLOPs makes that slope visible — the DiT curve keeps dropping where the U-Net flattens out. This is the same lesson that played out in language modeling: predictable scaling beats clever architecture once you can afford to scale.
What's in this directory
| File | Role |
|---|---|
scaling_study.py | Trains three U-Net sizes and three DiT sizes under one fixed protocol and plots quality against measured training compute |
python scaling_study.py # six models, ~10 min total on CPU
The protocol (which is the actual lesson)
Six unconditional models — U-Nets at base width 8/16/32, DiTs at dim 64/128/192 — trained with identical data, optimizer, batch size, and a fixed 600-step budget. Per model, two numbers:
- Compute axis: measured training wall-clock. Honest at this scale (parameter counts flatter the DiT, whose attention costs more per parameter; FLOPs estimates hide constant factors that wall-clock does not).
- Quality axis: Fréchet distance in MNIST-classifier feature space (the Cosine vs linear schedule project's metric) over 256 samples drawn with 50-step DDIM — the budget FID protocol scaled to a CPU. All six models are scored by the same frozen feature net against the same 2 048 real digits, so the ranking is meaningful even though the absolute numbers are not publishable FIDs.
Everything is deliberately reused: UNet from the DDPM on MNIST project, DiT from
the Implement DiT-S/2 project, DDIMSampler from the DDIM sampler project, the metric from the DDPM on CIFAR-10 and Cosine vs linear schedule projects.
A scaling study is a harness around pieces you already trust.

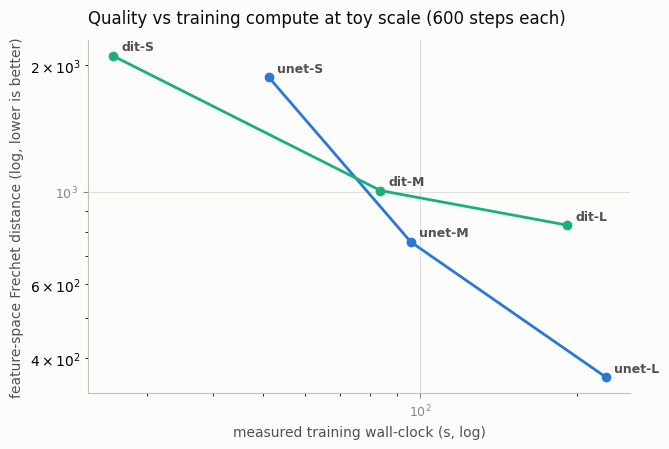

Results
The recorded run (outputs/results.csv) shows the guide's claim, measured:
at this scale the U-Net curve sits below the DiT curve at every matched
compute level — convolution's built-in locality and translation
equivariance are priors the transformer must buy back with data and steps
it hasn't been given. The interesting structure is in the slopes: quality
improves as each family grows, and nothing here contradicts the crossover
story — it just locates it above toy scale. What the DiT paper showed
(and why everyone switched) is that as compute keeps growing, the DiT line
keeps its slope while the U-Net's bends flat; the frontier lives far up and
to the right of this plot.
Read this figure alongside the Implement DiT-S/2 project's convergence finding (the mini-DiT needed ~2.3x the U-Net's steps for comparable samples) — same effect, two views.
Honest caveats worth internalizing, because they apply to every scaling plot you will ever read: three points per family is a trend, not a law; one seed per point; a fixed step budget favors fast-converging architectures; and a feature-space FD on 256 samples carries sampling noise. The published DiT scaling curves differ from this one mainly in having none of those excuses — that is what made them convincing.
Things to try
- Give every model a fixed wall-clock budget instead of fixed steps (the fairer fight for slow-per-step architectures) and re-plot.
- Add DiT with patch 2 as a seventh point: more compute per parameter, usually better quality per parameter — patch size moves you along the curve, not off it.
- Re-run with 3 seeds per point and add error bars; watch which apparent gaps survive.
