2D RoPE for DiT

ELI5 (Explain Like I'm 5)

• The Big Idea: Since a transformer treats the image patches like an unordered bag of tokens, it doesn't know which patch is in the top-left or bottom-right. 2D RoPE (Rotary Position Embeddings) fixes this by rotating the math vectors of each patch based on its row and column coordinates, allowing the model to understand the exact 2D distance between any two patches.
• Analogy: Imagine trying to assemble a puzzle where all the pieces are blank on the back. Learned positions are like writing a specific seat number on each piece—but if the table gets bigger, you run out of numbers. 2D RoPE is like drawing grid lines on the table using angles; no matter how big the table gets, you can always calculate the exact angle and position of any piece.
• Example: A model trained on 256x256 images can generate 512x512 images without getting distorted or repeating the subject, because the 2D RoPE math naturally scales to larger coordinates.

Key Insight

A transformer has no built-in sense of position — to it, a sequence of image patches is just an unordered bag — so you must tell it where each patch sits. 2D RoPE (rotary position embedding) does this by rotating each token's query and key vectors by an angle set from its row and column, so the attention dot product between two patches depends only on their relative spacing rather than their absolute coordinates. Swapping a DiT's learned position vectors for 2D RoPE usually improves quality — especially when generating at resolutions larger than the model was trained on, because rotations extrapolate to unseen positions far more gracefully than a fixed lookup table of learned vectors.

To unpack that last point: learned position vectors are a lookup table — during training the model memorizes one vector for position 0, one for position 1, and so on, up to the largest grid it ever saw (say 32×32 patches). Ask it to place patch number 40 and there is simply no row in the table for it — the model never learned one, so it improvises badly and the extra-large image comes out distorted. It is like a printed seating chart that lists seats 1–32: show up holding ticket 40 and the chart is blank, leaving you to guess where to stand. RoPE has no table at all. It turns a position into an angle with a fixed formula — position 1 rotates a little, position 2 a little more — so any position, even one never seen in training, just gets a slightly larger rotation and the math keeps working smoothly. That is the difference between a memorized chart and a rule like "each seat is half a metre further along the wall": the rule still tells you exactly where seat 40 — or seat 400 — sits, because it computes the answer instead of looking it up.

What's in this directory

File	Role
rope2d.py	Axial 2D rotary embeddings: half of each head's channels rotate with the row index, half with the column index
compare_positions.py	Trains two otherwise-identical DiTs (learned table vs RoPE), compares loss and samples, then runs the resolution-extrapolation test

python compare_positions.py       # trains both models, ~9 min total on CPU

This is why the Implement DiT-S/2 project wrote its attention by hand: RoPE must rotate q and k before their dot product, a spot nn.MultiheadAttention does not expose. The injection point is one optional callable on the Attention module; dit.py is otherwise untouched.

Implementation notes

• Axial split. For a head dimension of 32, channels are processed in rotation pairs: the first 8 pairs rotate by row * freq_i, the last 8 by col * freq_i, with the same geometric frequency ladder as 1D RoPE. Row offsets and column offsets are therefore encoded in disjoint channels and cannot interfere.
• Relative by construction. A rotation by theta_i on queries and theta_j on keys contributes cos/sin of (theta_i - theta_j) to their dot product — only the offset survives. No parameters are learned; the RoPE model has strictly fewer parameters than the learned-table model.
• Any grid, same table. The angle table is precomputed for a 16×16 grid once; training crops the 7×7 corner, and the extrapolation test crops 9×9 — the same rule evaluated at more positions.

Results

Both variants train at a deliberately short budget (1 200 steps — see the Implement DiT-S/2 project on mini-DiT convergence), so absolute sample quality is rough; everything below is about the relative comparison, which is what the controlled experiment isolates.

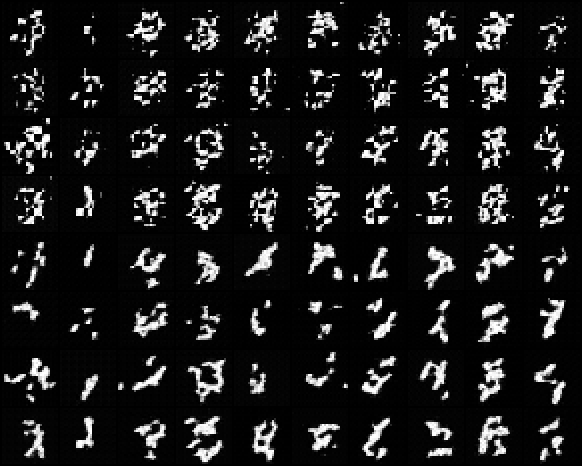

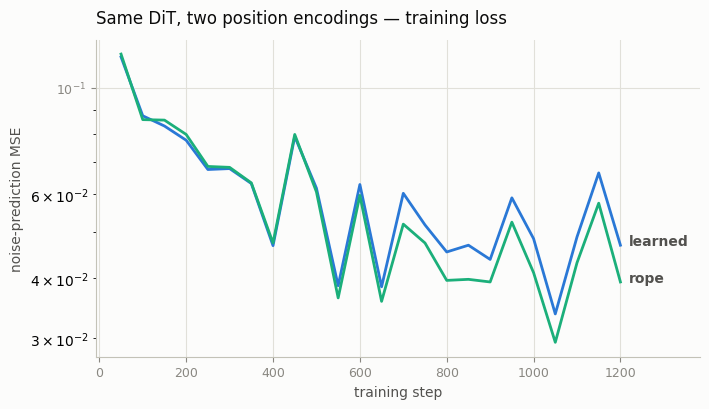

In-distribution: a small but real RoPE edge. The loss curves overlap for the first half of training, after which the RoPE curve sits consistently a few percent below. The sample grids (outputs/samples28.png, learned in the top four rows, RoPE below) agree — the RoPE model's strokes are visibly smoother and more connected at the same step count. The relative-position bias apparently helps even on a fixed 7×7 grid, which is the guide's "usually improves quality":

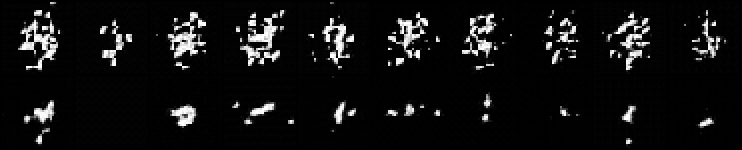

Out-of-distribution: the point. Both models are asked to sample at 36×36 — a 9×9 token grid neither ever saw. The learned model's table is bilinearly interpolated (the standard ViT trick — the best you can do with a chart that has no row for seat 40); RoPE simply rotates by the larger indices. Top row learned, bottom row RoPE:

Both degrade off-distribution (the denoiser also never saw 36×36 image statistics), but they degrade differently, and the difference is the lesson: the interpolated-table model scatters fragments across the whole canvas — positions between table rows all look alike to it, so structure loses its anchoring — while the RoPE model still produces one compact, coherently-placed object. At real scale this asymmetry compounds; it is why Flux and friends generate gracefully at aspect ratios and resolutions they never trained on, and why 2D RoPE is the modern default the guide says it is.

Things to try

• Push to 44×44 (an 11×11 grid). Interpolation stretches the same 7 rows ever thinner; rotation just keeps counting.
• Set the RoPE frequency base to 10 instead of 100: coarser angle resolution at long range — watch large-offset attention degrade.
• Give RoPE and the learned table to one model. At the trained size the table can only help; check whether it hurts extrapolation (it does — the model leans on the memorized part).
