Rectified Flow from Scratch

ELI5 (Explain Like I'm 5)

• The Big Idea: Traditional diffusion models add noise in a curved, complex way. Rectified Flow simplifies this by drawing a straight line directly from the clean image to the random noise. The model is trained to predict the "velocity" (the speed and direction) of this straight path, allowing us to generate images in very few steps by just walking along these straight arrows.
• Analogy: Imagine driving from your house to a shop. Standard diffusion is like navigating winding, twisty country roads with lots of turns (noise schedule). Rectified Flow is like building a straight highway directly from your driveway to the shop, so you can just point the steering wheel straight and drive.
• Example: Instead of needing a complicated noise schedule table with parameters to tune, Rectified Flow uses a simple formula x_t = (1-t)*x_0 + t*eps and converges faster, producing clean images in 20 steps.

Key Insight

Rectified flow is a kind of flow matching: instead of predicting the noise added at a discrete step the way DDPM does, you train the model to predict a velocity — the straight-line direction ε - x_0 that points from a half-noised image back toward clean data. Because the training paths are straight lines, sampling simply steps along the predicted arrows by solving an ODE (with Euler or Heun), and you reach good images in only 10–50 steps. Re-deriving your earlier diffusion model with this objective shows how little has to change — the same network, but a simpler loss with no noise schedule to tune — yet it trains cleanly and few-step sampling works out of the box.

What's in this directory

File	Role
rf.py	The whole method: interpolation, loss, Euler sampler — ~40 lines
train_rf_toy.py	2D toy training plus the trajectory and few-step figures
train_rf_mnist.py	The DDPM on MNIST project's U-Net retargeted from noise to velocity
sample_rf_mnist.py	Few-step Euler grids on MNIST

python train_rf_toy.py         # ~1 min on CPU
python train_rf_mnist.py       # ~3 min
python sample_rf_mnist.py

What is NOT in this directory

Compare rf.py against phase 5's diffusion.py and notice everything that vanished: no beta schedule, no alpha_bar table, no posterior variance, no discrete T, no q_sample-vs-p_sample asymmetry. The forward "process" is x_t = (1-t) x0 + t eps and its exact velocity is the constant eps - x0. The loss is one MSE. The sampler is Euler on dx/dt = v. This is why the field moved: the schedule zoo the earlier phases carefully tuned (the Cosine vs linear schedule, EDM reparameterization, and VP vs VE comparison projects) is replaced by a linear interpolation with nothing to tune. In sigma-language (the EDM reparameterization project), rectified flow is one more choice of interpolation path — but the cleanest-conditioned one, with unit-scale inputs and targets at every t for free.

The eps argument in rf_loss looks redundant today — by default noise is drawn randomly per batch. It is the single hook the Re-flow project needs: pass FIXED (sample, noise) couples instead and the same function performs reflow training.

Results — 2D toy (where you can see the mechanism)

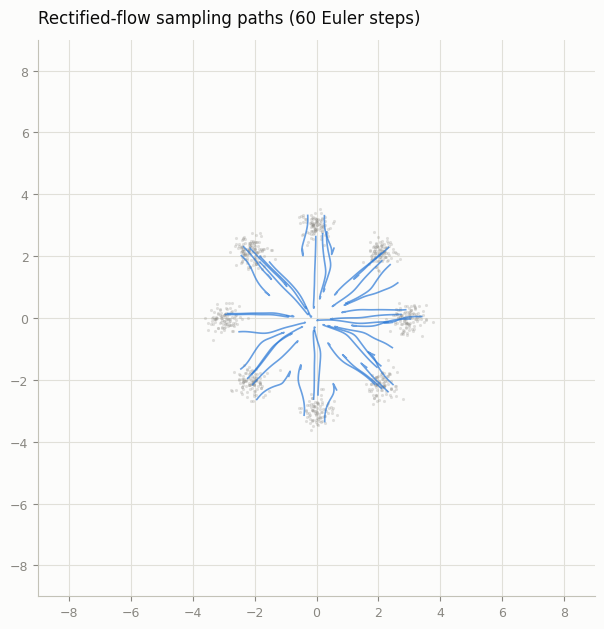

The trajectories. Sampling paths radiate from the prior toward the modes, mostly straight (measured chord/arc straightness 0.871 — compare the Probability flow ODE project's visibly curved diffusion ODE paths on this same dataset). Not perfectly straight: random pairing means paths would cross, and the marginal velocity field must bend near the center where crossings concentrate. That residual bend is exactly what the Re-flow project removes:

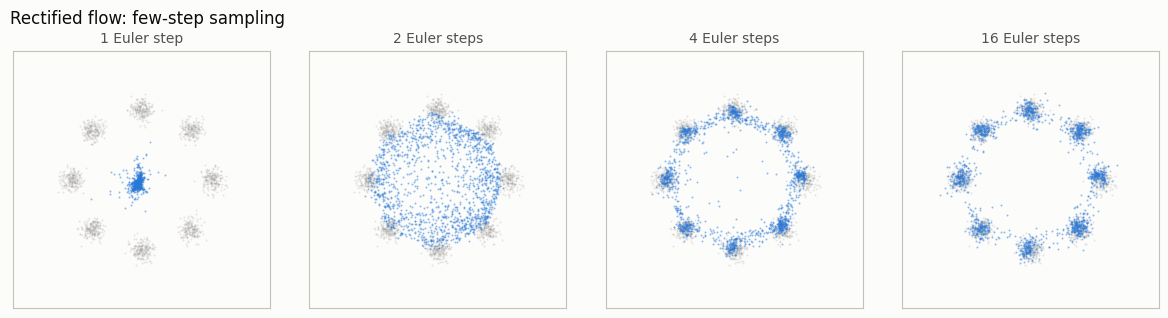

Few-step sampling. With mostly-straight paths, a handful of Euler steps lands close: 4 steps is already usable, 16 is clean. One step collapses to the paths' shared early direction — the bend near t = 1 is the whole error:

Results — MNIST (the same objective at image scale)

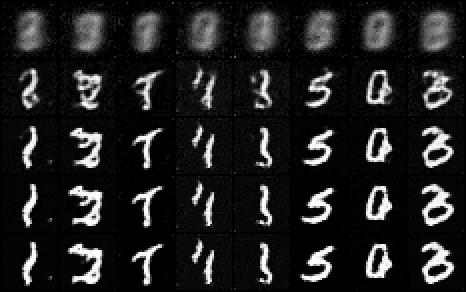

Rows top to bottom: 1, 2, 4, 8, 16 Euler steps, same starting noise. Two steps gives ghosted but recognizable digits; four is legible; sixteen is comparable to the 300-step DDPM loop of the DDPM on MNIST project — with the same U-Net, retrained for ~3 minutes on the velocity target:

The only change to the network is a wrapper scaling t in [0,1] into the sinusoidal embedding's comfortable range — VelocityUNet in train_rf_mnist.py is four lines.

Things to try

• Sample the MNIST model with Heun (the Higher-order sampler project's solver on dx/dt = v): at 4–8 steps the second-order correction still buys visible quality.
• Plot ||v_theta(x_t, t)|| along a sampling path: for straight paths it should be nearly constant in t — a cheap straightness diagnostic.
• Train with t ~ Beta(2, 2) instead of uniform (more mid-path samples, where the task is hardest) — the RF cousin of EDM's log-normal sigma sampling, and the kind of knob SD3's paper tunes.
