Re-flow
ELI5 (Explain Like I'm 5)
- The Big Idea: Even though Rectified Flow tries to draw straight paths, the trained model's paths still have minor curves and bends. "Re-flow" is a distillation technique where we use the trained model to generate clean images from noise, and then train a new model on these exact generated pairs. This straightens the paths even further.
- Analogy: Imagine hikers walking through a forest. The first group finds a winding trail through the trees. The second group (Re-flow) looks at where the first group went and builds a paved, perfectly straight road, bypassing all the bends.
- Example: A standard model needs 20 steps to generate a good image because it has to correct for slight curves in the path. A Re-flowed model can generate a high-quality image in just 1 or 2 steps because the path is a perfectly straight line from noise to image.
Key Insight
A freshly trained rectified flow model already follows fairly straight paths from noise to image, but they are not perfectly straight, so taking very few sampling steps still wobbles off course. "Re-flow" fixes this by using the trained model to generate many (noise, image) pairs, then training a second model to map each noise sample directly to its paired image along a straight line — literally teaching it the shortcut the first model discovered. After one or two rounds the trajectories become straight enough to sample in as few as one or two steps, which is the foundation of the fast distillation methods behind real-time image generators.
What's in this directory
| File | Role |
|---|---|
reflow.py | The whole procedure: generate couples from the Rectified flow from scratch project's model, retrain on them, measure straightness and 1-step quality before/after |
python reflow.py # ~2 min on CPU (needs the Rectified flow from scratch toy checkpoint)
Why random pairing bends paths — and fixing the pairing unbends them
The Rectified flow from scratch project trains on random (data, noise) pairs: every batch, each data point is matched with fresh noise. Individually each training pair defines a straight line, but lines from different pairs cross, and a velocity field is single-valued — at a crossing point it must output one vector, so the learned marginal field bends to average the traffic. That bend is the few-step error.
Re-flow's move is almost embarrassingly simple:
eps = torch.randn(n, 2)
x0, _ = euler_sample(model1, eps, steps=60) # let round-1 pick the pairing
model2 = train(pairs=(x0, eps)) # train on the FIXED couples
The couples produced by integrating the round-1 ODE have a special
property: ODE trajectories cannot cross (uniqueness of solutions), so the
new pairing is crossing-free — and the optimal velocity field for a
crossing-free coupling is genuinely straight lines. Note the code reuse:
train(pairs=...) is the Rectified flow from scratch project's training function; re-flow changed the
dataset, not the objective. Also note round 2 never sees real data — only
round-1 samples. Reflow is self-distillation, and any bias in round 1's
samples is inherited (why you stop after a round or two).
Results (recorded run, outputs/metrics.csv)
| straightness (1 = straight) | 1-step energy distance (lower = better) | |
|---|---|---|
| round 1 (random pairing) | 0.871 | 1.96 |
| round 2 (re-flowed) | 1.000 | 0.0105 |

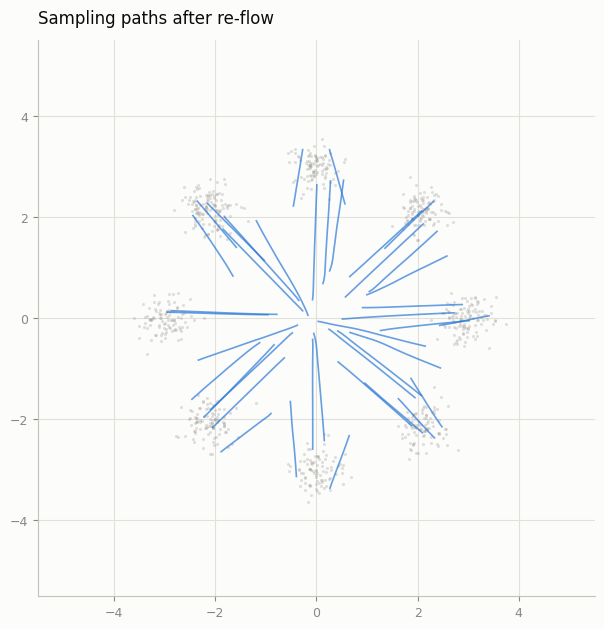

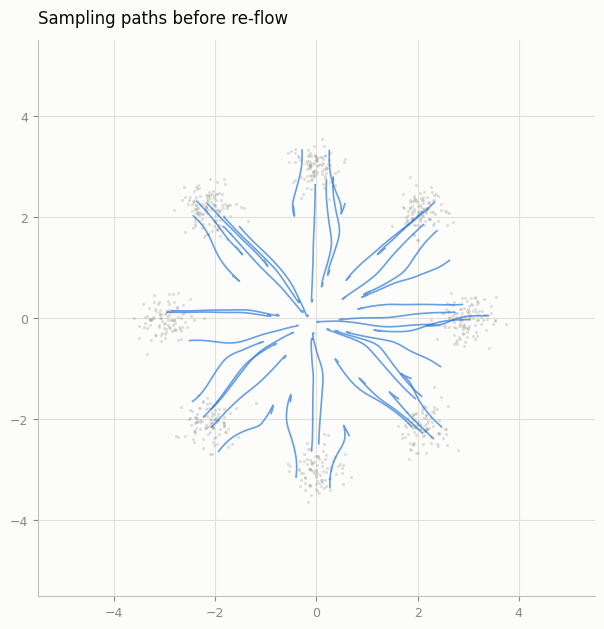

Paths, before and after. Same model class, same sampler — only the pairing changed. Before: gentle curves that bend near the center. After: line segments, drawn with a ruler:

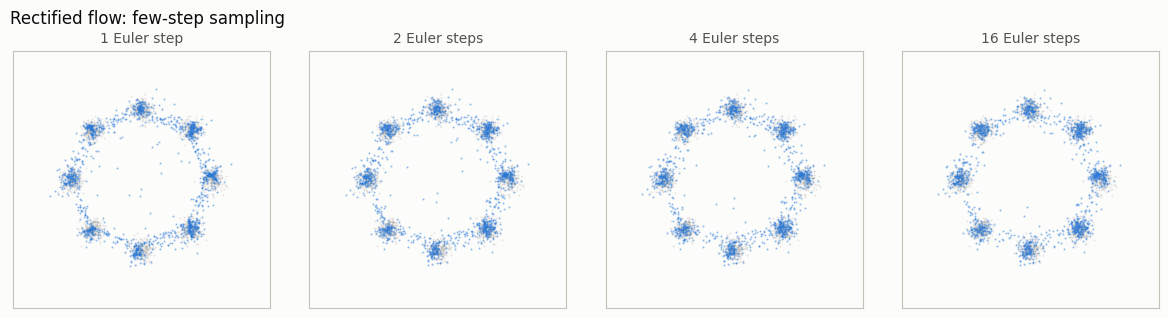

One step is now enough. After re-flow, a SINGLE Euler step from the prior lands on the eight modes — compare the Rectified flow from scratch project's 1-step panel, which collapsed to a blob. The 1-step energy distance improving by ~190x is that picture as a number:
This chain — flow matching → re-flow → 1-step generation — is the ancestry of the real-time generators of phase 10 (consistency distillation, project 60, is the same "teach the shortcut" idea with a different loss), and of the "Turbo" models used in phase 7's inference projects.
Things to try
- A third round: generate couples from model 2 and train model 3. Measure where the gains stop (and watch sample bias compound).
- Break it on purpose: generate the couples with only 3 Euler steps. Sloppy couples = sloppy shortcut — teacher quality bounds student quality.
- Re-flow the MNIST rectified flow from the Rectified flow from scratch project (same two lines with image tensors) and compare its 1-step row before and after.
