MMDiT Block

ELI5 (Explain Like I'm 5)

• The Big Idea: In standard diffusion models, text conditioning is one-way: the image looks at the text, but the text encoder is frozen and doesn't look at the image. MMDiT (Multi-Modal Diffusion Transformer) lets text and image tokens talk to each other in both directions within the same attention blocks, creating a joint understanding.
• Analogy: Imagine a writer and an illustrator working on a comic book. In cross-attention, the illustrator reads the writer's script but can't talk to them. In MMDiT, they sit at the same table and discuss the project together, resulting in a much better match between the words and the drawing.
• Example: If you prompt "a red book on a blue table," standard cross-attention might get confused and draw a blue book on a red table. MMDiT's joint attention keeps the colors tied to the correct objects, improving prompt adherence.

Key Insight

In a standard DiT, text guides the image through cross-attention — the image tokens look at the text tokens, but not the other way around. MMDiT (Multi-Modal Diffusion Transformer), the block behind Stable Diffusion 3 and Flux, instead concatenates text and image tokens and runs them through one shared self-attention ("joint attention"), while giving each modality its own normalization and MLP weights. Letting text and image attend to each other freely in both directions improves compositional prompts — getting "a red cube on a blue sphere" right instead of swapping the colors — which is why most strong 2024+ open models adopted it.

What's in this directory

File	Role
mmdit.py	The MMDiTBlock (two Streams, joint attention) and a mini model whose "caption" is two learned tokens per class
train_mmdit.py	Training with the rectified-flow objective (the SD3/Flux pairing), per-class sampling, and the joint-attention visualization

python train_mmdit.py            # ~8 min on a multicore CPU

The full-scale version conditions on a T5/CLIP-encoded caption over a captioned photo dataset; the mini version stands in a 2-token learned "caption" per digit class, which preserves everything architectural — two streams, joint attention, per-stream weights — at CPU cost. Note the deliberate pairing: this model trains with the Rectified flow from scratch project's flow-matching loss, because MMDiT + rectified flow is literally the SD3 recipe.

The block, and what makes it MMDiT

Look at MMDiTBlock.forward and find the three design decisions:

1. Each stream owns its parameters. Stream bundles a modality's AdaLN, qkv, output projection, and MLP. Text-token statistics and image-token statistics are too different to share weights — SD3 ablates this and shared weights lose.
2. The attention is joint. Queries, keys, and values from both streams are concatenated along the token axis and one softmax runs over everything. Every image patch can read every caption token AND vice versa — the caption tokens are updated by what the image looks like as generation proceeds, which is precisely what cross-attention (a one-way read of frozen text) cannot do.
3. After attention, the streams split back apart and each applies its own gate, residual, and MLP. The only place the modalities touch is the attention matrix.

Everything else — AdaLN-Zero modulation, zero-init gates, the final modulated projection — is the Implement DiT-S/2 project's DiT machinery, reused.

Results

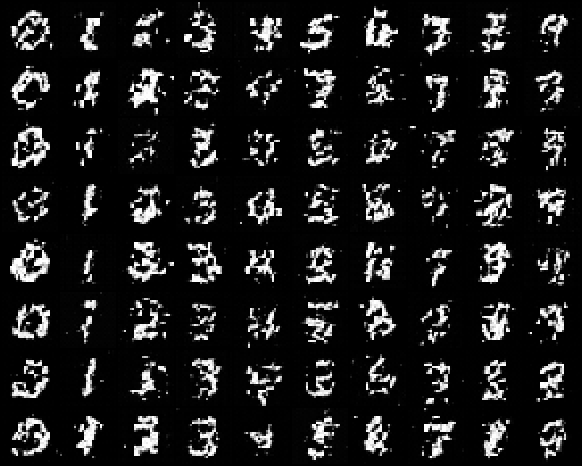

Per-class samples (16 Euler steps, one column per class token pair). Class identity flows through attention alone — unlike the Class-conditional DDPM and Implement DiT-S/2 projects, where the label enters through AdaLN, here AdaLN carries only the timestep and the label reaches the image exclusively via the caption tokens the image attends to:

Watching the joint attention. Top row: partially generated 3s. Bottom row: how much each image patch attends to the caption tokens (bright = more attention mass), at the last block, mid-generation. The attention concentrates where the digit's strokes are being decided — the patches that most need to know which digit they are drawing are the ones querying the caption hardest:

Things to try

• Ablate the joint attention into cross-attention: let image tokens attend to text keys/values but mask the text-query rows. Same parameters, one-way information flow — compare class control at equal steps.
• Share one Stream for both modalities and retrain: the SD3 ablation, reproduced in one line.
• Grow the caption to 4 tokens per class and check whether the extra capacity changes anything at this scale (the answer at SD3 scale is yes; seeing where it starts mattering is the experiment).
