Latent Traversal
ELI5 (Explain Like I'm 5)
- The Big Idea: After a VAE learns, its latent code is a row of dials. Nobody told the model what the dials should mean — but if you freeze all of them and slowly turn just one, the picture changes in a single, meaningful way: one dial slides the object left and right, another makes it bigger and smaller. The model discovered the hidden knobs the data varies along, all by itself.
- Analogy: Imagine finding a mixing board with unlabeled sliders. You push one and only the bass changes; another, only the treble. You just reverse- engineered what each slider controls by wiggling it. A latent traversal wiggles each of the VAE's sliders and watches what happens.
- Example: CelebA faces aren't downloadable in this offline setup, so we use simple shapes where we know the true knobs — a square's x-position, y-position, and size. After training, one latent dial turns out to control x-position (correlation 0.88 with the true value), another size (0.60) — the model recovered the real factors without ever being told they exist.
Key Insight
Once a VAE is trained on a dataset of faces like CelebA, its latent space is not just random storage — individual directions in it often line up with human-meaningful features. A traversal means freezing every latent number except one, then slowly turning that single dial up and down and decoding at each step to watch the face change. Do this across many dimensions and you discover that one controls hair color, another a smile, another the lighting direction — without anyone ever labeling those concepts during training. This is the clearest hands-on proof that a good generative model does not memorize images; it discovers the hidden knobs that the data varies along.
What's in this directory
| File | Role |
|---|---|
traversal.py | Generates a synthetic sprites dataset with known factors, trains a β-VAE, sweeps each latent dial, and measures which dial aligns with which true factor |
Reuses vae_lib.py from project 06.
python traversal.py # ~4 min on CPU, synthetic data (no download)
A deliberate substitution (and why it's better here)
CelebA (~1.4 GB, Google-Drive-gated) isn't reachable in this offline CPU environment, and a face VAE good enough to show clean hair/smile dials needs far more than a 10-minute CPU budget. So we use a synthetic sprites dataset in the spirit of dSprites: a white square whose x-position, y-position, and size are the known generative factors. Known factors turn the usual hand-wavy traversal ("that one kind of looks like hair") into a measurement: we can correlate each latent dial against each true factor and check the model actually found them. Everything transfers to faces — only the factors change names.
Results

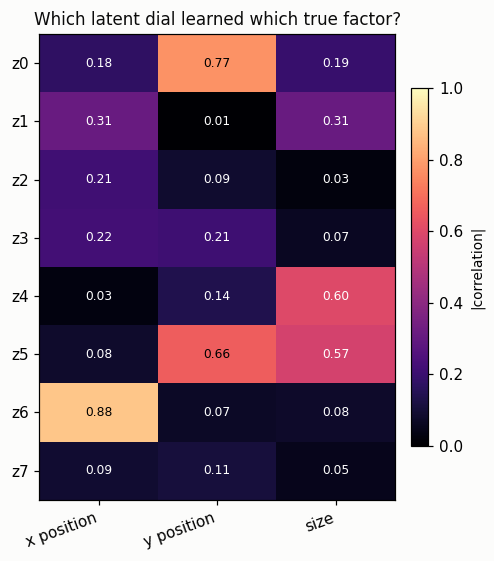

Which dial learned which factor? We encode 2,000 sprites and correlate each latent dimension with each true factor. Bright cells are the disentangled dials the model discovered on its own:
factor,best_latent,abs_correlation
x position,z6,0.88
y position,z0,0.77
size,z4,0.60

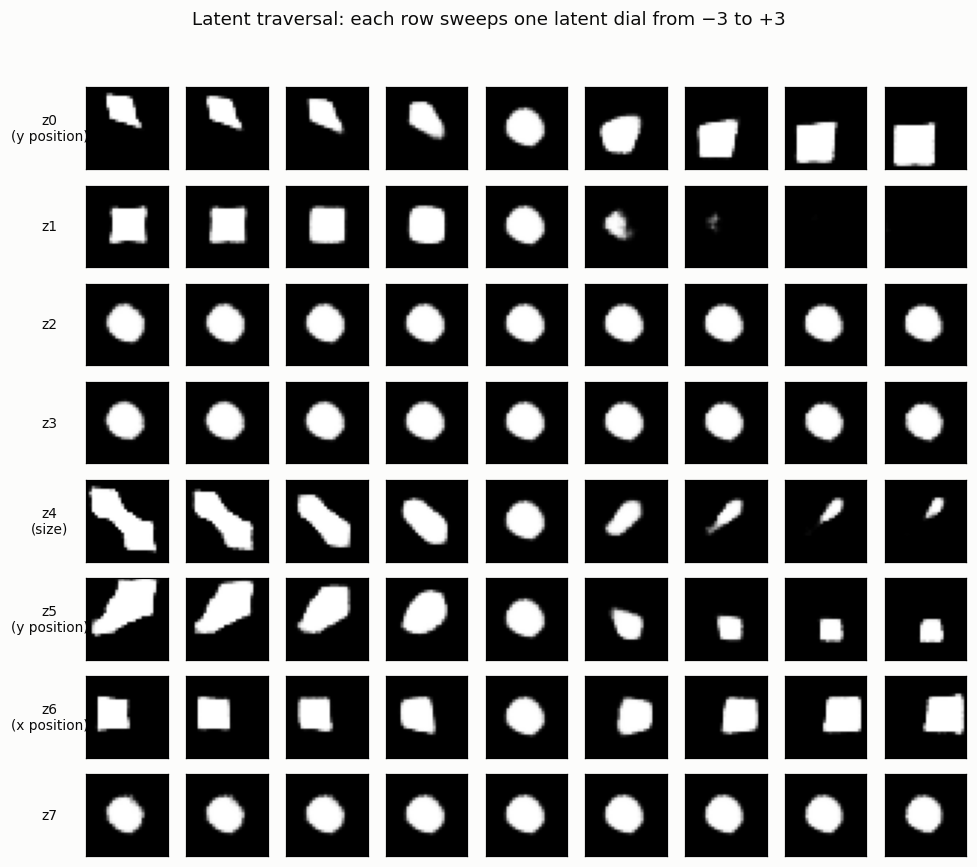

The traversals themselves. Each row freezes all dials but one and sweeps it from −3 to +3. The labelled rows do exactly what the correlation predicts — z6 slides the square left→right, z4 grows/shrinks it — while a few dims (z2, z3, z7) barely move, meaning the model didn't need them:
The disentanglement is real but imperfect (β-VAE at β=4, briefly trained): y-position is split across z0 and z5, and shape wobbles leak into a couple of dials. That partial success is honest — perfect disentanglement is hard and famously sensitive to β and seed.
Why this is the clearest proof a model understands
A memorizing model would give you a lookup table, not dials. The fact that single directions in an unsupervised latent map onto single real factors — position, size, (on faces) smile, hair, lighting — is the strongest evidence that the VAE learned the data's underlying structure, the manifold's actual coordinates. This is the whole promise of representation learning, and it's why β-VAE's disentanglement work mattered: controllable generation is easy once the knobs are separated. The same idea, scaled to text conditioning, is how you later steer a generator with words.
Things to try
- Raise β (e.g. 8, 16) and watch disentanglement sharpen — up to the point where posterior collapse (see project 08) starts killing dials entirely.
- Add a fourth factor (rotation, or square-vs-circle shape) and see whether a fresh dial claims it.
- Traverse two dials at once on a 2-D grid to watch position and size vary together — the latent space's coordinate system made visible.
