Conditional VAE

ELI5 (Explain Like I'm 5)

• The Big Idea: A plain VAE dreams up a digit, but you can't choose which one. A conditional VAE also gets told the label — both when it studies an image and when it draws one. So it stops wasting effort remembering "which digit is this?" (the label already says) and instead learns only style. Ask it for a "7", hand it a random style, and out comes a 7.
• Analogy: Imagine an artist who can draw any letter. A plain VAE artist flips a coin to pick the letter. The conditional artist takes your request — "draw a 7" — plus a mood ("loopy today"), and gives you a 7 in that mood. The request is the label; the mood is the random latent.
• Example: We label the VAE and then ask for each digit 50 times. An automatic classifier confirms the model drew the digit we asked for 90% of the time — and the sample grid shows each row locked to one digit while the columns vary the handwriting style.

Key Insight

A plain VAE can dream up new MNIST digits, but it picks which digit at random — you cannot ask it for a "7." Class conditioning fixes this by feeding the digit label into both the encoder and the decoder, so the model learns a separate region of its latent space for each class. At generation time you simply hand it the label you want, draw a random latent, and reliably get that exact digit. This tiny change is the seed of all controllable generation: the same idea, scaled up, is how text-to-image models turn a written prompt into the picture you asked for.

What's in this directory

File	Role
cvae.py	Defines and trains the conditional VAE, samples a labelled grid, and measures label adherence with the Phase-10 MNIST classifier

Reuses project 58's mnist_classifier.py as the automatic reader.

python cvae.py --data-dir data      # ~3 min on CPU

The one change from a vanilla VAE

Feed the label in twice:

• into the encoder, concatenated to the image features, so q(z | x, y) doesn't need to store the class in z;
• into the decoder, concatenated to the latent, so generation is p(x | z, y) — you supply y, sample z ~ N(0, I), and decode.

Because the class is handed to the decoder directly, the latent z is freed to model only style (slant, stroke width) — the same disentangling logic as text-to-image conditioning, in miniature.

Results

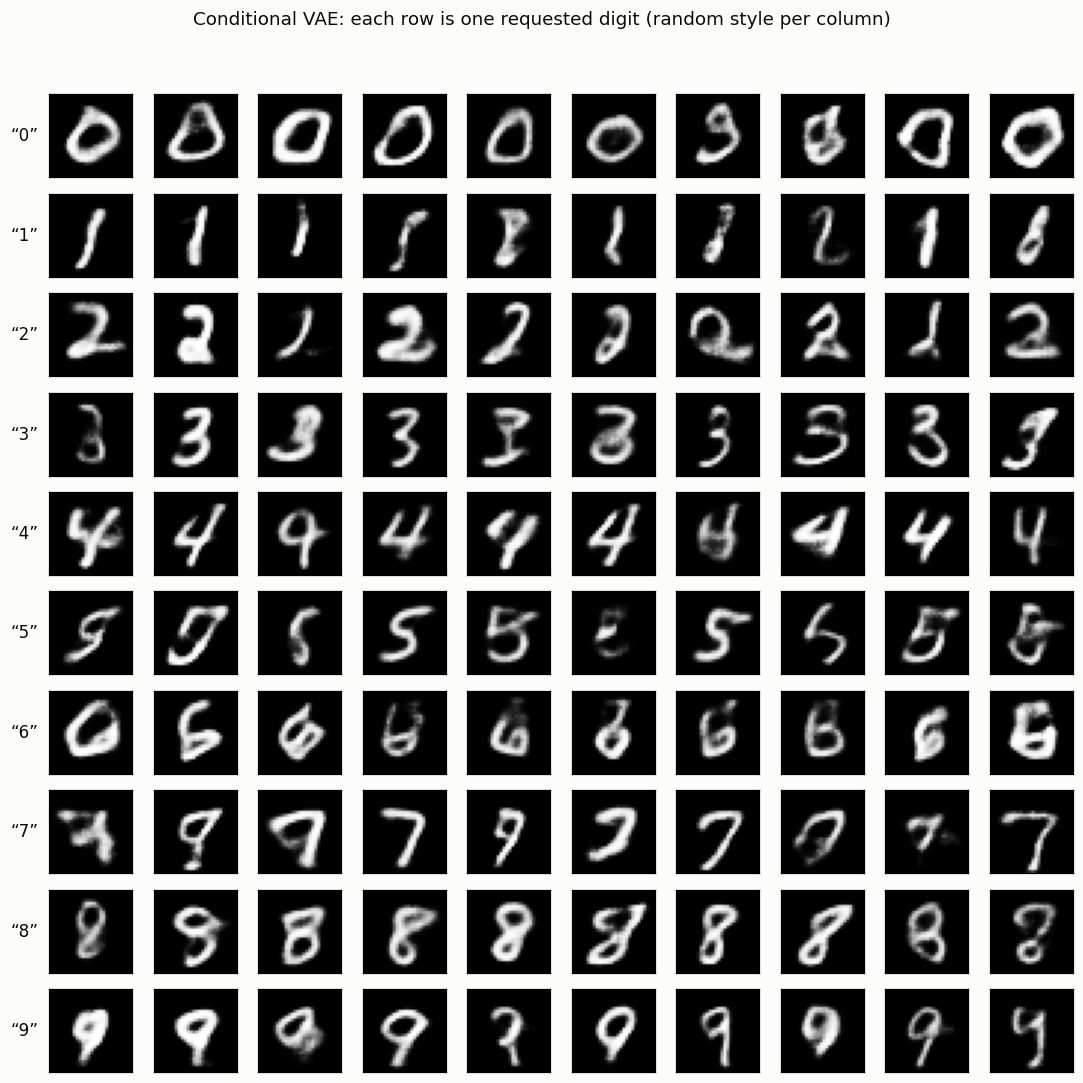

Ask, and you receive. Each row is one requested digit; each column is a fresh random style code. The class is locked, the handwriting varies:

Measured adherence. Asking for each digit 50 times and reading the results back with a classifier: 90.4% overall land on the requested digit.

digit,adherence
0,0.98   3,0.90   6,0.98   9,0.74
1,0.92   4,0.90   7,1.00
2,0.98   5,0.94   8,0.70
overall,0.904

(The stragglers are 8 and 9 — the two digits a blurry VAE most often smears into each other; the classifier, trained on sharp MNIST, is strict about the softened samples.)

Why this is the seed of everything controllable

Conditioning is the entire bridge from "a generator" to "a useful generator." The mechanism here — inject the desired attribute into encoder and decoder — is exactly what scales up to text-to-image: swap the 10-way digit label for a 77-token CLIP text embedding and the class-conditional VAE becomes, in spirit, Stable Diffusion's conditioning path. Everything in Phase 9 (LoRA, ControlNet, personalization) is more elaborate ways to steer a generator; this project is the first and simplest of them.

Things to try

• Fix the latent z and sweep only the label 0→9 — the same "style" rendered as every digit, proving z and y factor cleanly.
• Drop the label from the encoder only (keep it in the decoder) and see adherence hold — the decoder's copy is what does the steering.
• Replace the one-hot label with a 2-D "style + class" grid and interpolate the class embedding between two digits for a controllable morph.
