WGAN-GP

ELI5 (Explain Like I'm 5)

• The Big Idea: In a standard GAN, if the detective gets too smart, the counterfeiter gets discouraged and stops learning because the detective's feedback is just a flat "no." A Wasserstein GAN (WGAN) solves this by changing how the detective scores images: instead of a simple "yes/no," it measures how far the fake images are from real ones (like measuring how much dirt you have to move to make two piles look the same). We use a gradient penalty (GP) to keep the detective's scoring smooth and fair, preventing it from making wild, sudden judgments.
• Analogy: Imagine trying to learn how to high-jump. If the bar is set at 10 feet on day one, you will fail every time and learn nothing. WGAN is like having a coach who lowers the bar and gives you a score on how close you got to clearing it. The gradient penalty ensures the coach's scoring style is smooth and gradual, rather than jumping from "terrible" to "perfect" with no advice in between.
• Example: We compare a weight-clipped WGAN (which uses a crude way of smoothing the detective) against WGAN-GP. The weight-clipped model fails, drawing the same fuzzy, low-contrast blobs. WGAN-GP holds its gradient score close to 1, producing sharp and recognizable digit shapes.

Key Insight

The original GAN loss can stall: once the discriminator gets too good, it hands back almost no useful gradient, so the generator stops learning. Wasserstein GAN (WGAN) swaps that loss for the Earth Mover's Distance — the amount of "work" needed to reshape the pile of generated images into the pile of real ones — which gives a smooth, always-informative signal even when the two distributions barely overlap. For that distance to be valid the critic must be 1-Lipschitz (its output cannot change faster than its input), and this project enforces it with a gradient penalty: an extra loss term that pushes the size of the critic's input gradient toward 1, replacing the cruder weight-clipping of the original WGAN. The payoff you will see is far steadier training and much less fiddling with hyperparameters.

What's in this directory

File	Role
train.py	Trains the same DCGAN architecture (imported from project 18) with the Wasserstein critic loss, comparing --config clip (original weight-clipping WGAN) against --config gp (gradient penalty), then --plot builds the figures.

python train.py --config clip --data-dir data   # ~2 min on CPU
python train.py --config gp   --data-dir data    # ~3.5 min on CPU
python train.py --plot

Both configs: no sigmoid on the critic, loss D(fake) - D(real) (critic) / -D(fake) (generator), 5 critic steps per generator step, Adam(lr=1e-4, β=(0.5, 0.9)) — the WGAN-GP paper's recipe. clip clamps every critic weight to [-0.01, 0.01] after each step; gp instead adds 10 · (‖∇ₓD(x̂)‖ − 1)² at points x̂ interpolated between real and fake batches. The critic uses no batchnorm in either config (Discriminator(norm="none") from dcgan.py) — batchnorm would couple the gradient-penalty computation across samples in a batch, which breaks the per-sample norm the penalty is supposed to constrain.

Results

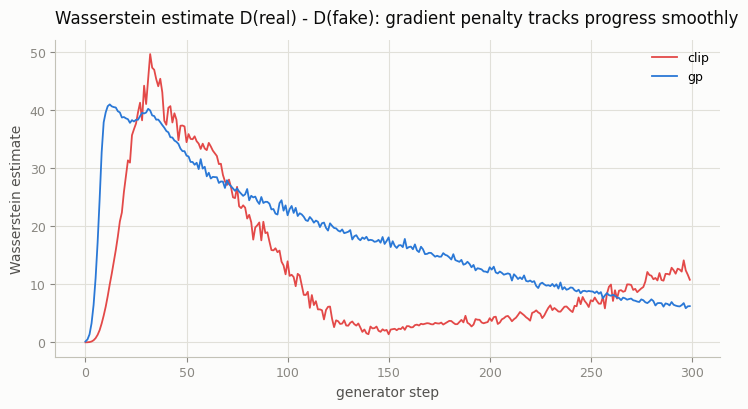

The Wasserstein estimate D(real) − D(fake) is meant to track actual sample quality, unlike the vanilla GAN's BCE loss (see project 18, where G and D loss oscillate with no clear read on progress). Both configs show it falling as training proceeds, but clip's curve is visibly rougher — a symptom of the critic wasting capacity fighting the clip boundary instead of fitting a clean 1-Lipschitz function:

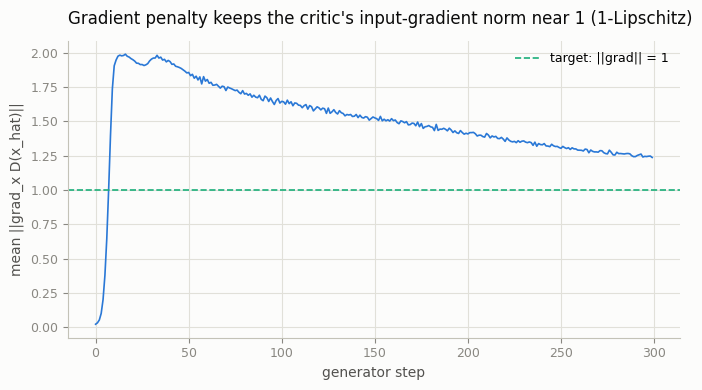

The gradient penalty is directly checkable: plot the mean input-gradient norm the penalty is computed on. It should sit near 1 if the constraint is doing its job — and it does, holding in the 1.2–2.0 band throughout training (weight clipping has no equivalent quantity to check; it just clamps regardless of what the actual Lipschitz constant needs to be):

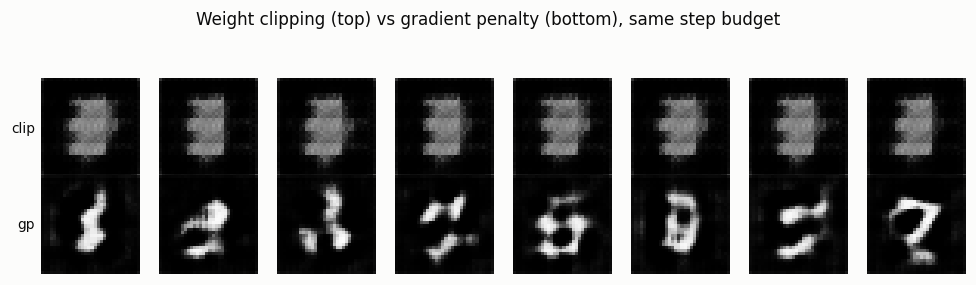

Samples make the practical gap obvious. At the same step budget, weight clipping has driven the critic (and by extension the generator) into degenerate territory — every sample is nearly the same low-contrast blob. Gradient penalty produces genuinely varied, recognizable digit shapes:

config,wall_time_s,final_wasserstein_estimate,mean_grad_norm_last_50
clip,123.5,10.781,n/a
gp,197.1,6.234,1.274

This reproduces the WGAN-GP paper's central complaint about clipping in miniature: forcing every weight into a small box is a blunt way to bound a Lipschitz constant, and it visibly costs the generator's sample quality even in a network this small, over a run this short.

Why gradient penalty wins

Weight clipping bounds the Lipschitz constant indirectly and crudely — it has no idea what value of c actually keeps the network 1-Lipschitz for the current weights, so it either clips too aggressively (collapsing the critic to near-linear functions, wasting most of its capacity) or too loosely (violating the constraint the whole theory depends on). The gradient penalty instead measures the one quantity that actually matters — the gradient norm at the exact points where it's evaluated — and penalizes it directly. That's a more direct implementation of "1-Lipschitz" than any weight constraint can be, which is why it became the default in essentially every Wasserstein-loss model after this paper (and why R1/R2 regularization, used by StyleGAN2 in project 21, is a close cousin of the same idea).

Things to try

• Push CLIP smaller (e.g. 0.001) and watch the clip-config critic collapse toward a near-constant function — the failure mode gets worse, not better.
• Increase LAMBDA_GP and watch the gradient norm plot tighten around 1 even more; decrease it and watch the constraint loosen.
• Compare wall-clock: gradient penalty costs a double-backward per critic step, so it's meaningfully slower per step than clipping for the same sample quality — a real trade-off, not a free lunch.
