PPO-Style RLHF

Key Insight

This is the original RLHF recipe behind InstructGPT and ChatGPT: treat the prompt as the state, the generated completion as a sequence of actions, the reward model's score as a terminal reward, and run PPO to nudge the policy (the language model) toward higher-scoring completions. The catch is a KL-divergence penalty back to the frozen reference model: without that leash the policy quickly reward-hacks — producing gibberish the reward model happens to rate highly — so the penalty keeps it improving slowly toward what humans actually want. This project runs a mini-RLHF loop on a small model and small reward model while tracking the KL to the reference. Why it matters: PPO-RLHF is powerful but notoriously fiddly (a separate value head, advantage estimates on token-level returns, KL scheduling), and feeling that fragility firsthand is exactly why later methods like DPO and GRPO exist to remove moving parts.

---

What's in this directory

File	Role
ppo_rlhf.py	The mini-RLHF loop. Two arms share the identical ppo_train function and differ in ONE argument: where the reward comes from. Project 57 imports ppo_train to over-optimize on purpose.

python3 ppo_rlhf.py     # ~2.5 min on CPU, three figures

Language modeling, dressed as an MDP

The first thing PPO-RLHF asks you to do is squint at text generation until it looks like the MDPs from Phase 1:

RL concept	in RLHF
state	the prompt plus tokens generated so far
action	the next token (one of 13 characters here)
episode	one completion, ending at ;
reward	0 on every token until the end; then the RM scores the whole text

That last row is why this is genuinely hard RL: the reward is terminal and the policy must figure out which of its token-actions deserve credit (credit assignment). InstructGPT's answer is the full PPO kit from project 22: a value head to estimate per-state expected reward, GAE to spread the terminal reward over tokens, clipped ratios, KL control.

Our completions are at most 4 tokens, so we can afford one honest simplification: instead of a learned value head we use the batch mean as the baseline — adv = (r - r.mean()) / (r.std() + 1e-4), broadcast to every token of the completion.

Doesn't dropping the value head change the algorithm? It swaps a learned, prompt-specific baseline for a crude global one — fine at 4 tokens per episode, where there is barely any "which token deserves credit" question to answer. With hundreds-of-tokens completions the value head becomes load-bearing (this is PPO's main moving part — the thing GRPO later deletes by using a group mean instead; see project 54). Two fiddly details survive even at toy scale, and they are instructive: the standardized advantage must be clipped to ±3, because the RM scores completions in a narrow band (its std can be tiny, and dividing by a tiny std makes advantages explode); and the KL estimate must clamp its log-ratio, because a policy that pushes one token's probability far from the reference otherwise produces exp(big) and one poisoned batch.

Everything else is the PPO you already know: sample completions at temperature 0.7, compute the clipped surrogate objective on completion tokens (masked exactly like SFT's loss mask, so prompt tokens never get gradient), add beta * KL(policy || reference) per token, update twice, resample.

The experiment: same loop, two rewards

Both arms start from the shared partial-SFT policy (project 50, greedy accuracy 0.360) with the same frozen reference. The only difference:

• arm rm — reward = score from project 51's reward model (held-out pair accuracy 0.884, near-miss accuracy 0.527), strong leash beta = 0.5;
• arm verifier — reward = the exact checker (1 if the sum is right, else 0), light leash beta = 0.08. A verifier can't be gamed, so it doesn't need the heavy leash — the remaining light one just guards the fragile answer format against noisy early updates.

25 iterations of 64 prompts each. Every iteration we log three things on the same fixed 400-prompt eval set: true accuracy (verifier), the RM's score of the greedy completions (the proxy), and the KL to the reference.

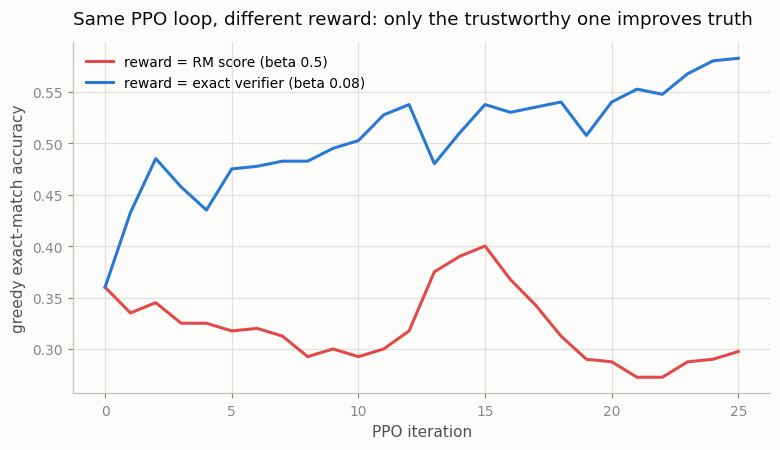

Results: you get exactly what you measure

	start	end (iter 25)
arm rm — true accuracy	0.360	0.298
arm verifier — true accuracy	0.360	0.583

The identical algorithm, the identical starting policy — one arm gains 22 points, the other loses 6. The entire difference is the trustworthiness of the number being maximized.

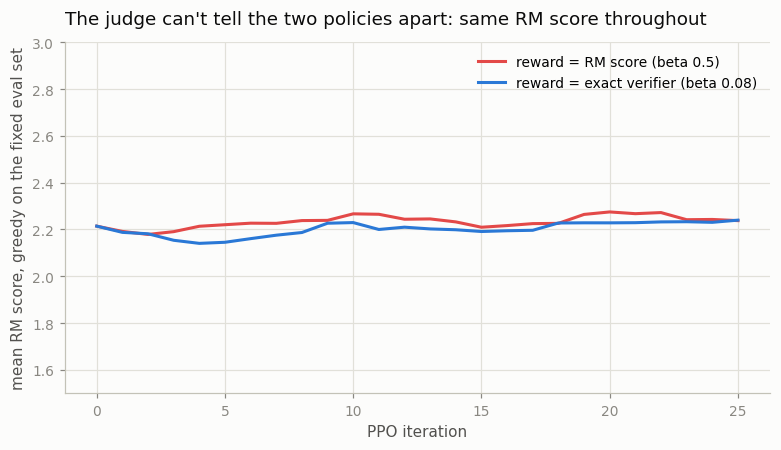

Now the plot that explains the rm arm — the judge's own opinion of both policies:

The RM scores the 0.583-accurate policy and the 0.298-accurate policy the same (~+2.2), start to finish. Recall the RM's blind spot from project 51: it can spot garbage (random wrong numbers, margin +1.9) but scores a near-miss like a correct answer (margin +0.02). Our partial-SFT policy almost never writes garbage — its errors are near-misses. So on this policy's actual output distribution, the proxy is already maxed out: there is nothing the RM can see left to improve. PPO dutifully churns inside that blind plateau (KL stays tiny, ~0.02–0.04), drifting on noise — while in the verifier arm a 22-point genuine improvement happens and the RM cannot even see it.

This is the quiet horror of proxy optimization, and it cuts both ways:

A flawed reward model doesn't just let the policy cheat — it also can't recognize real improvement. If you evaluated these two runs by "RM score went up," you would call them equally successful. Only the outside verifier reveals that one policy got markedly better and the other slightly worse. Real labs hit exactly this: RM score climbing while human evals stay flat is the standard symptom of a saturated or hacked reward model.

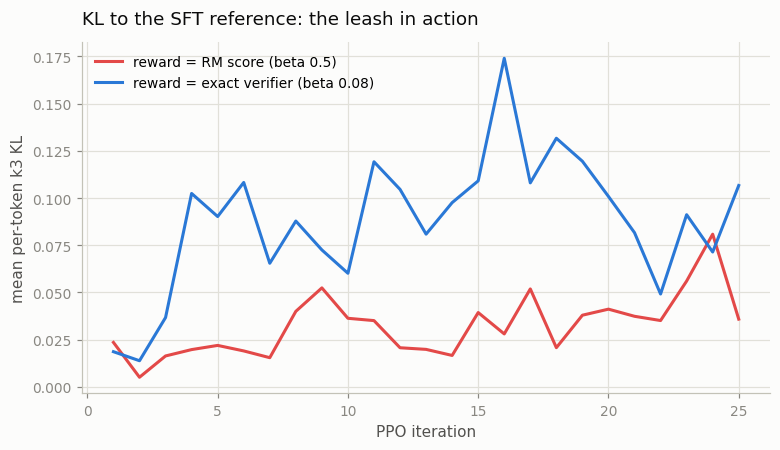

The KL trace (outputs/ppo_kl.png) completes the picture: the rm arm under beta = 0.5 barely moves from the reference (there is nowhere profitable to go), while the verifier arm spends its KL budget (~0.1 per token) buying real accuracy.

Where's the dramatic reward hacking?

Deliberately postponed. With beta = 0.5 the leash is doing its job — the policy cannot wander far enough to weaponize the RM's blind spot, which is why accuracy only drifts to 0.298 instead of collapsing. Project 57 reruns this exact ppo_train with beta = 0 and forty iterations, and watches the policy migrate its answers into the blind spot wholesale. Between them sits the real point of this project: the KL penalty buys you time under a flawed reward, but no amount of leash makes a flawed reward produce real improvement.

What to take away

1. RLHF is Phase-4 PPO wearing a text costume. Prompt = state, token = action, terminal RM score = reward, plus the familiar clipped surrogate. The exotic part is not the algorithm — it is what the reward is.
2. The value head is PPO-RLHF's heaviest moving part. We could replace it with a batch baseline only because completions are 4 tokens; at real lengths it is essential — and its cost is precisely what GRPO's group trick later removes.
3. The optimizer maximizes the number you hand it — measured 0.583 vs 0.298 from identical code, differing only in the reward source.
4. A saturated proxy looks like success. Both arms held a ~+2.2 RM score throughout; the proxy could neither detect the verifier arm's genuine 22-point gain nor the RM arm's decay. Never evaluate a policy with the same model that trained it.
5. The leash contains damage; it cannot create signal. beta = 0.5 kept the RM arm within 6 points of where it started. What happens without it is project 57's show.
