RND on Atari

Key Insight

Random Network Distillation (RND) scales the "reward novelty" idea up to high-dimensional Atari screens, where simple visit counts are meaningless because no two frames are ever identical. It keeps two networks: a fixed, randomly-initialized target network and a predictor network trained to copy the target's output on every state the agent visits (distillation of one network into another). On familiar states the predictor has had plenty of practice and its error is tiny; on a genuinely new screen it has never trained, so its error is large — and that prediction error is handed straight to the agent as an intrinsic reward. Why it matters: with no hand-designed counts, RND was the method that finally cracked Montezuma's Revenge, the notorious sparse-reward game where the agent must cross several rooms before earning a single point, putting curiosity-style intrinsic motivation firmly on the map.

---

An honest word about "on Atari"

The RND paper trains on 2 billion frames of Montezuma's Revenge across 128 parallel workers. On this CPU that is several months of compute. Pretending otherwise would teach you nothing, so this project is split in two halves, and neither pretends to be the other:

Half	What it is	What it proves
The agent	A miniature Montezuma: a pixel maze with the same shape of problem — thread a tunnel, fetch a key, come back, open a door. ~31 correct moves for a single point.	PPO alone never finds the reward. PPO + RND does.
The signal	RND's novelty detector itself, run on real 210x160 Montezuma frames from the Arcade Learning Environment.	The bonus really is a novelty meter on true Atari pixels: it collapses on frames it has studied and stays 51x higher on frames it has never seen.

What's in this directory

File	Role
explore_lib.py	The shared stack for the whole phase: the maze, the vectorized envs, PPO with two value heads, and the RND bonus. Project 47 and project 49 import it, so all three projects change only the bonus and nothing else.
rnd.py	Runs both halves: 4 seeds x (PPO, PPO+RND), then the real-Atari novelty demo.

python3 rnd.py     # ~9 min: 8 training runs in parallel, then the Atari probe

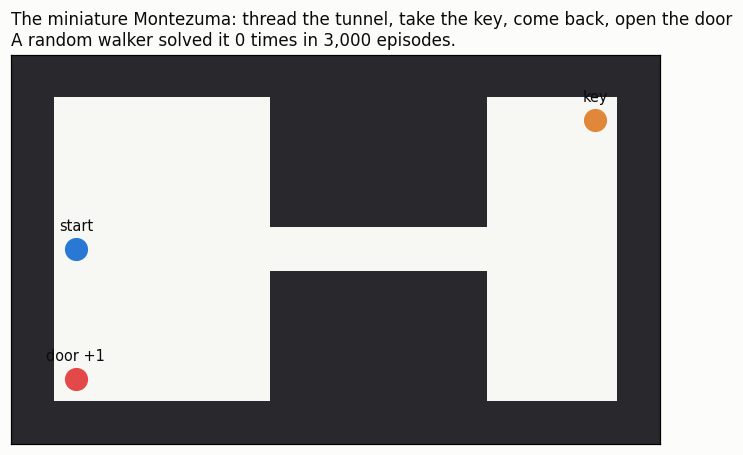

The maze

The agent sees a stack of small binary images (5 channels x 9 x 15): walls, itself, the key, the door, and an "inventory bar" saying whether it is carrying the key. It is a cartoon of an Atari screen — and, importantly, nothing in it is a state number, so the visit counter of project 45 has nothing to count.

Two design choices were forced on this maze by measurements, and both are worth knowing because they are exactly the traps that make a demo lie:

1. The tunnel is five cells long, not a doorway. With a simple doorway, the maze was solvable by accident: because the observation says whether the agent holds the key, an untrained network can behave like two different biased drifts — one before the key, one after — and roughly 1 random initialization in 6 drifted the right way twice. That is how the "PPO never finds it" baseline first sneaked a win, at step 15,104, with no learning at all. No drift threads a five-cell tunnel and comes back.
2. The episode is 200 steps, not 50. A tight deadline kills luck, but it also starved the curiosity agent: it fetched the key and the clock ran out before it could carry it home. A long tunnel keeps luck impossible even with a generous deadline.

With both in place, the sparseness is real and measured:

Who	Episodes solved
A uniform random walker	0 / 3,000
Six untrained networks	0 / 2,400
Trained PPO, 500k steps	0 / 4 runs

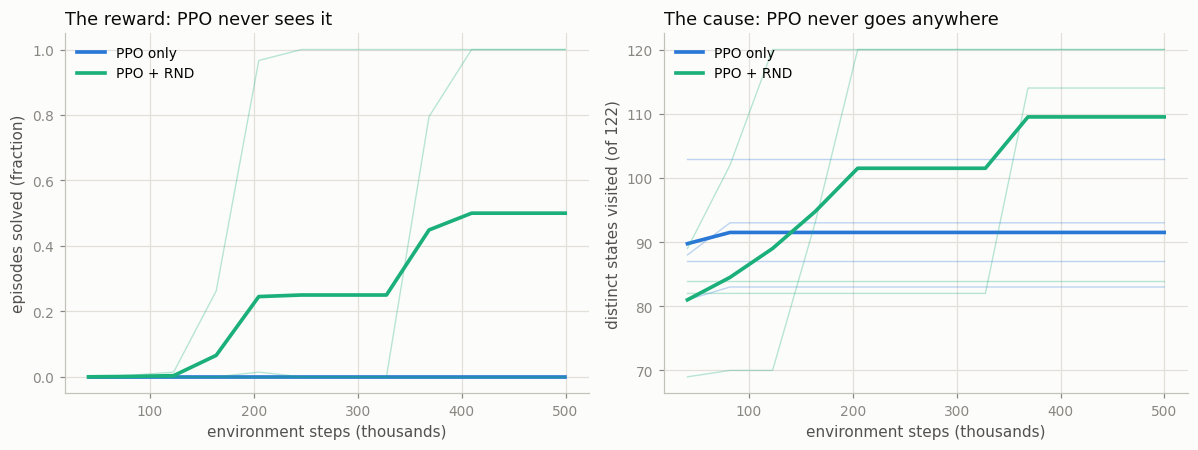

Result 1: the agent

Four seeds each, 500,000 steps each:

	found the reward	learned to repeat it	states seen (of 122)
PPO only	0 / 4 — never, in 2 million total steps	0 / 4	83–103
PPO + RND	3 / 4 (at steps 76k, 188k, 342k)	2 / 4	84–120

The two columns say different things, and the gap between them is the lesson.

Finding the reward. This is exploration's job, and RND does it: three of four runs stumble onto a door that random play has never opened in 3,000 tries. PPO alone does not find it once. Not "rarely" — never, across four independent runs and two million steps. Its gradient has literally nothing to push on: every episode returns zero, so every action looks exactly as good as every other, and the policy just drifts wherever its initialization pointed. That is what the right-hand plot shows — PPO's coverage flattens out around 90 states, which is what "wandering near home" looks like when drawn.

Keeping it. Two of the three finders turned it into a policy that solves every episode. The third (seed 3) found the door at step 188k, saw 120 of the 122 states — it explored beautifully — and still ended at a success rate of 0.01. One success among thousands of episodes is a very thin gradient signal, and the intrinsic reward is meanwhile still paying it to go and look at things. Exploration found the door; exploitation never took over.

This is the honest state of the art, not a broken run. The guide's own summary of this phase says it plainly: no algorithm robustly explores arbitrary sparse-reward worlds. RND turned an impossible task into one that is solved most of the time. It did not turn it into a solved task. If your intuition was "add curiosity and exploration is handled", the fourth seed is here to remove it.

The two details that make RND work

Both look like fussy implementation trivia. Both are load-bearing, and each one was a real bug before it was a design choice.

Two value heads, not one. The extrinsic reward is episodic — reaching the door ends the episode. Novelty is not: dying does not make a room you already saw interesting again. So the advantage is computed twice, with two critics, and the intrinsic one deliberately ignores episode boundaries (episodic=False in the code). Merge them into one head, as most first attempts do, and the agent learns that ending the episode cuts off its future curiosity income — so it avoids the door to keep sightseeing.

The predictor is trained on only 25% of the data (update_proportion, straight from the paper). Deliberately handicapping your own novelty detector sounds perverse. The reason is a race: the predictor learns states far faster than the policy learns to reach the reward, and once every state is familiar the bonus dies and the agent goes back to wandering. Feeding the predictor a quarter of the experience keeps novelty alive long enough for the policy to convert it into a route. Curiosity is a fuel that burns as you use it, and this is the throttle.

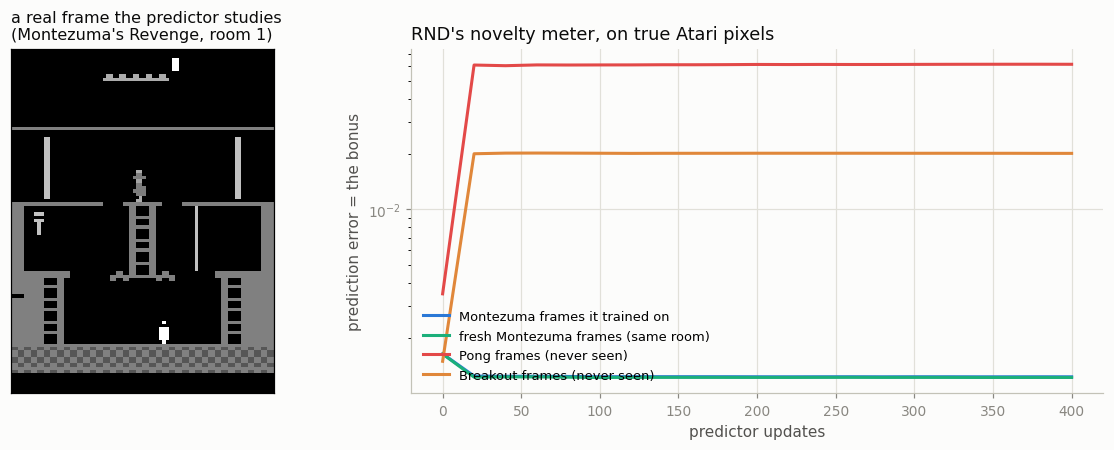

Result 2: the signal, on real Atari pixels

We cannot train on Montezuma. We can ask whether RND's novelty meter works on its real frames, which is the claim the whole method rests on. So: take an RND predictor, train it on 400 real Montezuma frames (from random play — which never leaves the first room, and that fact is the game's reputation), and watch its error on four groups of frames.

Frames the predictor sees	Prediction error after 400 updates
Montezuma frames it trained on	0.0012
Fresh Montezuma frames (same room, unseen)	0.0012
Breakout frames (never seen)	0.0201 — 17x
Pong frames (never seen)	0.0614 — 51x

Three things worth pausing on.

It generalizes, which is the whole trick. The error on fresh Montezuma frames is identical to the error on the training frames (0.0012). RND is not memorizing pictures; it has learned the look of that room, so any frame from it is "familiar" — which is precisely what counting could never do, because no two Atari frames are ever byte-for-byte identical and every raw count would stay stuck at 1.

Novelty is a comparison, not an absolute. At step 0 the errors are all small and all similar (0.001–0.003) — an untrained predictor is equally wrong everywhere. The separation appears during training: as the predictor specializes on Montezuma, its error on other games climbs. The signal is the 51x ratio, not the raw number, which is also why the agent's bonus has to be rescaled by a running standard deviation instead of used as-is.

Even the ranking means something. Breakout (17x) is less alien than Pong (51x) — a mostly dark screen with small bright objects is closer to Montezuma than Pong's big white paddles. Nobody taught it that. It falls out of a random network and a regression loss.

What to take away

1. On a sparse-reward maze that random play never solves, PPO scores exactly zero and RND solves it. 0/4 runs versus 3/4 — the clearest possible statement that exploration is a separate problem from learning.
2. RND replaces counting with regression. A frozen random network turns any observation into a fingerprint; a predictor learns to reproduce those fingerprints; its error is novelty. No counts, no density model, no memory of what it has seen — and it works on real Atari pixels, where the error on unseen games is 17–51x higher than on studied ones.
3. The bonus must be kept alive. Train the predictor on everything and it learns the world faster than the policy can use it. Training on 25% of the data is the paper's throttle.
4. Novelty is not episodic; reward is. Two value heads, two advantages, and the intrinsic return does not stop at episode boundaries. One head and the agent learns to avoid the exit.
5. It is not solved. One seed in four never found the door; another found it and failed to keep it. "Add curiosity" makes hard exploration usually work, which is a very long way from reliably.

Next: project 47 keeps this exact maze and swaps only the bonus, asking whether predicting what happens next (curiosity about dynamics) beats predicting a random fingerprint. And project 49 puts a television in the corner of the same maze — and RND, whose novelty detector you have just watched work beautifully, sits down and watches it forever.
