Dreamer V3 Reproduction

Key Insight

DreamerV3 learns a compact world model of the environment and then trains its policy almost entirely "in imagination" — rolling the policy forward inside the learned latent dynamics instead of the slow, expensive real environment. Its claim to fame is generality: a single fixed set of hyperparameters clears tasks as different as Atari games and collecting diamonds in Minecraft, which had long been an open problem in RL where each task usually needs its own tuning. Reproducing it on a custom environment is the best way to feel how much work the model-based world model does and how few knobs you actually have to touch.

---

What's in this directory

File	Role
dreamer.py	The custom environment, the RSSM world model, the imagination-trained actor-critic, and the ablations.

python3 dreamer.py    # ~8 min on 12 hyperthreads

The premise: the agent learns to act inside its own head

   real env  ──▶  a few thousand frames  ──▶  world model
                                                   │
                                                   ▼
                                        millions of imagined frames
                                                   │
                                                   ▼
                                            actor + critic

The actor in this project never sees a real frame. Not once. Every gradient it receives comes from rollouts imagined inside the learned latent space. The real environment is used for exactly two things: collecting frames to train the world model, and telling us the score at the end.

Compare this with the rest of Phase 6. Projects 32 and 33 used the model to plan — no policy at all, a fresh search every step, which is slow at decision time. Project 34 used the model to top up a real replay buffer. Dreamer goes all the way: the model replaces the environment for learning purposes, and the resulting policy is a plain feedforward network that acts instantly, with no search.

The custom environment: Catch

A paddle at the bottom, a ball falling one row per step from a random column, on a 10x5 grid of raw pixels. Move left, right, or stay. The agent sees only the pixels — it is never told where the ball is.

 . . X . .        the ball (X) falls one row per step
 . . . . .
 . . . . .        the paddle (P) moves left/right/stay
 . . . . .
 . . P . .        catch it: +1     miss it: -1     every other step: 0

Two properties make this a real test rather than a toy.

It is a credit assignment problem. The reward arrives only on the final frame. Every other step pays exactly zero. So the agent must connect a +1 at step 9 back to the paddle nudges it made at steps 1 through 8. This is precisely where a world model helps: the ball's motion is a dense, easy signal available in every single frame, while the reward is a rare one. The model learns physics from the dense signal, and the actor then trains against the model instead of groping for a reward it sees once per episode.

The agent must discover objects from pixels. Nothing tells it there is such a thing as a ball, that balls fall, or that the paddle should be under it. It has 50 numbers per frame.

The world model: why the latent has two halves

The RSSM (Recurrent State-Space Model) splits its latent state in two, and the split is the single most important design decision in the Dreamer family:

part	what it is	what it is for
h (deterministic)	a GRU's hidden state	remembering: "the ball has been falling on the left for three frames"
z (stochastic)	a sample from a learned distribution	guessing: "the ball started in column 3" — nothing in the past could have told you that, so it must be sampled, not computed

Neither half works alone. A purely deterministic model cannot represent genuine uncertainty, so when several futures are possible it predicts their average — a blurred ball smeared across two places at once, which is a picture of nothing that can ever happen. A purely stochastic model forgets. Together: h remembers, z guesses.

During training, two distributions over z are computed at every step:

• the posterior, which is allowed to look at the current frame, and
• the prior, which is not.

The KL divergence between them is the loss that teaches the prior to predict the future — and that matters enormously, because during imagination the prior is all the model has. There are no frames in a dream.

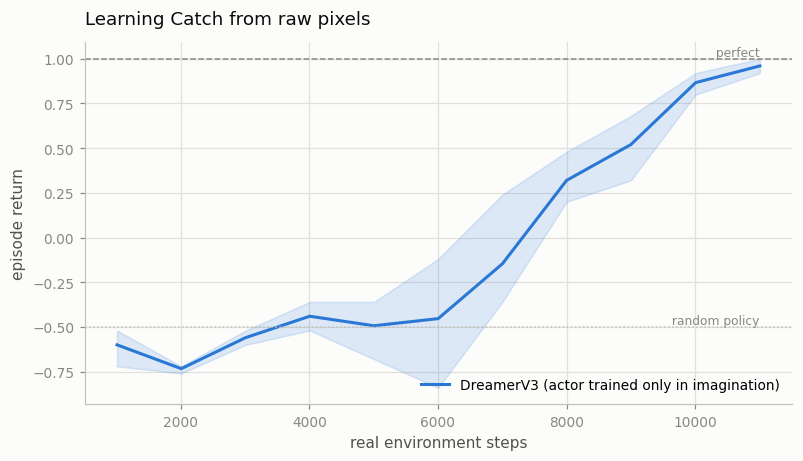

Result 1: it learns Catch from pixels

	final return (3 seeds)
a random policy	≈ −0.5
DreamerV3 (this project)	+0.96 (+0.92, +1.00, +0.96)
perfect play	+1.00

Near-perfect, from raw pixels, in about 11,000 real frames — with an actor that never once looked at a real frame.

Result 2: look inside the dream

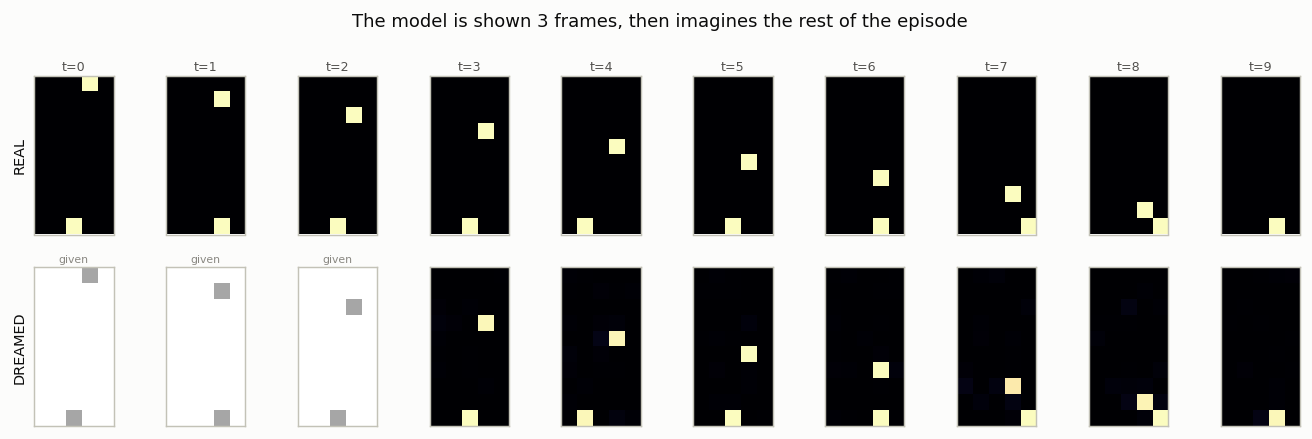

This is the part worth staring at. Show the model three real frames, then close its eyes: feed it only the actions, and let it roll its own prior forward and decode each imagined latent back into pixels.

Top row: what really happened. Bottom row: what the model imagined would happen, given only the first 3 frames.

From t=3 onward the model is receiving no pixels whatsoever. Every frame it draws is hallucinated from its own previous hallucination. And it is right: the ball keeps falling one row per step, on the correct diagonal, the paddle responds correctly to each action, and at t=9 the two arrive on the same square — a catch, correctly imagined six steps before it happened.

Mean per-pixel error of the imagined frames: 0.0042. On pixels that are 0 or 1, that is essentially exact.

Nobody told this model that there is a ball, that it falls at one row per step, or that "left" moves the paddle left. It learned all of it from 50 numbers a frame and a KL divergence.

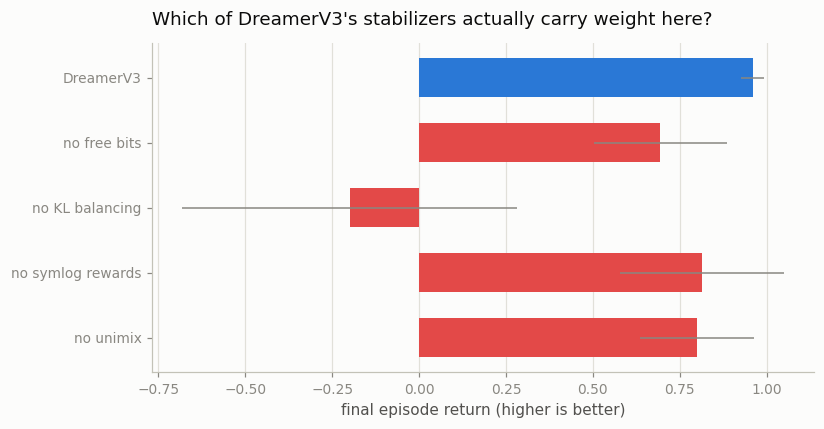

Result 3: which of DreamerV3's famous tricks actually matter?

DreamerV3's headline claim is generality — one hyperparameter setting for hundreds of tasks. That generality is bought with a handful of stabilizing tricks. So switch each one off and see which are load-bearing.

variant	final return (3 seeds)
DreamerV3 (all tricks on)	+0.96
no free bits	+0.69
no KL balancing	−0.20 (+0.48, −0.52, −0.56)
no symlog rewards	+0.81
no unimix	+0.80

KL balancing is the one that is holding everything up. Remove it and the agent collapses to worse than random on two of three seeds.

Here is why. The KL term has two jobs that pull in opposite directions:

1. drag the prior toward the posterior — "learn to predict what you're about to see"
2. drag the posterior toward the prior — "don't smuggle in detail you couldn't have predicted"

Written as one symmetric term, job 2 wins. The cheapest way to make the KL small is for the posterior to stop encoding anything at all and simply agree with the lazy prior. The latent goes empty, and the whole model quietly dies — posterior collapse, the classic failure of every latent-variable model. KL balancing gives the two directions separate weights (mostly train the prior, only gently regularize the posterior), and a detach() is what splits them. It is two lines of code and it is the difference between +0.96 and −0.20.

Free bits (+0.69 without) attacks the same disease from the other side: ignore the KL entirely while it is below 1 nat, so the model is not punished for using a modest amount of information. Think of it as an expense allowance — you are not nagged about spending until you exceed it, so you actually spend what you need.

The interesting null: symlog barely matters here, and that is exactly right

Turning off symlog costs almost nothing (+0.81 vs +0.96, well inside the seed spread). Do not conclude that symlog is useless.

Symlog compresses reward magnitudes so that one learning rate can serve a game paying 0.01 and a game paying 10,000. Catch pays exactly +1 or −1. There is no scale problem for symlog to solve, so it does nothing — and it should do nothing.

This is a trap worth naming, because a single-task benchmark will fall into it every time. Symlog's entire purpose is to make one hyperparameter setting work across tasks with wildly different reward scales. That benefit is, by construction, invisible to any experiment run on one task. An ablation can only measure what varies inside it. Here, reward scale does not vary — so this ablation is structurally incapable of detecting symlog's value, and a "0.15, within noise" result is not evidence of anything.

To actually test symlog you would have to do what DreamerV3 did: run the same configuration, unchanged, over a hundred tasks with wildly different reward scales, and count how many it clears.

What to take away

1. A world model turns a sparse reward into a dense one. Catch pays out once per episode, but the ball's motion is visible in every frame. The model learns from the dense signal; the actor then learns from the model. That is the deepest reason model-based RL helps.
2. h remembers, z guesses. A latent that is only deterministic will blur across possible futures; one that is only stochastic will forget. The split is the design.
3. The KL term is a negotiation between two opposing forces, and if you let it run symmetrically the destructive one wins. KL balancing and free bits are both defences against posterior collapse, and here they are worth 1.16 return between them.
4. An ablation can only see what varies inside it. Symlog looked worthless in this experiment because the experiment held reward scale fixed — the one thing symlog exists to handle. Before reporting "component X does nothing", ask whether your setup even contains the problem X was built to solve.

Next: project 36 drops the decoder entirely — a world model that never reconstructs anything and plans anyway.
