Mini MuZero

Key Insight

MuZero combines Monte Carlo Tree Search with a learned dynamics model that predicts only what matters for decisions — reward, value, and policy — without ever reconstructing the actual game board, which is why the same algorithm works on Atari pixels as well as board games.

Implementing it on a tiny game like Tic-Tac-Toe or 4×4 Connect Four exposes its three coupled neural network heads, which collaborate to let the agent plan ahead entirely in its mind:

• Representation function (or Representation head): This translates raw inputs (like game screens or board coordinates) into a clean, abstract latent state containing only details relevant to winning. Analogy: A chess master looking at a board does not care about the wood grain of the pieces or the glare of the lights; they represent the board abstractly in their mind as "castled king" or "weak center."
• Dynamics head: This takes a latent state and a proposed action, and predicts the next latent state and any immediate reward. Analogy: When planning a move in your head, you think "if I slide my rook here (action), the position in my mind will change (next state) and I will capture their bishop (reward)."
• Prediction head: This looks at any latent state (real or imagined) and immediately predicts the policy (which moves are best to try) and value (the chance of winning). Analogy: A seasoned player looks at a board layout and has a gut feeling: "I have about an 80% chance of winning from here (value), and my best next move is probably to advance my pawn (policy)."

The "Zero" in the name marks its descent from AlphaZero, which ran the same search-plus-learning loop but was handed the real game rules; MuZero learns the rules instead.

---

What's in this directory

File	Role
muzero.py	The game, the three heads, the MCTS, the training loop, and a perfect minimax opponent to test against.

python3 muzero.py     # ~5.5 min on 12 hyperthreads

What is actually missing from this model

Look at the three heads again and notice what is not there: a decoder.

Nothing in this file ever turns a latent s back into a board, and nothing ever checks that it could. s is not a board. It is not a compressed board. It is not required to resemble a board in any way. It is whatever internal scratchpad makes the predictions — policy, value, reward — come out right. All three heads are trained end-to-end through the search, so they are free to agree on any private language they like.

That is the last step in the "Zero" lineage. AlphaZero was handed the rules of the game and searched with them. MuZero is handed nothing, and learns a rule-like thing that is only ever required to be right about the things a decision depends on.

The recurrence, which is the thing to actually see

Training does not fit the three heads separately. It unrolls them:

   real board ──h──▶ s₀ ──┬──f──▶ (policy₀, value₀)   ⟵ must match the real game at ply t
                          │
                    a₀ ──g──▶ s₁ ──┬──f──▶ (policy₁, value₁, reward₀)  ⟵ ...at ply t+1
                                   │
                             a₁ ──g──▶ s₂ ──f──▶ (policy₂, value₂, reward₁) ⟵ ...at ply t+2

Encode a real board once, then run the dynamics head g forward K times on its own output, and demand that the prediction heads keep matching the real game at every one of those imagined steps. The model is never asked to reconstruct anything — only to stay predictive after k steps of imagination. That is the entire training signal, and it is why the three heads end up sharing one representation instead of learning three.

Two experiments in one, because the first one failed

The honest history of this project: the pure MuZero implementation learned to play badly and its search did not help at all. Rather than tune it until the numbers looked nice, the failure turned out to be the most instructive thing here — so the project now runs two variants and compares them.

The difference is a single flag, and it is a flag about the rules:

variant	what the tree knows below the root
MuZero (learns the rules)	Nothing. It does not know which moves are legal, or that the game can end. Real MuZero.
MuZero + known legality	Legal moves only; stop at a finished game. The dynamics is still learned — only legality and termination are given.

The second variant is not AlphaZero: the latent transitions still come from the learned dynamics head g. It isolates exactly one thing — what does not knowing the rules cost you?

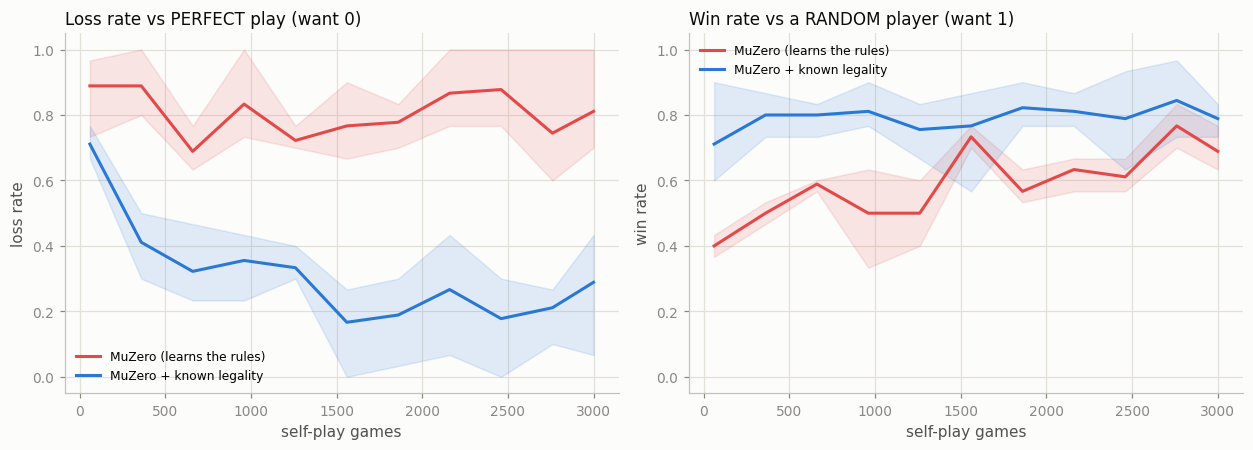

Result 1: not knowing the rules is enormously expensive

Three seeds each, 3,000 self-play games. The opponent for the left-hand chart is a perfect minimax player, so a draw is the best result obtainable and the number to drive to zero is the loss rate.

variant	loses to perfect play	draws perfect play	beats a random player
MuZero (learns the rules)	0.81	0.19	0.69
MuZero + known legality	0.29	0.71	0.79

Told which moves are legal, the agent holds a perfect player to a draw 71% of the time. Left to learn legality for itself, on the same budget, with the same network, it gets crushed in 81% of games.

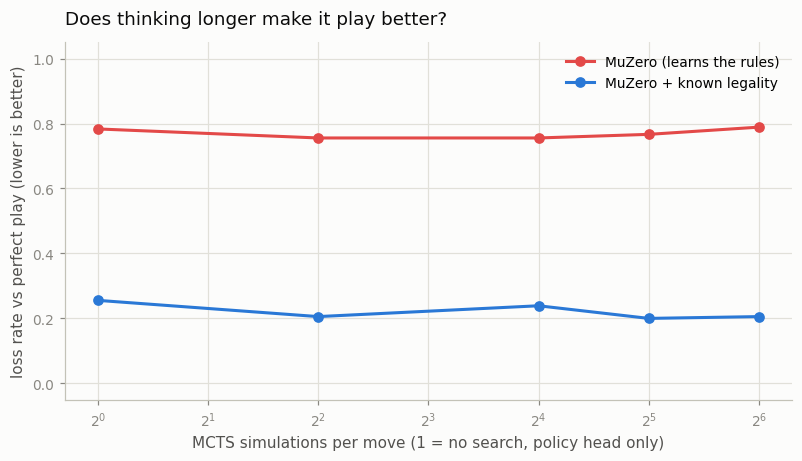

Result 2: the search is doing nothing (and here is why)

Now freeze the weights and only change how long the agent is allowed to think. 1 means the search is switched off entirely and the raw policy head plays.

simulations per move	MuZero (learns rules)	MuZero + known legality
1 (no search)	0.78	0.26
4	0.76	0.21
16	0.76	0.24
32	0.77	0.20
64	0.79	0.21

Read the middle column top to bottom. Sixty-four times more thinking buys exactly nothing — 0.78 with no search at all, 0.79 with 64 simulations. The search is a very expensive way to reproduce the policy head's opinion.

That should alarm you, because a working "Zero" algorithm is defined by search making the network better. The search is supposed to be a stronger player than the network that powers it — that is the whole improvement operator:

the network proposes, the search disposes, and the network is then trained to imitate the search. Because the search plays better than the raw network, imitating it makes the network better, which makes the next search better still.

If search does not beat the raw policy, that engine has stalled.

Why the tree is poisoned

Below the root, MuZero does not know what is legal. So it happily plans moves like "play on the square my opponent already occupies."

And now the trap springs. Self-play never makes an illegal move (legality is masked at the root, where the real board is available). So the dynamics head g has never once been trained on an illegal transition. Ask it what happens when you play on an occupied square and it returns a latent from nowhere — untrained, unconstrained, meaningless. The value and policy heads then read that meaningless latent and report meaningless numbers, and every node beneath it inherits the nonsense.

With 9 actions and only a few moves played, most of the tree's branches are illegal, so most of the search budget is spent evaluating hallucinations, and the root's statistics are averaged over them. More simulations just means more hallucinations. That is precisely what the flat line in the middle column is.

Real MuZero does not have this problem, and the reason is quantitative rather than structural: with millions of games, the policy head drives the prior on illegal moves to essentially zero, and PUCT then never selects them — the exploration bonus is multiplied by that prior. The illegal branches are still there; the network has simply learned to never look at them. Our network, after 3,000 games, has not learned that yet.

The transferable lesson. MuZero's generality is not free — it is bought with data. "Learn the rules from scratch" is a real capability and a real bill. When you cannot pay that bill, hand the model the structure you already have. A great deal of applied RL is deciding which invariants to hard-code and which to learn, and "we have the rules, so use them" is very often the right call.

Note also the right-hand column: with legality known, search does help — 0.26 with no search down to 0.20 at 32 simulations. Modest, because Tic-Tac-Toe is small and the policy head already handles most positions, but it is going the right way. The engine runs once you stop feeding it garbage.

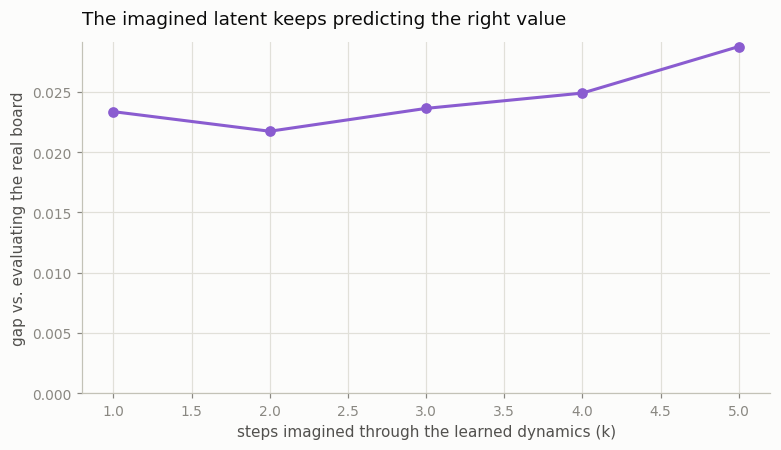

Result 3: the latent really does stay predictive without ever being a board

This is MuZero's headline claim, and it survives intact.

Take a real board, encode it once with h, then imagine k moves forward using only g. Now compare the value predicted from that imagined latent against the value predicted from the real board at that point (which we can compute, because we still have the real game sitting there).

steps imagined	gap between imagined value and real-board value
1	0.023
2	0.022
3	0.024
4	0.025
5	0.029

Values live in [-1, +1], so a gap of 0.029 after five steps of pure imagination is tiny — and, remarkably, almost flat. Compare this against project 32, where an observation-space model's error grew by a factor of 800 over 30 steps.

Why is MuZero's imagination so much more stable? Because it is imagining less. Project 32's model had to predict the pendulum's actual coordinates, and any error in those coordinates fed straight back in and grew. MuZero's dynamics head is never asked for the board — only for a latent from which the value comes out right. It is free to discard everything a decision does not depend on, and what you never model, you cannot get wrong.

Analogy. Asked to predict a chess position 5 moves out, a grandmaster will not tell you the exact pixel layout of the board. They will say "I'm a pawn up with a safer king." That summary is enough to decide with, and it stays reliable far deeper than any attempt to render the exact position would.

This is the idea the guide's Key Insight for Phase 6 is pointing at, and the one the frontier converged on: model what you will be queried on, not everything.

What to take away

1. The three heads are one model, trained through a recurrence. Encode once, roll the dynamics forward on its own output, and supervise the predictions at every imagined step.
2. Search is only an improvement operator if the model it searches over is sound. Ours was not, below the root, and the search collapsed to a very expensive no-op. Always run the sims=1 arm — if thinking longer does not play better, your search is searching a hallucination.
3. Learning the rules from scratch is a real cost, paid in data. MuZero's generality is magnificent at DeepMind scale and a liability at laptop scale. If you have the structure, use the structure.
4. A model that predicts only what decisions need is far more stable under imagination than one that predicts everything — 0.029 drift after 5 steps, against an 800x error explosion for an observation-space model over 30.

Next: project 37 takes exactly that idea — a latent trained only on what the decision needs — into continuous control.
