img2img and Inpainting

ELI5 (Explain Like I'm 5)

• The Big Idea: Instead of starting from pure random noise, we can start with a real image and edit it. For img2img, we add a little bit of noise to a photo and let the model clean it up while following a new prompt. For inpainting, we draw a mask over a specific part of the image (like a person's shirt), noise only that part, and tell the model to fill in the masked area while keeping the rest of the image exactly the same.
• Analogy: img2img is like tracing over a sketch with a pencil, adding your own style. Inpainting is like using white-out on a spelling error in a letter and writing the correct word over it, matching the handwriting of the rest of the letter.
• Example: You take a photo of a dog sitting on a lawn, draw a mask over the dog, and type "a sleeping tiger." The model erases the dog and generates a tiger in its place, while leaving the grass and trees around it completely untouched.

Key Insight

img2img and inpainting show that the same trained diffusion model does far more than generate from scratch — both fall out of the Stable Diffusion sampling loop almost for free. The key control is the noise strength (also called denoising strength): instead of starting from pure noise, you partially noise an existing image and denoise from there, so a low strength keeps the original almost intact while a high strength redraws it freely. Inpainting adds a mask so only the selected region is regenerated while the known pixels are pasted back on every step — exactly how you erase an object or swap a face without disturbing the rest of the picture.

What's in this directory

File	Role
diy_pipeline.py	The four raw SD components wired by hand: a vanilla txt2img loop, then img2img and inpaint as small modifications of it
run_demo.py	Generates a base image, sweeps img2img strength, and inpaints a masked region

No StableDiffusionImg2ImgPipeline, no special inpainting checkpoint. The deliberate constraint of this project is to build both features from the vanilla loop, because that is where the understanding lives.

python run_demo.py       # ~5 min on a multicore CPU

The two modifications, in full

The vanilla loop (txt2img): embed the prompt (twice — empty string for CFG's unconditional branch), start from Gaussian noise in latent space, step the scheduler down to zero, decode once at the end.

img2img is a late entry point. Encode the init image with the VAE, noise it directly to an intermediate level with the closed-form forward jump (the DDPM on MNIST project's q_sample, wearing its scheduler.add_noise name), and run only the remaining portion of the loop:

start = int(steps * strength)          # how much of the loop to run
timesteps = timesteps[steps - start:]  # skip the high-noise steps
z = scheduler.add_noise(encode(init_image), noise, timesteps[:1])

strength is nothing but "what fraction of the schedule to traverse." At 1.0 the init image is noised beyond recognition (pure txt2img); at 0.0 the loop never runs. Everything in between trades faithfulness for freedom.

Inpainting is a per-step constraint. Run the normal full loop, but after every scheduler step, overwrite the known region with the original latents re-noised to the current step's level, so known and generated content always sit at the same noise level:

z = scheduler.step(eps, t, z).prev_sample
z_known_t = scheduler.add_noise(z_known, noise, t_next)
z = mask * z + (1 - mask) * z_known_t    # mask = 1 where we generate

The U-Net fills the hole with content consistent with its surroundings because on every step its receptive field sees the (noised) real context. Note the mask lives at latent resolution (48×48 for a 384px image) — an 8-pixel fuzziness at region edges that dedicated inpainting models fix by also feeding the mask to the U-Net as extra input channels.

Results

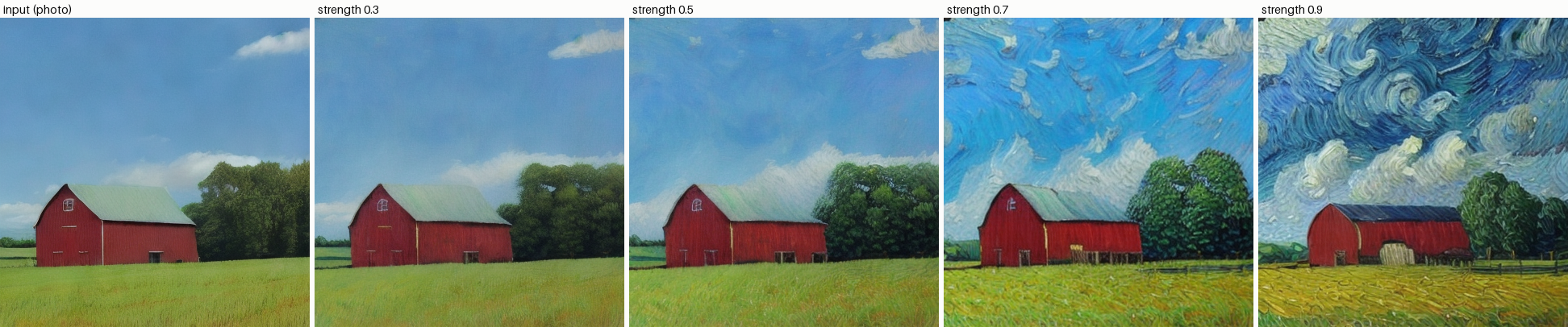

Strength sweep. A generated "photo" of a barn re-rendered toward "a van gogh style oil painting…" at strengths 0.3 → 0.9. Composition survives at 0.3–0.5 while the medium changes; by 0.9 the model keeps only a loose memory of the layout. This one image row is the whole strength parameter:

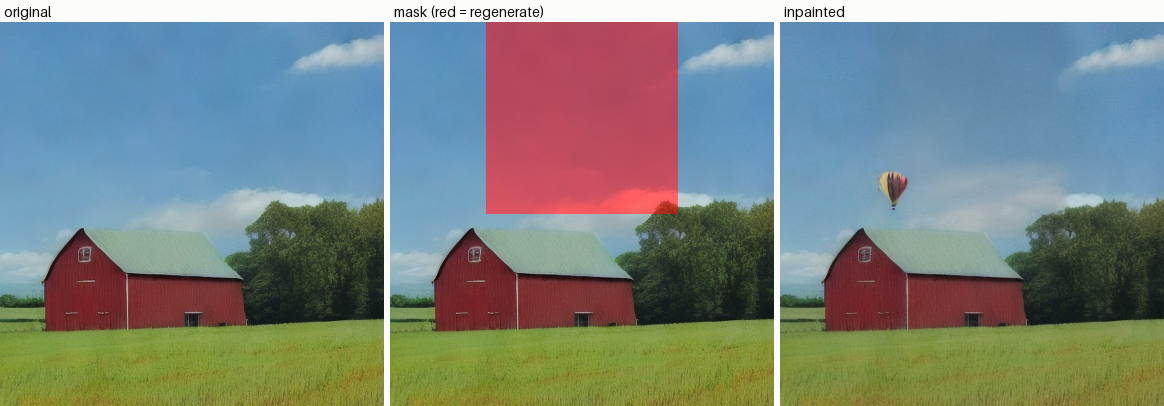

Inpainting. The masked sky region (shown red) is regenerated to ask for a hot-air balloon; the barn and field outside the mask are byte-identical latents to the original:

Things to try

• Set strength 0.5 but leave the prompt identical to the base image's — img2img becomes a "re-roll the details" button.
• Feed the inpainting loop a mask of all ones. You have proven inpainting strictly generalizes txt2img.
• Reverse the mask sense: keep the hole, regenerate the surroundings — that is exactly the Outpainting project, which imports this file.
