Train a Latent DDPM

ELI5 (Explain Like I'm 5)

• The Big Idea: Generating high-resolution images in pixel space is extremely expensive because the model has to process millions of pixels at every step. In this project, we compress the images first using a smart encoder (VAE) into a tiny, packed grid called "latents" (like compressing a photo into a ZIP file). We then train the diffusion model entirely inside this tiny space, making it much faster, and decompress it back to pixels at the end.
• Analogy: Imagine you want to mail a giant LEGO castle to a friend. Instead of shipping the fully built castle in a massive, expensive box, you disassemble it into a few bags of bricks, mail those in a small envelope, and let your friend build the castle using the instructions when it arrives.
• Example: Running a diffusion model on 512x512 pixels takes a lot of computer power. But if we compress the image by 8x into a 64x64 latent space, the model only has to process 1/64th of the data, speeding up the generation process by over 20 times.

Key Insight

This project is a miniature of how Stable Diffusion actually works: instead of running DDPM directly on pixels, you first compress each CIFAR-10 image with an 8× VAE into a tiny 4×4 latent, then train a small U-Net to denoise in that latent grid — the core idea of latent diffusion (LDM). Because the latent has roughly 48× fewer numbers than the pixels, every training and sampling step is dramatically cheaper, and you decode back to pixels only at the very end. Comparing it to a pixel-space DDPM on the same data makes the central lesson concrete: most of diffusion's cost is spent on pixel detail the VAE can reconstruct anyway.

What's in this directory

File	Role
train_latent_ddpm.py	Freeze the Train a VAE for diffusion project's VAE, cache the whole dataset as latents, train the DDPM on MNIST project's U-Net on them
sample_latent.py	Sample in latent space, decode once at the end; measure the latent-vs-pixel cost head-to-head

The recorded demo diffuses MNIST in the Train a VAE for diffusion project's 8×8×4 latent space (the guide's CIFAR-10 framing needs only a different dataset and VAE — the loop is identical). Note what does NOT appear anywhere in the training script: images. After the one-time encoding pass, diffusion never touches a pixel.

python train_latent_ddpm.py     # ~1 min of training on CPU
python sample_latent.py

The recipe, step by step

1. Freeze the VAE. Loaded from the Train a VAE for diffusion project's checkpoint, gradients off. The frozen-VAE recipe is what makes LDM modular: the compressor and the generator never train together.
2. Encode the dataset once, cache to disk. 60k images become a (60000, 4, 8, 8) tensor. Production LDM training does exactly this — latent caching is why SD trains without paying VAE-encoder cost per step.
3. Multiply by the scale factor measured in the Train a VAE for diffusion project — the 0.18215 move. The diffusion schedule assumes unit-variance data; this line is where that assumption is made true. (Delete it and retrain to see the failure mode the guide warns fine-tuners about.)
4. Train the same U-Net class as the DDPM on MNIST project, unchanged except for its constructor arguments: 4 input channels, 8×8 resolution. The diffusion math (the DDPM on MNIST project's GaussianDiffusion) is imported as-is — latent diffusion is ordinary diffusion pointed at different tensors.
5. Sample in latent space, decode once. The VAE decoder runs exactly one time per batch of images, after the entire 300-step loop.

Results

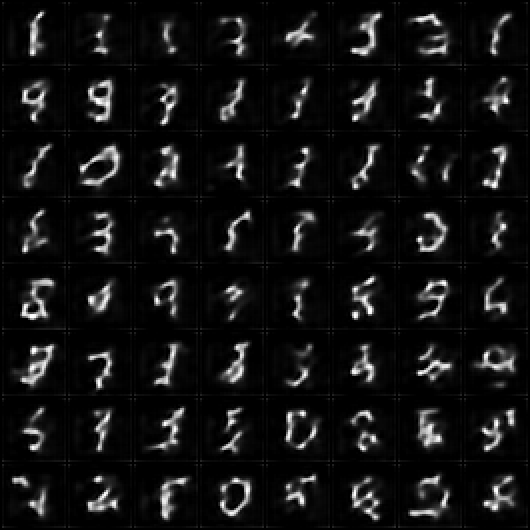

Samples — 64 digits generated entirely in 8×8×4 latent space, decoded at the end:

The cost story, measured on this machine (outputs/speed_comparison.csv, recorded run): 3.1× fewer dimensions per example became a 6.2× faster training step (167 ms → 27 ms at batch 64 — better than linear, because attention and the deep levels shrink faster than the pixel count). The recorded model trained for 4 000 steps — 4× the DDPM on MNIST project's step budget in comparable wall-clock time (~4 min) — and the full 300-step sampling loop for 64 images ran in under 3 seconds, with the single VAE decode adding milliseconds. At 512×512 with an 8× VAE the same arithmetic is the guide's headline ~48× — this is that effect, small enough to measure on a laptop.

Look closely at the samples and you can also see the trade's cost: strokes are slightly soft, because every sample passes through the VAE decoder — the ceiling below. Latent diffusion buys speed with whatever the compressor loses.

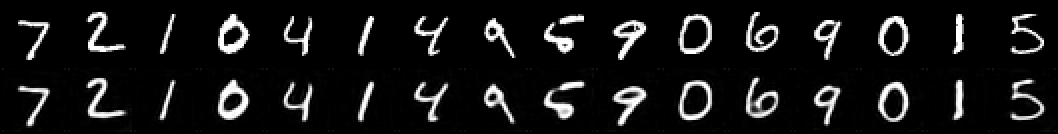

The ceiling — real digits (top) against their VAE round-trips (bottom). The latent DDPM can never look better than this row of reconstructions, no matter how long it trains. That inequality — generator quality ≤ compressor quality — is why the Train a VAE for diffusion project exists as its own project:

Things to try

• Skip step 3 (scale factor) and retrain: the schedule's terminal SNR no longer matches pure noise, and samples degrade — the most common LDM fine-tuning bug, reproduced on purpose.
• Sample with the DDIM sampler project's DDIM or the Higher-order sampler project's Heun in latent space: the two speedups (latent + fewer steps) multiply.
• Recompute the cost table at CIFAR scale (the DDPM on CIFAR-10 project's config vs a 16×16×4 latent U-Net) and watch the gap widen with resolution.
